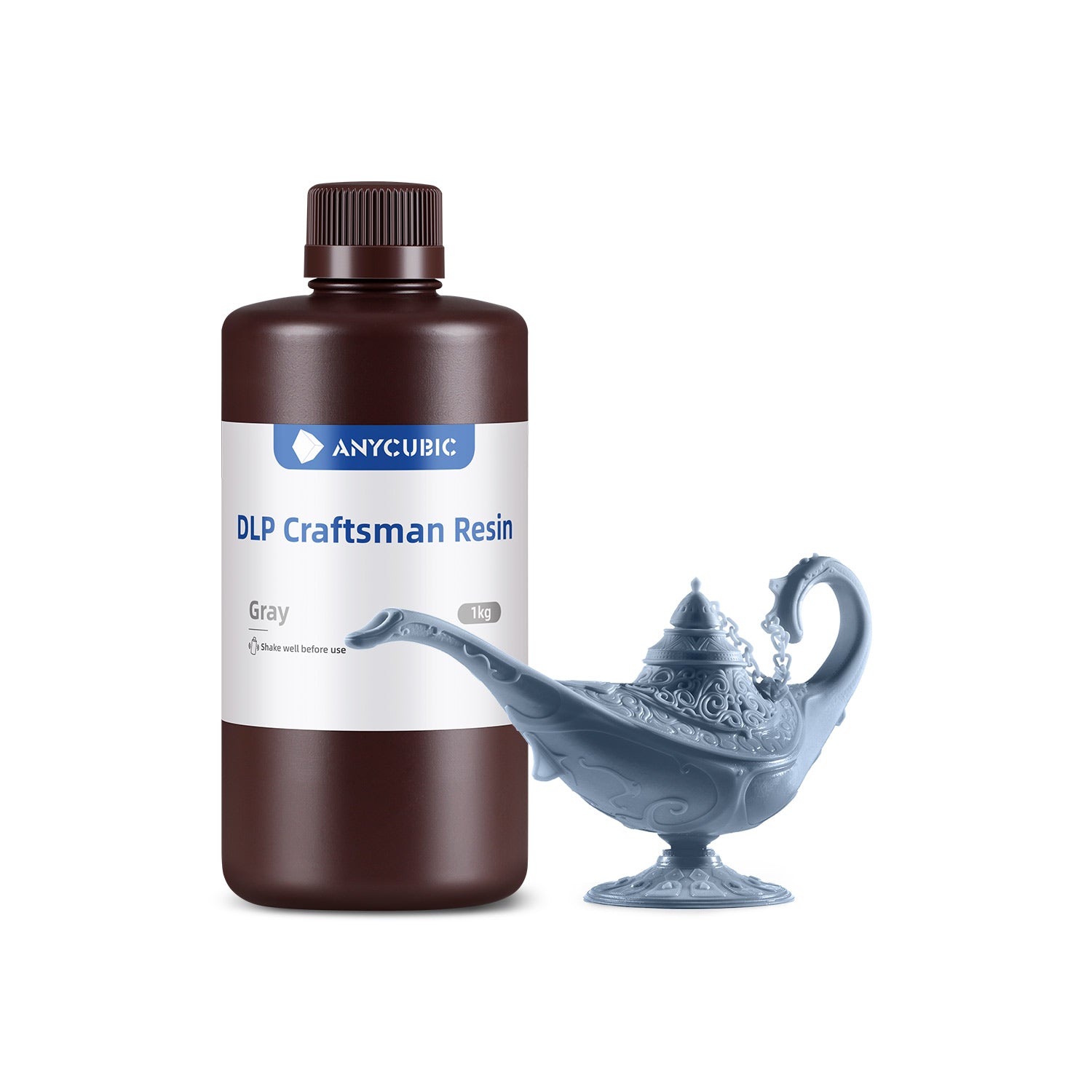

Color: Gray
Size: 1KG
Buy it Now
ANYCUBIC-EU
Estimated Shipping Time
Ships in 24 hours
View More
ANYCUBIC-EU
Payment Methods
American Express Apple Pay Diners ClubDiscoverGoogle Pay JCBMaestroMastercardPayPalUnion PayVisa
ANYCUBIC-EU
Delivery Method
ANYCUBIC-EU ANYCUBIC-EU
ANYCUBIC-EU
Free Express Shipping
ANYCUBIC-EU
14-Day No Reason Return
ANYCUBIC-EU
30-Day After-Sales Guarantee
ANYCUBIC-EU
1-Year Warranty For 3D Printers
ANYCUBIC-EUStandard Resin 10-100KG Deals
Standard Resin 10-100KG Deals
PLA Basic 10-100KG Deals
ANYCUBIC-EUPLA Basic 10-100KG Deals
€42,99
€42,99 €49,99
Features File Download Resin Parameters Printing Parameters Color Type Reviews FAQs
€42,99
€42,99 €49,99
Add to cart
ANYCUBIC-EUANYCUBIC-EU

Anycubic DLP Craftsman Resin

High Accuracy | DLP Exclusive | Long Shelf Life

Specially Developed for DLP 3D Printer

In September 2021, Anycubic Photon Ultra became the first consumer 3D printer with DLP technology in the industry. In 2022, Anycubic made an important leap in DLP technology, Anycubic Photon D2 came out. And this DLP Craftsman Resin is developed to take full advantage of its high-precision printing.

DLP Printing Deserves Better Resin

The precision benefits of DLP technology deserve better resins. When discussing 3D printing, most people focus on the resolution of 3D printers. But experienced makers know that the materials used are as important as the printer in order to make the final results look good.

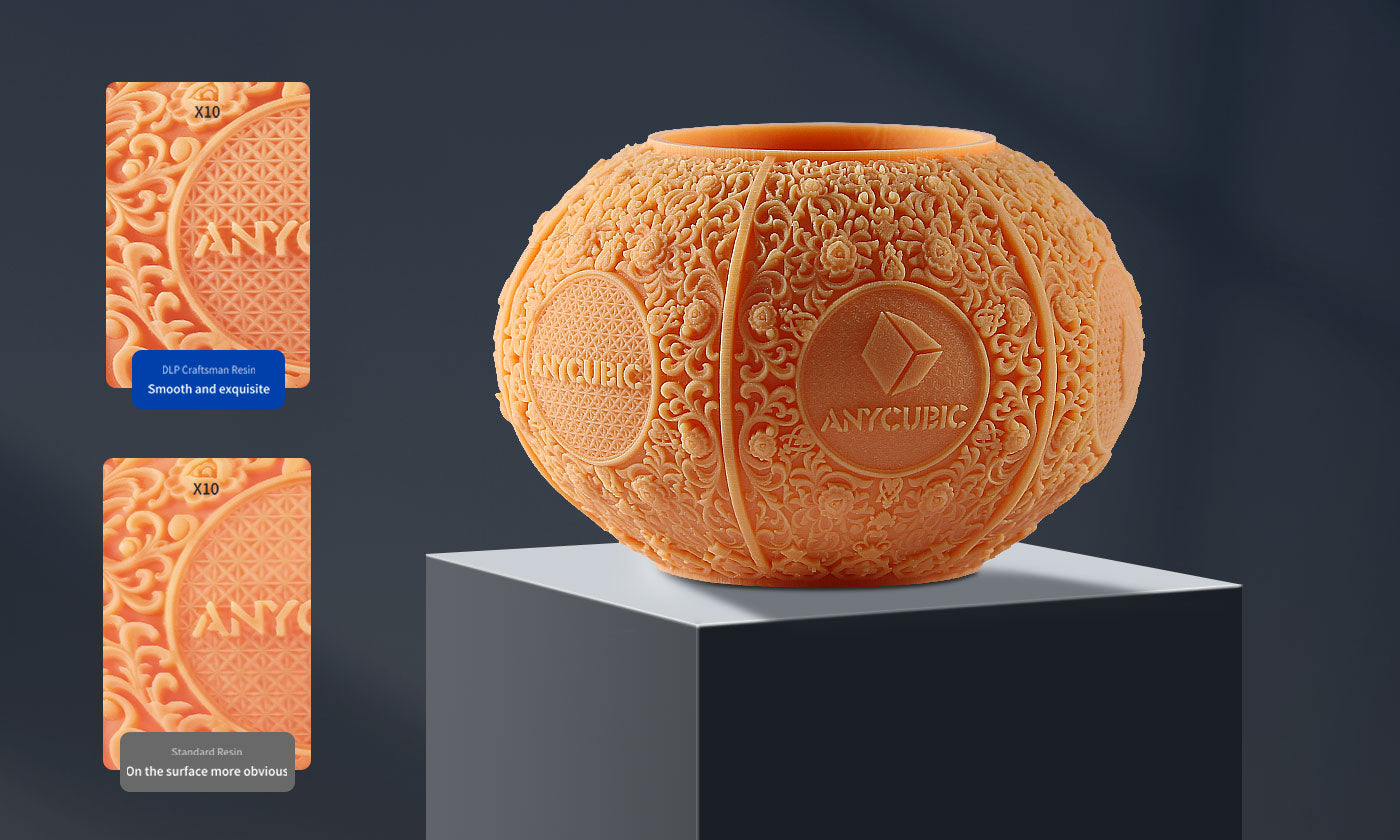

Photosensitive Resin+ NanoCeramic

Anycubic developed this DLP Craftsman resin to help makers obtain more detailed 3D printed items. Nano - scale microcr - ystallineceramic powders are added, which enhances the scattering of light within the resin, making the resin more sensitive to light and curing finer. Ordinary resin--> layer lines DLP Craftsman resin-->smooth and exquisite.

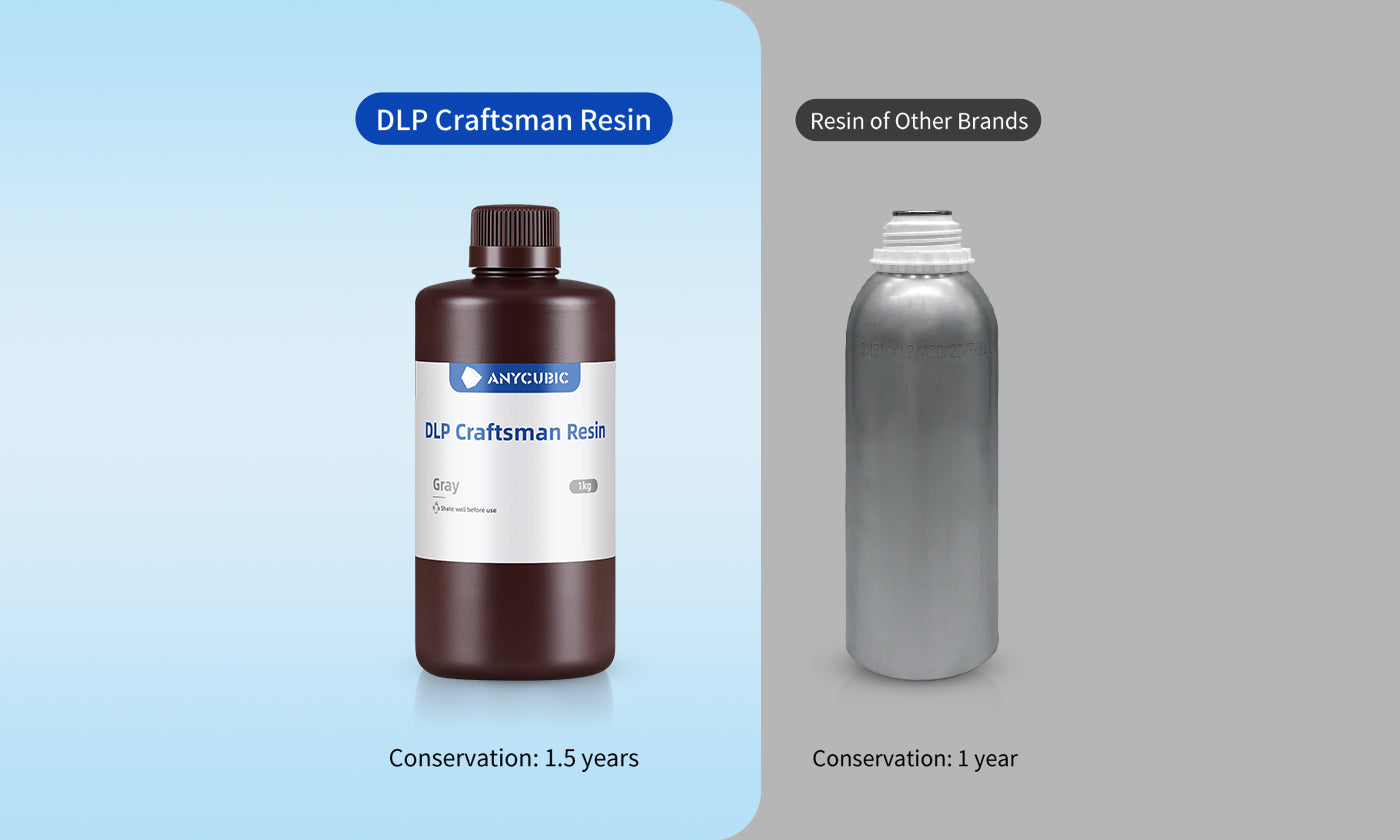

Extra Long Shelf Life

Other resin products on the market have a shelf life of only 1 year. Thanks to the upgrade of formula, the shelf life of Anycubic DLP Craftsman resin is up to one and a half years.

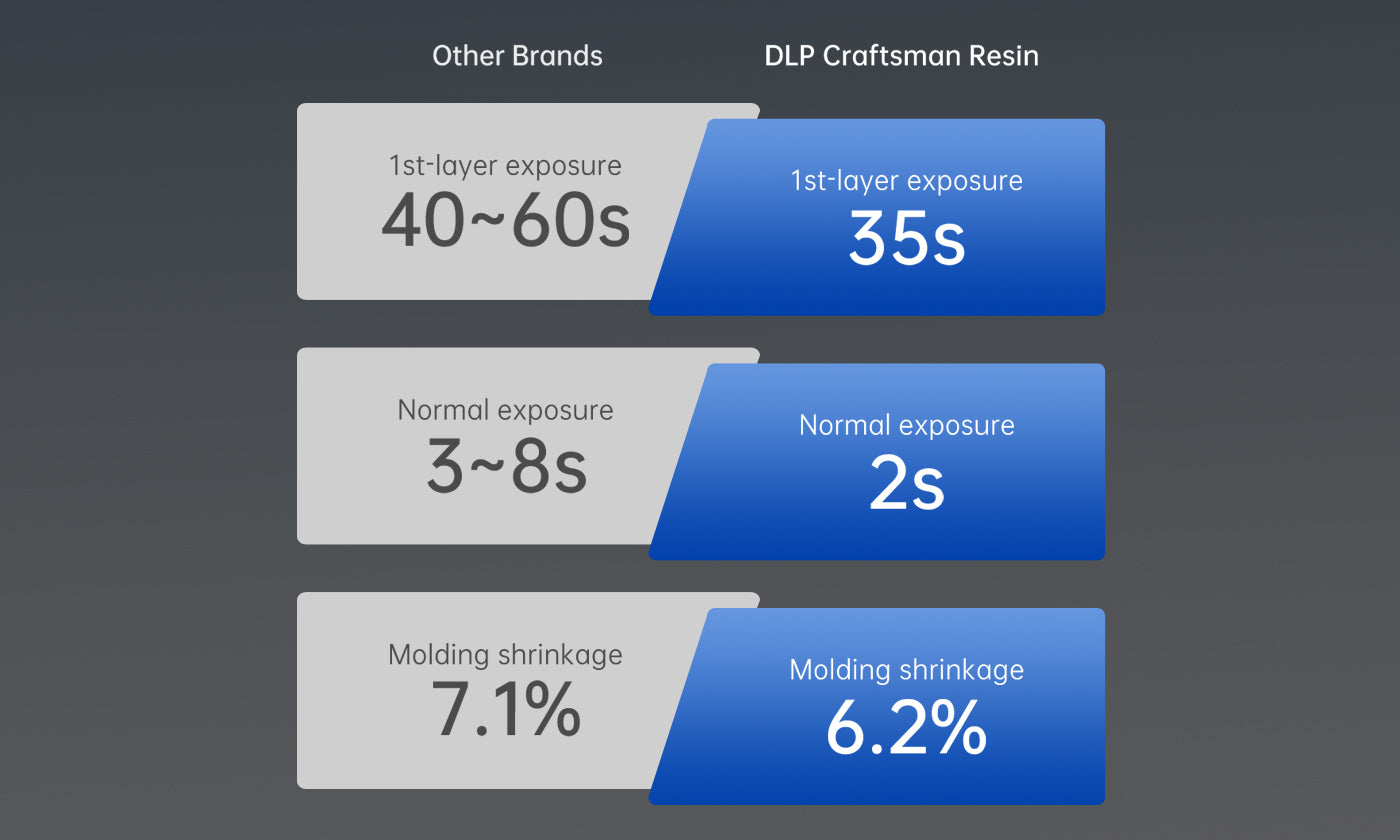

Fast Speed, Low Shrinkage

Also benefited from formula upgrade, Anycubic DLP Craftsman resin not only has high printing accuracy, long shelf life, and fast printing speed, low shrinkage rate. The first exposure time can be as fast as 35 seconds (much faster than 60 seconds of other brands), and the ordinary exposure can be as fast as 2 seconds per layer (much faster than 8 seconds of some competing products), which can save your 3D printing waiting time and significantly improve your work efficiency. Molding shrinkage as low as 3.7%, much less than some competing products of 7.1%. When cooled, thefinished print is not much different from when itwas just printed. What you see is what you get.

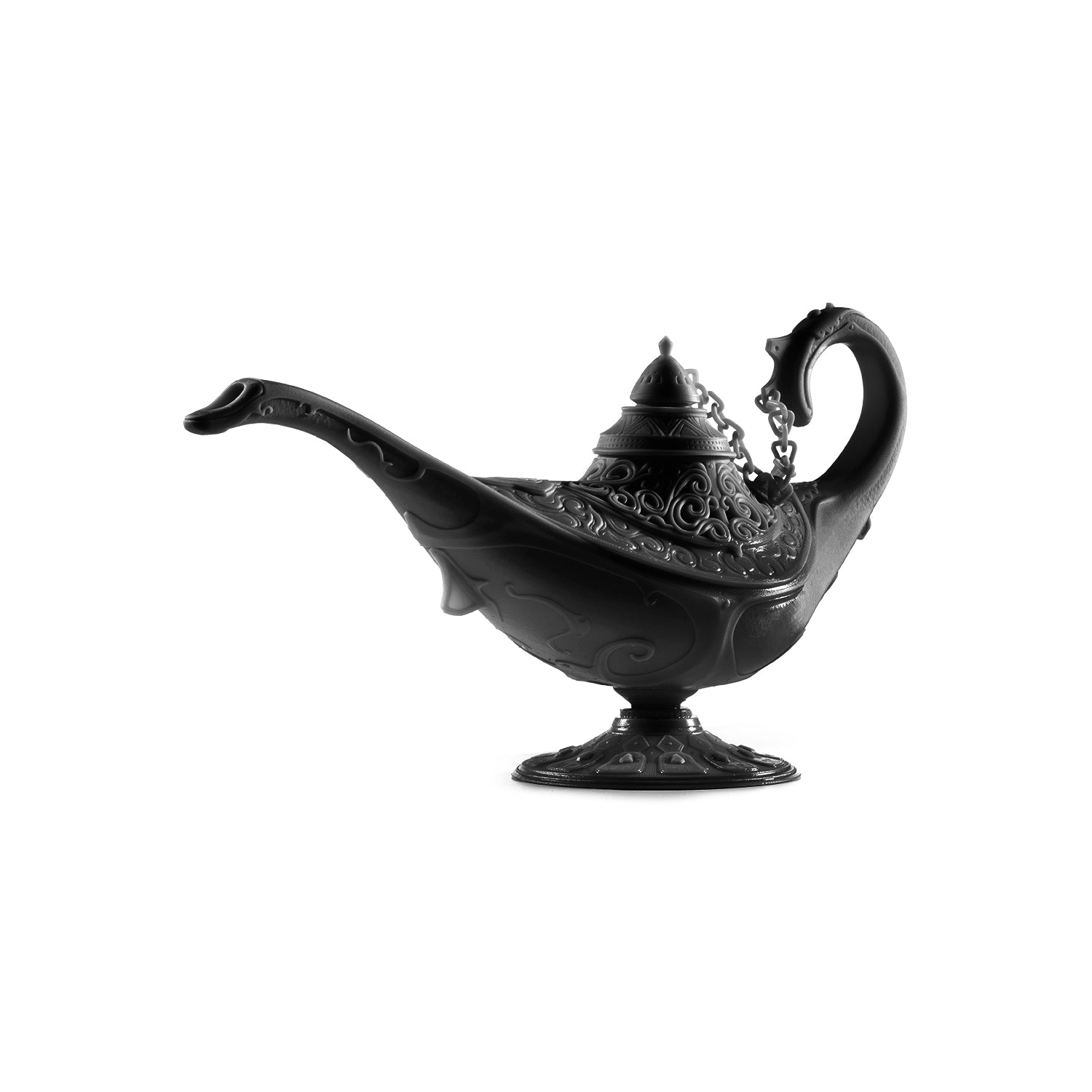

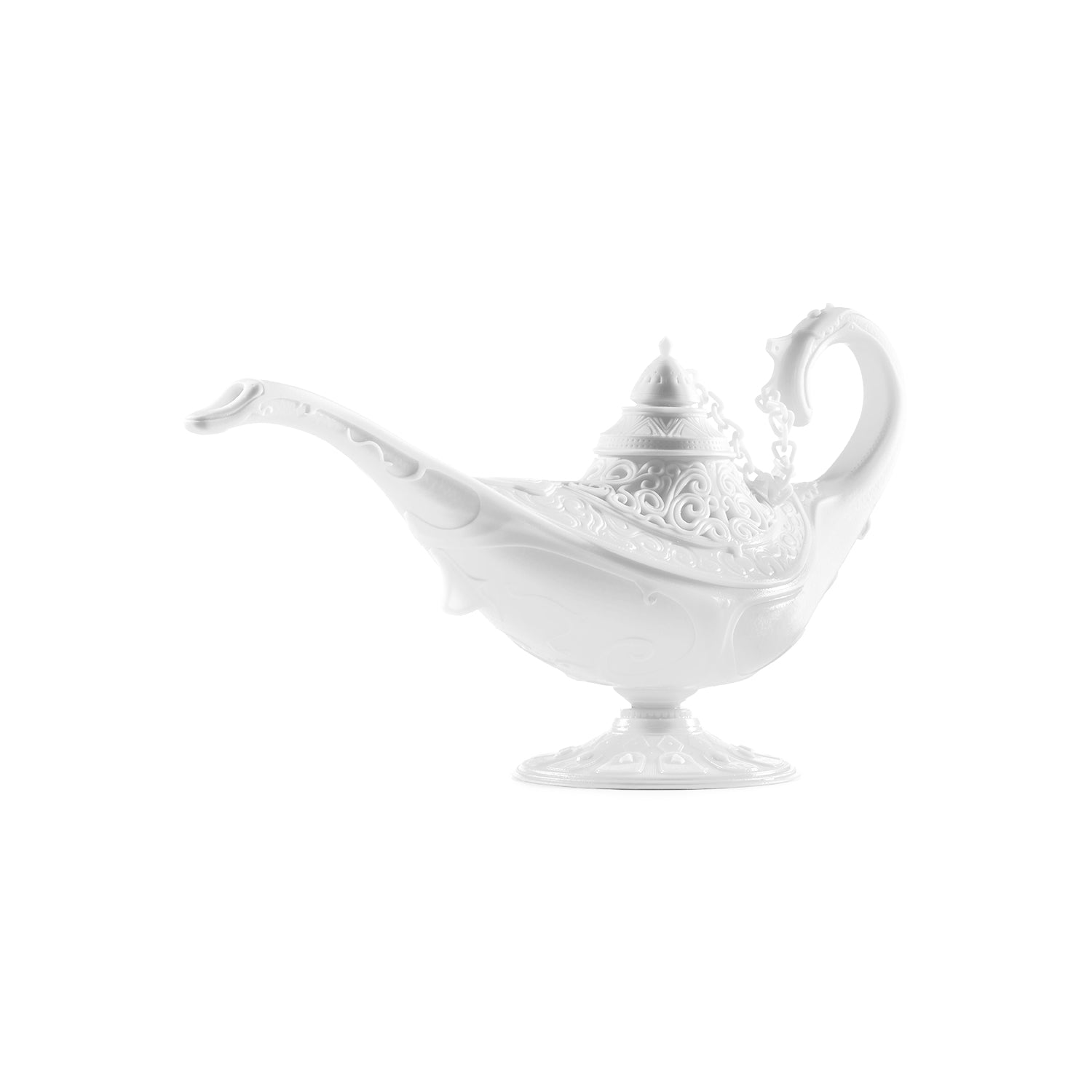

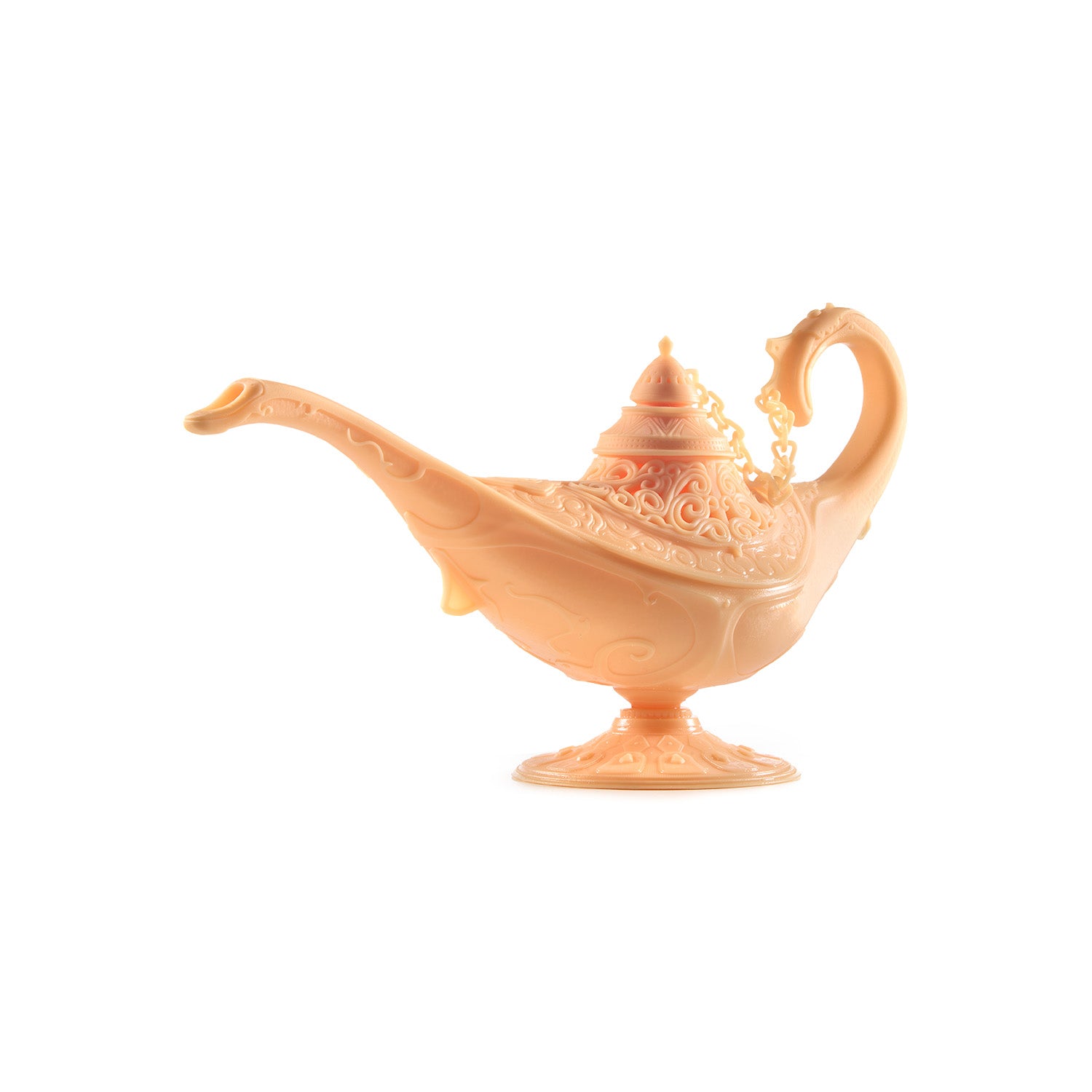

Model Display
ANYCUBIC-EU
ANYCUBIC-EU

File Download

MSDS

Download MSDS File

REACH

Download REACH File

RoHS

Download RoHS File

TDS

Download TDS File

Resin Parameters

UV wavelength365-405 nm
Elongation at break11-14%
Density1.15-1.20 g/cm³
Molding shrinkage4.2-5.5%
Viscosity200-300 mPa·s
Flexural strength50-60 MPa
Flexural modulus1500-1600 MPa
Hardness80-83 HD
Tensile strength32-43 MPa
Young modulus1300-1500 MPa
Bottom exposure time23-40 s
Normal exposure time2-2.5 s
Resin washAlcohol
Shelf life18months

Recommended Printing Parameters

Printer Model Layer Thickness Exposure Time Light-Off Time Bottom Exposure Time Bottom Layers Anti-Aliasing Level Z Lift Distance Z Lift Speed Z Retract  Speed
Photon M3 Premium 0.05 mm 2.5 s 0.5 s 25 s 2 1 8 mm 6 mm/s 6 mm/s
Photon M3 Max 0.05 mm 2 s 2.5  s 35 s 6 1 8 mm 3 mm/s 4 mm/s
Photon M3 Plus 0.05 mm 2 s 0.1 s 23 s 3 1 8 mm 2 mm/s 3 mm/s
Photon M3 0.05 mm 2 s 0.5 s 23 s 4 1 6 mm 3 mm/s 4 mm/s
Photon D2 0.05 mm 2.5 s 1 s 28 s 5 16 5 mm 2 mm/s 3 mm/s
Photon Ultra 0.05 mm 2 s 1 s 35 s 4 4 6 mm 5 mm/s 2 mm/s
Photon Mono X 6K 0.05 mm 2.5 s 0.5 s 40 s 8 1 8 mm 2 mm/s 3 mm/s
Photon Mono 4K 0.05 mm 2 s 0.5 s 40 s 6 1 6 mm 4 mm/s 6 mm/s
Photon Mono X 0.05 mm 2 s 0.5 s 30 s 8 1 8 mm 4 mm/s 4 mm/s
Photon Mono 0.05 mm 2.5 s 0.5 s 40 s 6 1 6 mm 4 mm/s 6 mm/s

Color Type

ColorHex Color ValueColor Display

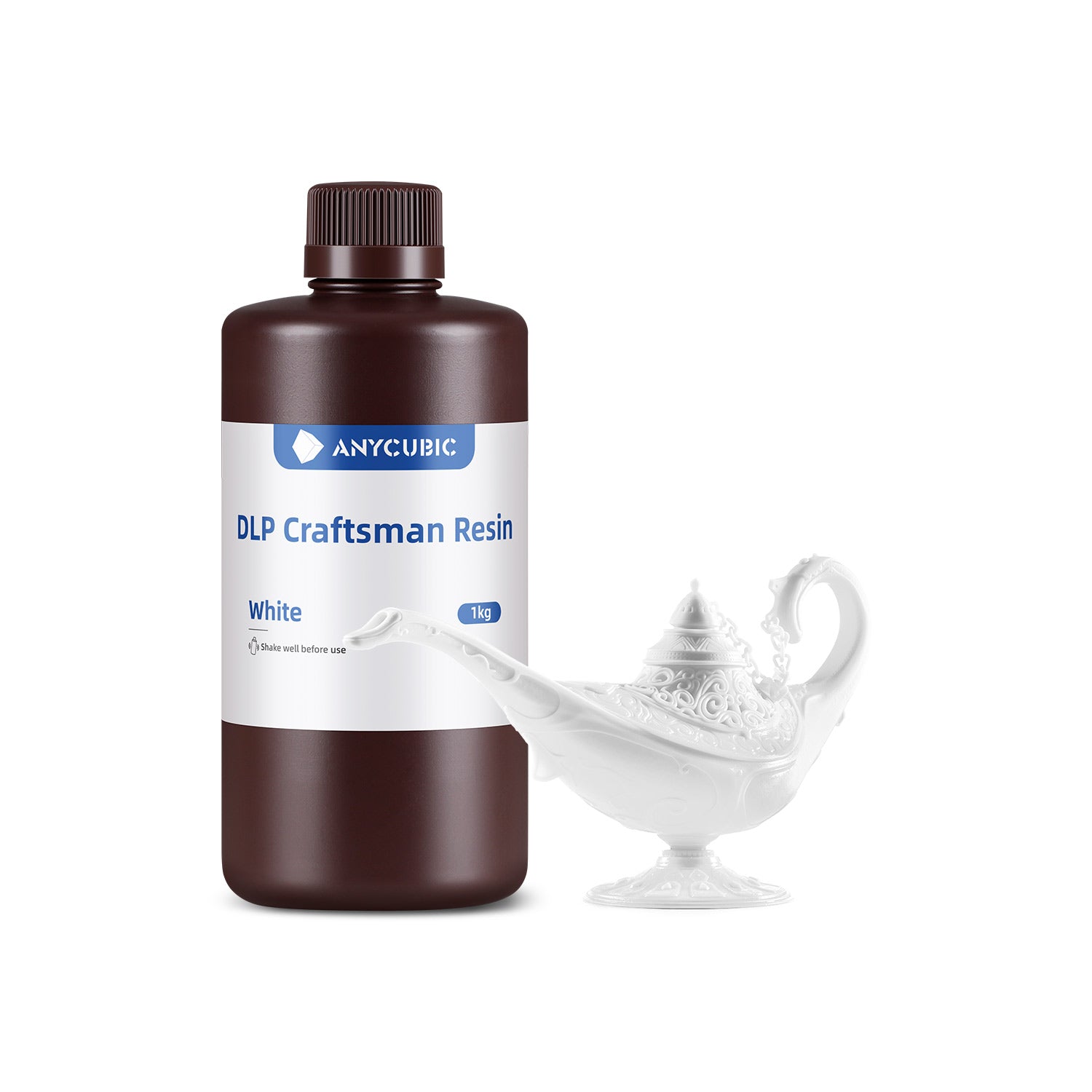

White#EFF0F1
Grey#7E93A7
Black#212721
Beige#FCC89B

Instructions for Use

(1) Before use:
Shake the liquid resin before use; Clean the resin tank and the molding platform to keep the bottom of the resin tank in light transmission.

(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements; Select the correct print parameters and settings for printing.

(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonal pliers, tweezers, containers, gloves; ethanol(≥95%), lactate or isopropyl alcohol cleaning solution;

(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade;
B. Submerge the model in the cleaning solution, rinsed or ultrasonically washed, then taken out and drained; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C.Proper processing, such as removing support, polishing, coloring, etc.

Precautions

The ideal condition for storing uncured resin is a cool, dark place at room temperature and protect from light to avoid high temperature or sunlight.

Suggested operating temperature is 18-35°C, and a low temperature may affect the printing effect, thus, the resin can be properly preheated before use (not more than 60°C).

If the resin pigment settles, it can be used after stirring or shaking.

In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.

To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.

To ensure the ideal performance of the curable material, it is necessary to control the intensity and time of the light source after curing. Therefore, the following steps are recommended:
(1) The intensity of mercury lamp or Led light source is 5-10mW/㎡, and the duration is no more than 1 hour (self-regulation);
(2)The exposure time in the sun (summer) is around 1 hour;
(3) Proximity or long-term exposure under strong light sources such as high-power high-pressure mercury lamps is prohibited.
(4) lt is recommended to print in a dark room or be covered with a lid while printing as resin is a photosensitive
material.

Ps: Material properties will vary depending on the molding equipment, post-curing method and testing equipment. For safety information, please refer to the MSDS of this product. lf you encounter any problems while using, please feel free to contact us.

FAQs

What models are suitable for printing with DLP Craftsman Resin?

DLP Craftsman Resin is perfect for printing animation and game action figures with high detail requirements, jewelry prototypes, silicone molded parts, small batches of precision accessories, and precision architectural models.

Does it have a strong odor? What can be used to clean and cure the models?

DLP Craftsman Resin has a slight odor and can be cleaned using isopropyl alcohol. A Wash & Cure Machine is recommended for curing.

Where can I find the recommended printing parameters for Anycubic's printers when using DLP Craftsman Resin?

You can view the recommended printing parameters on this details page. If you do not find the results you want, please contact our support team for answers.

Where can I download the MSDS file?

Click here to download the MSDS of the resin.

If I buy 3KG of resin, will I receive a 3KG bottle of resin?

When you purchase 3KG of resin, you will receive three 1KG bottles, not one single 3KG bottle. This applies to other quantities as well.

Where can I download the model for free?

Click here to download the free model.

What should I do if my model keeps failing to print?

If you are unable to print or printing fails, please contact our support team for answers.

What should I do if I receive resin that is leaking?

If your resin is leaking, it might have been damaged during transportation. Please take pictures of the product you received and contact our customer support team. They will assist you in resolving the issue.
