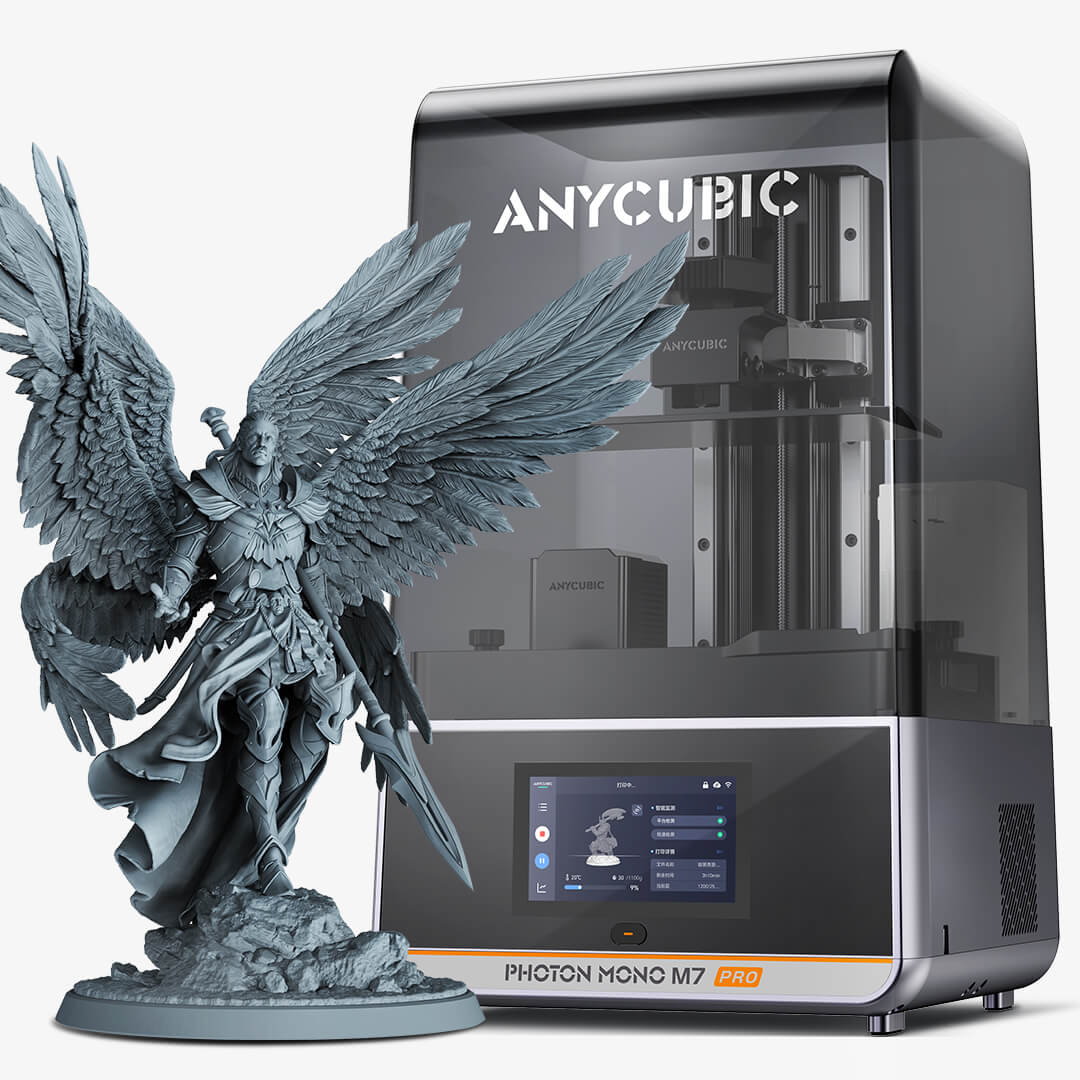

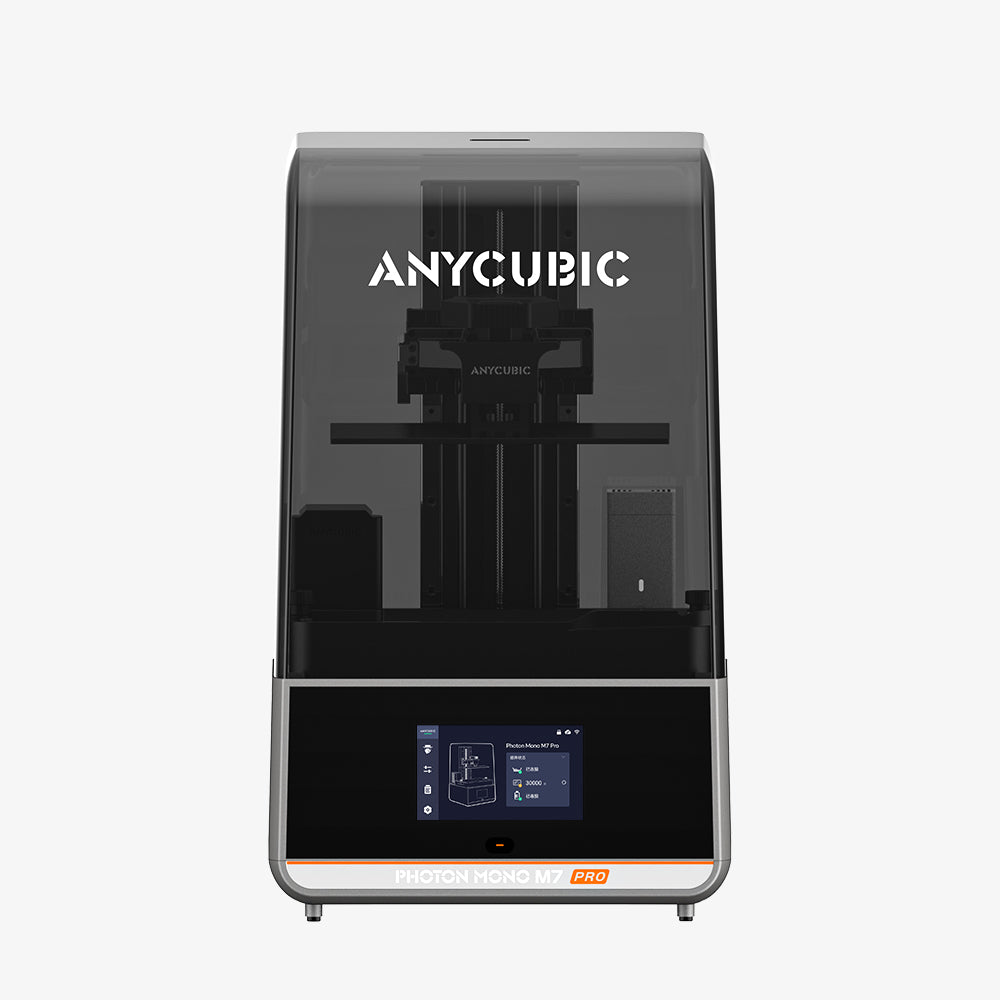

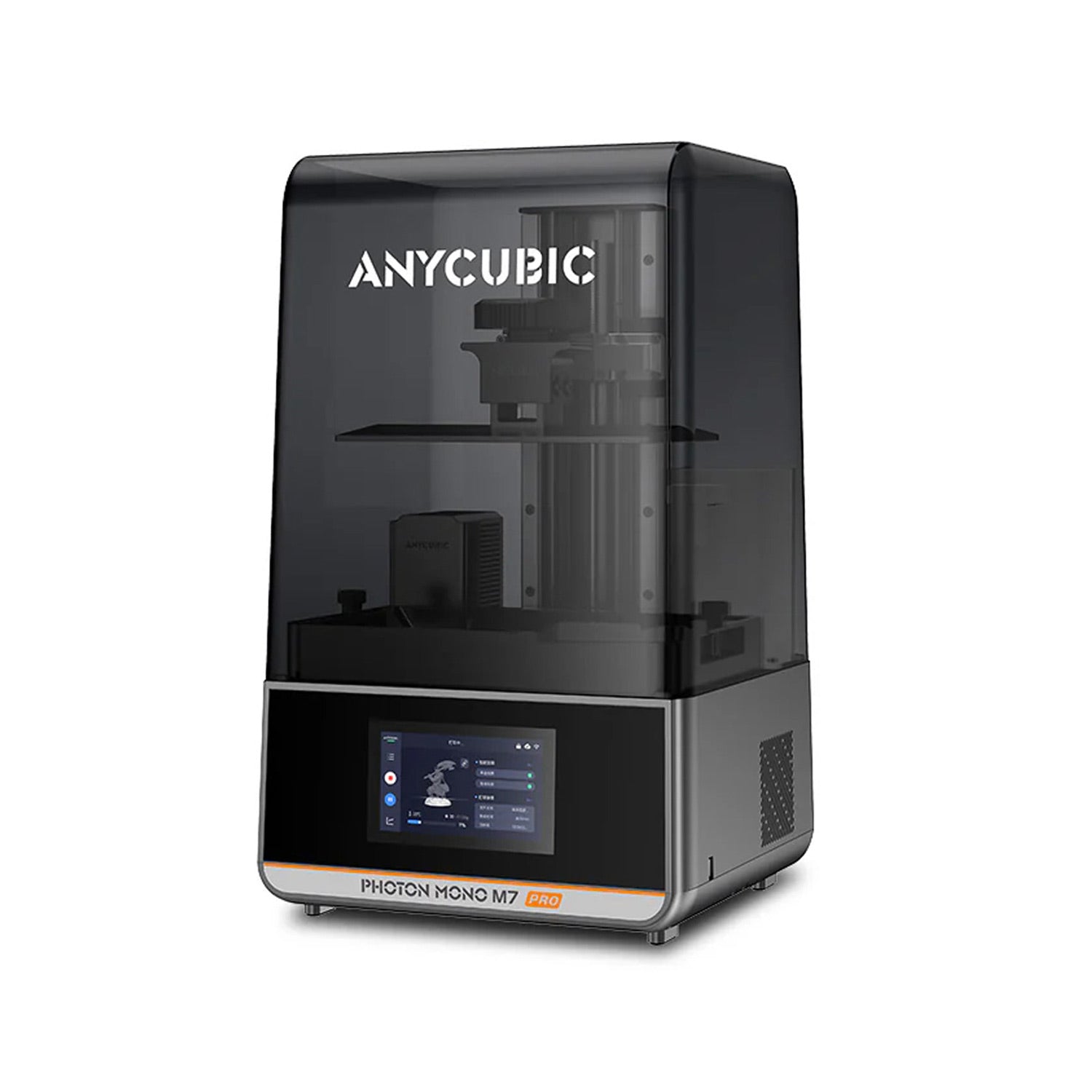

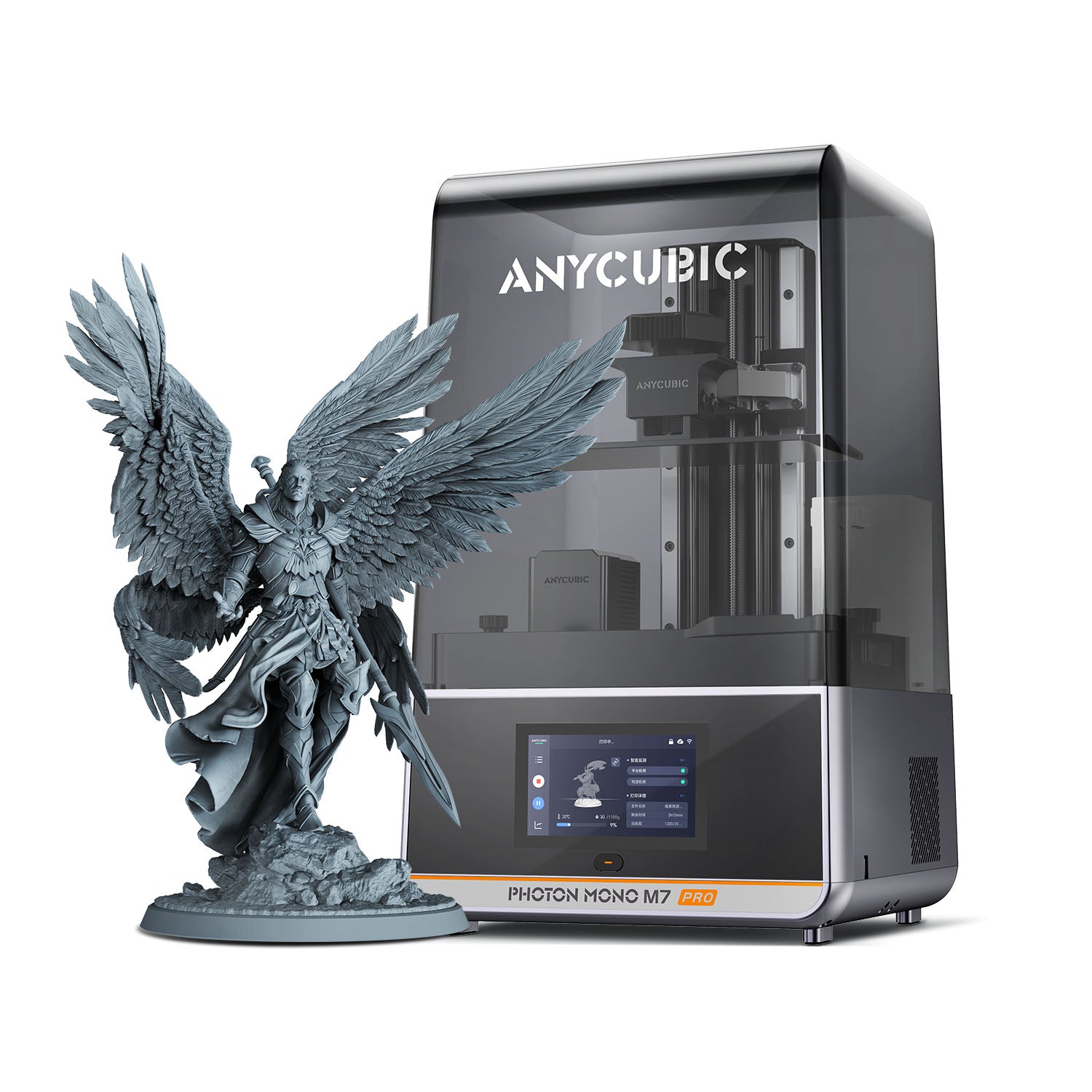

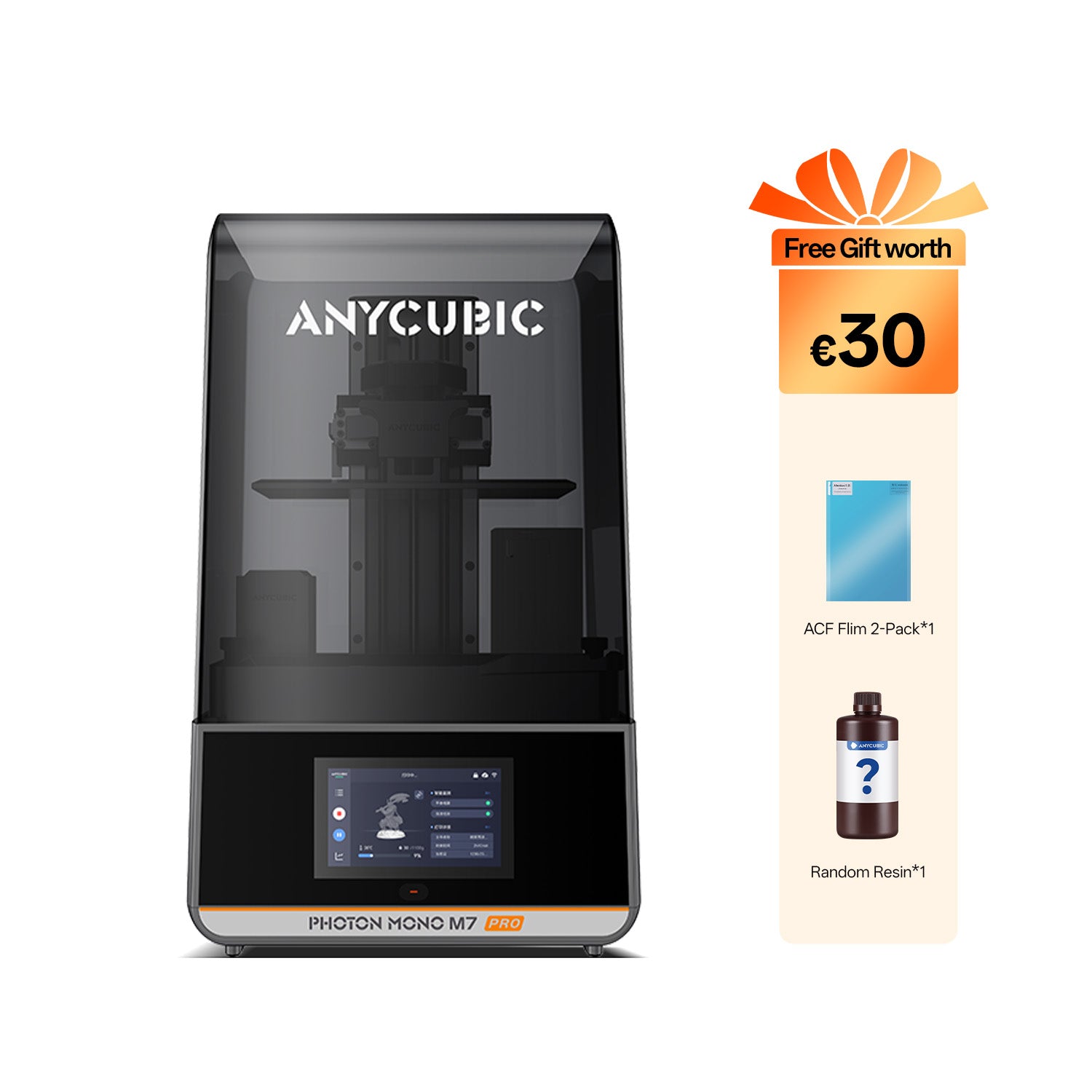

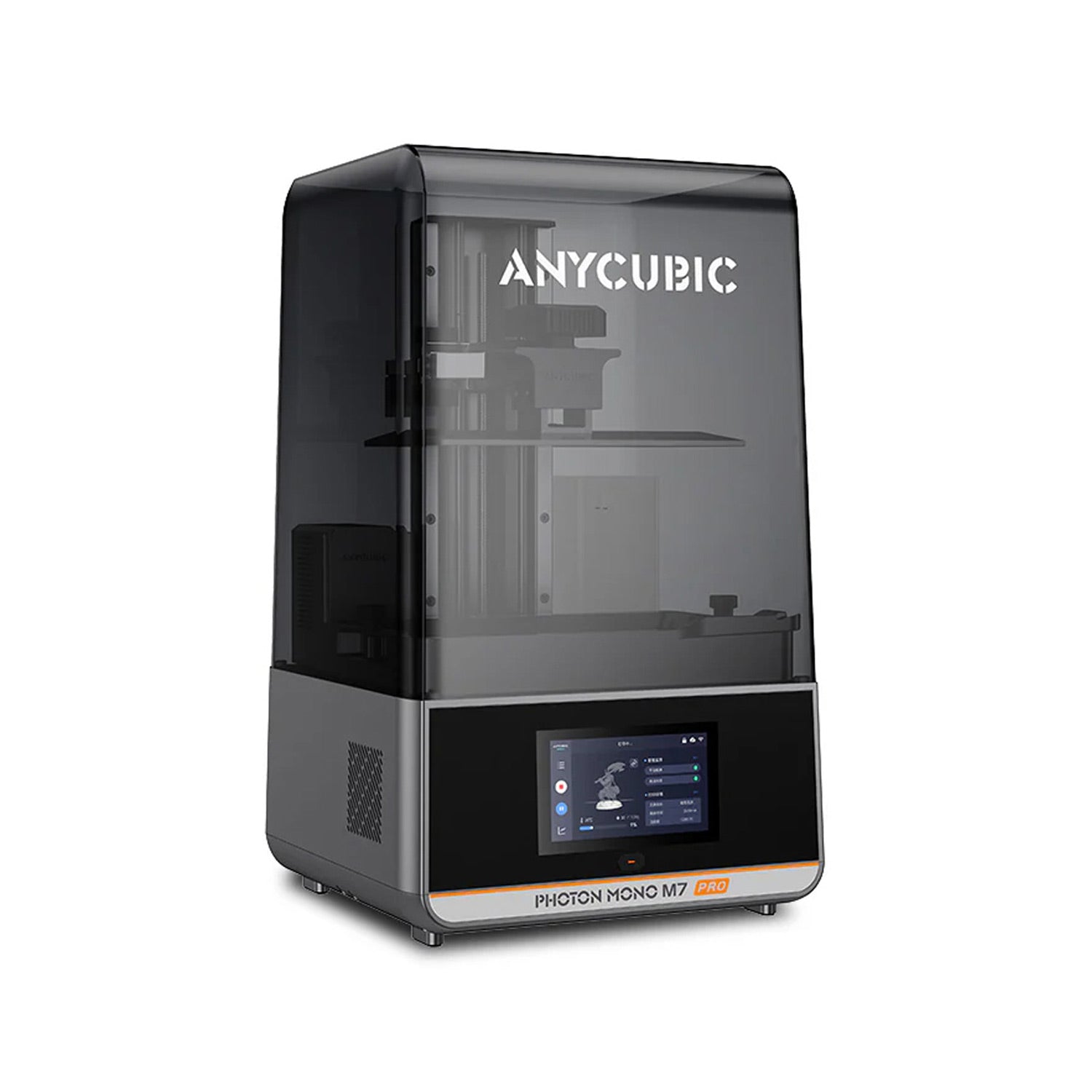

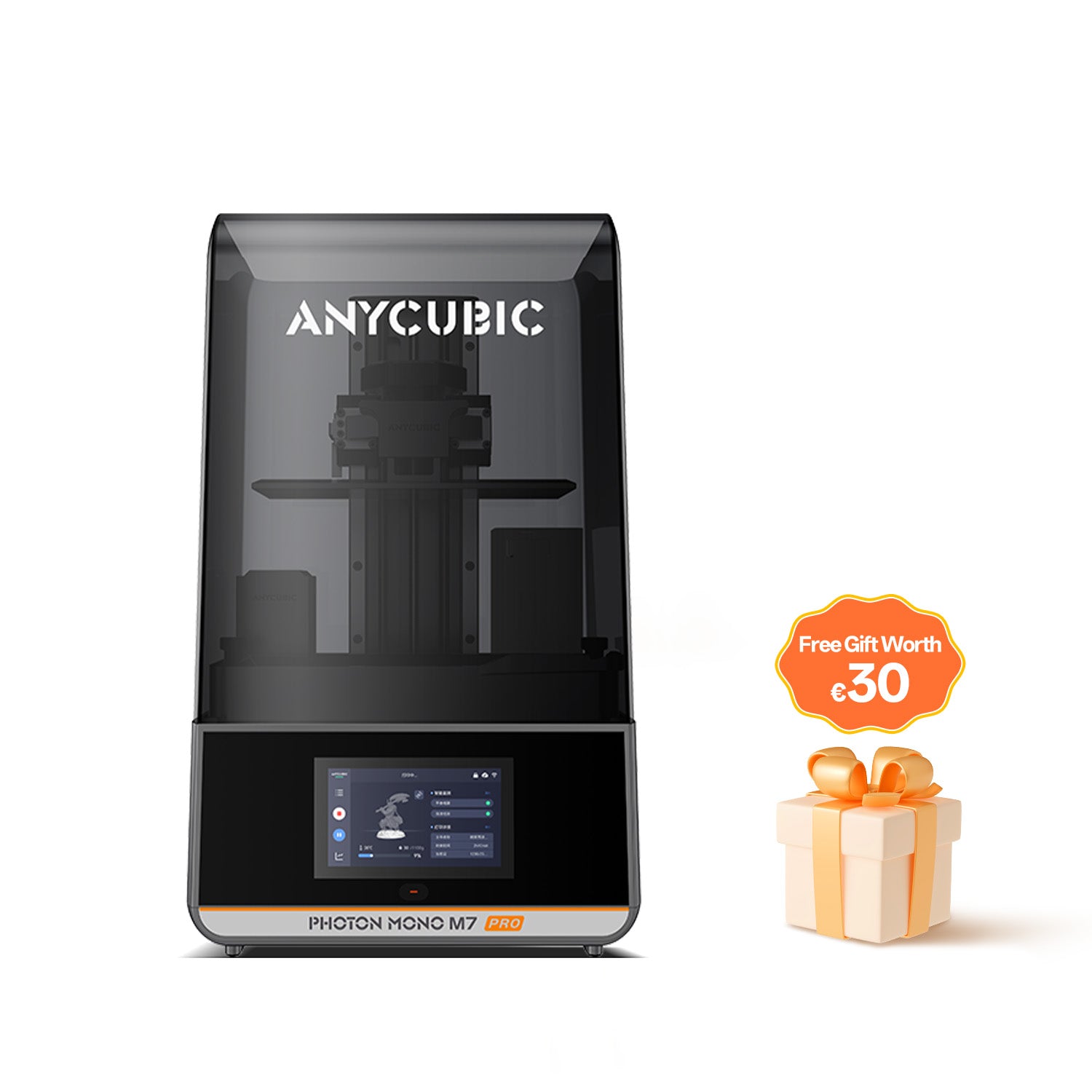

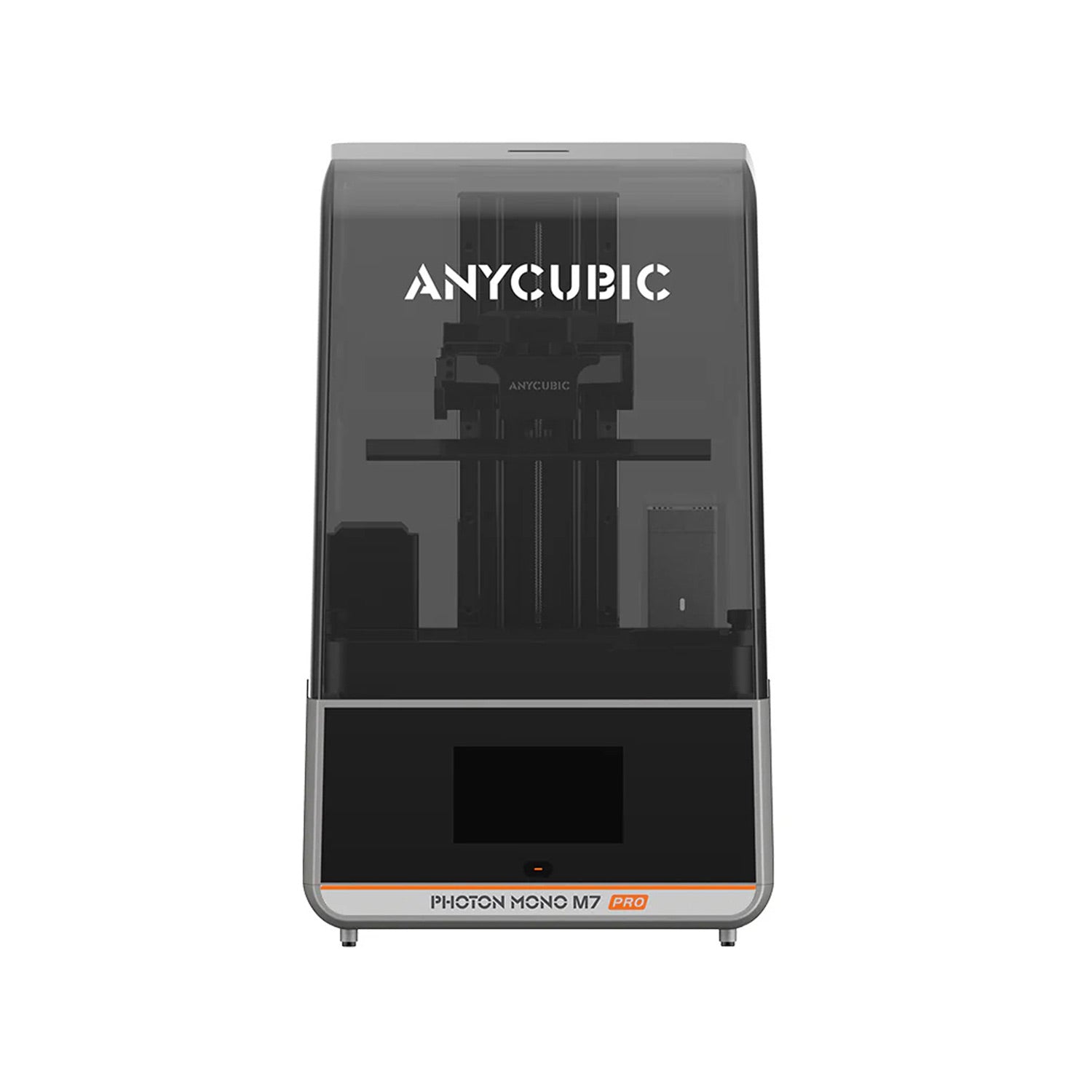

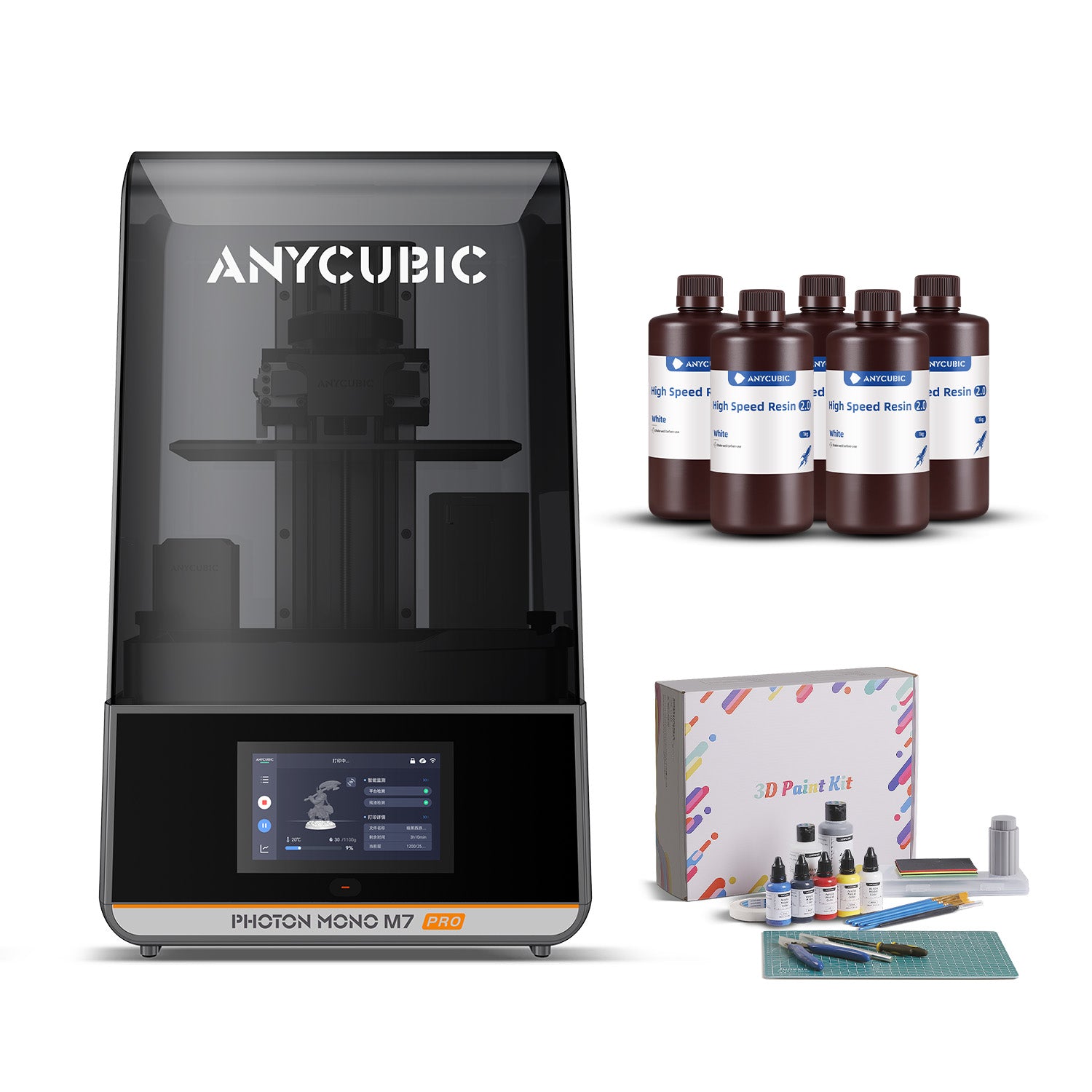

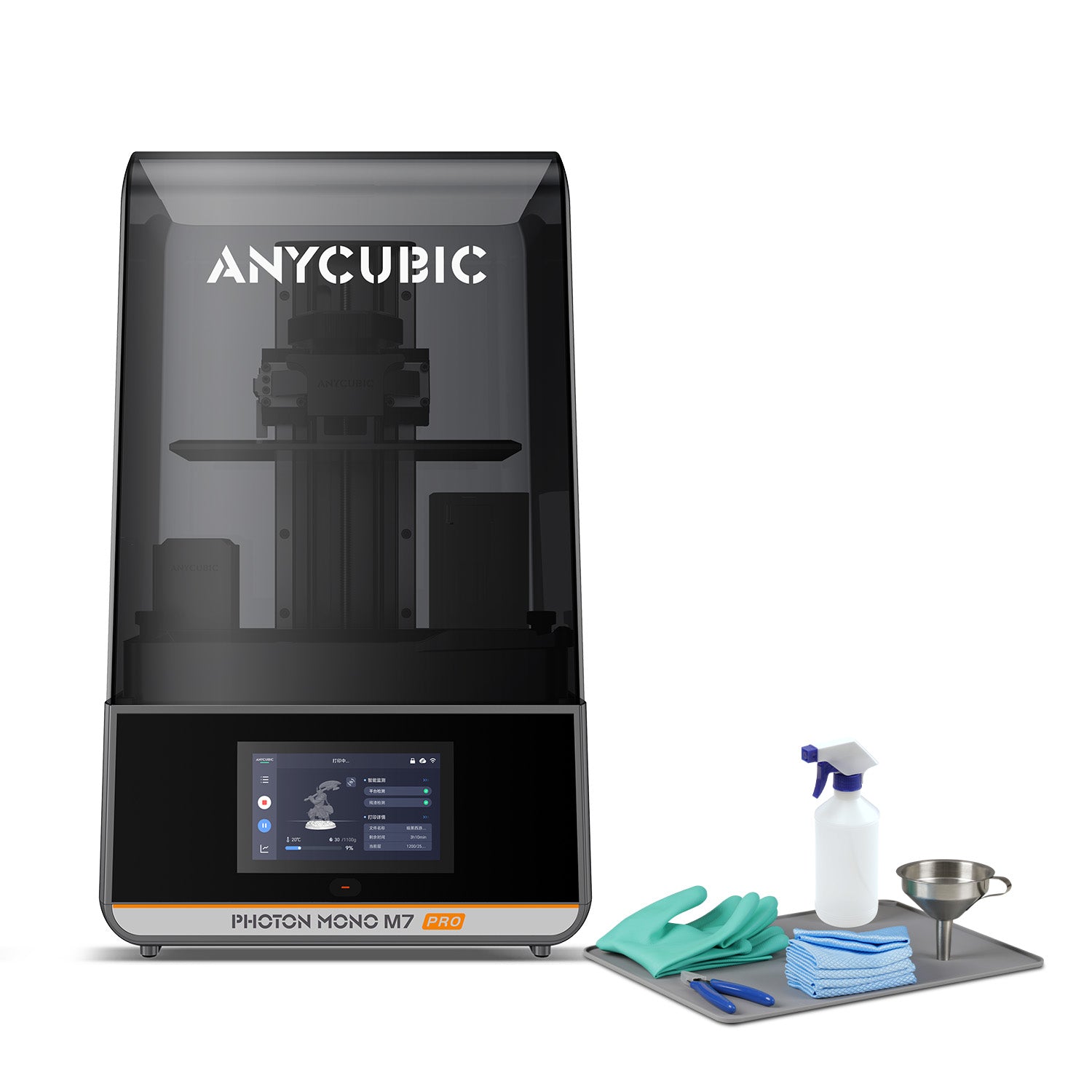

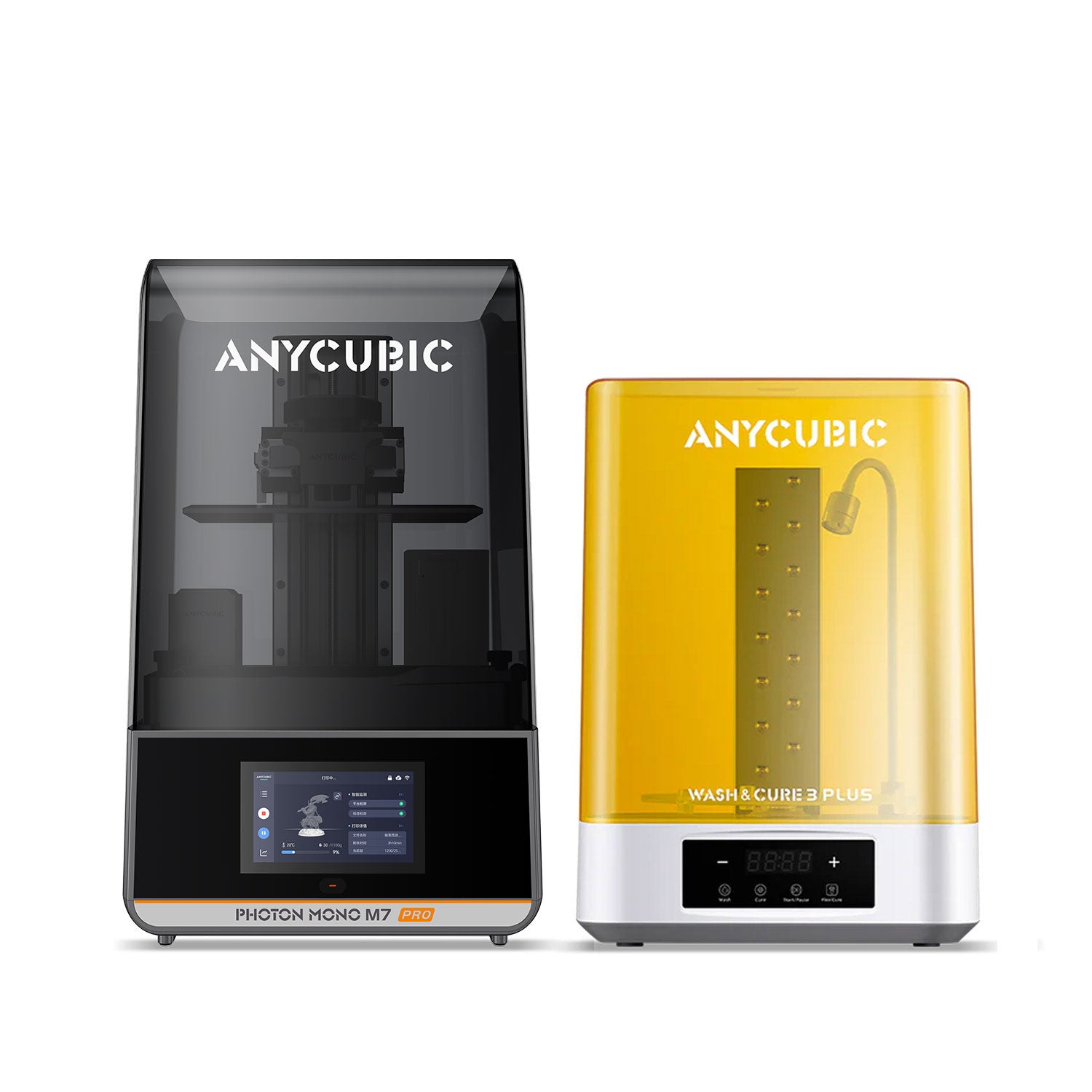

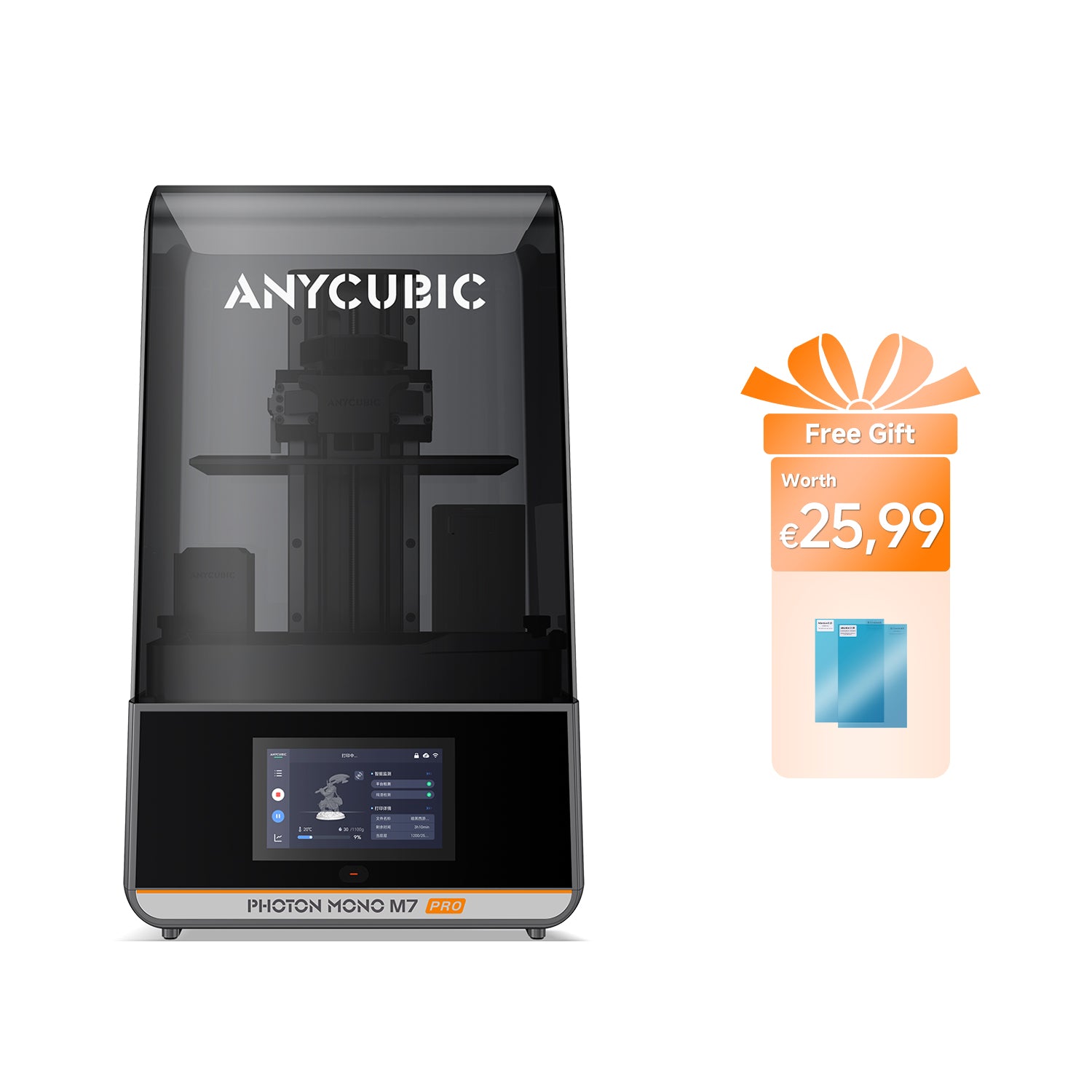

Anycubic Photon Mono M7 Pro

€429,00
€429,00 €669,00
Save €240,00

Product Features

● 170mm/h with High-speed Resin
● 10.1'', 14K (13320 * 5120) LighTurbo 3.0 (COB+Fresnel Lens)
● Auto-Adaptive Technology Control Heating
● Auto Resin Refill, Withdrawal
● Intelligent Workflow-Assist Printing

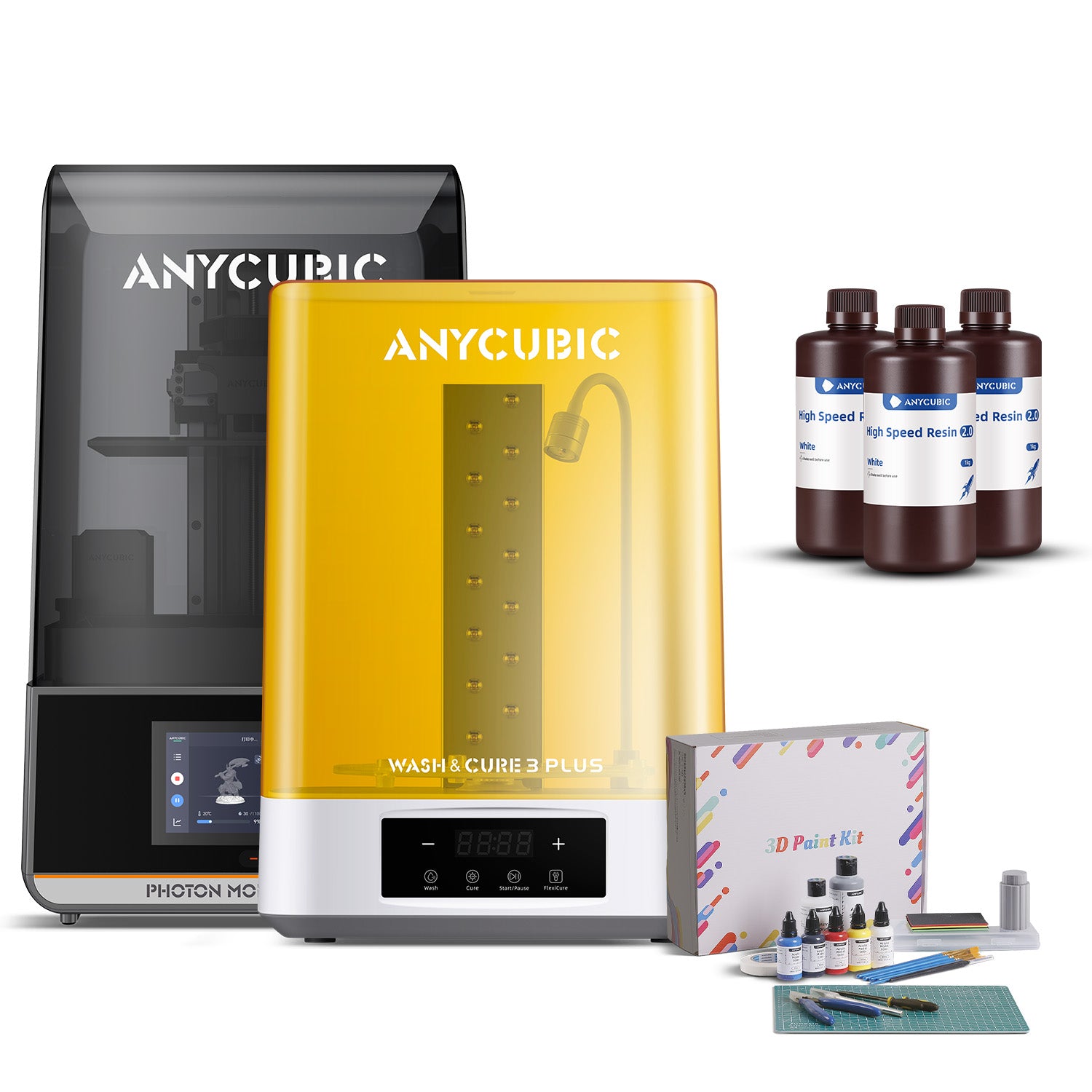

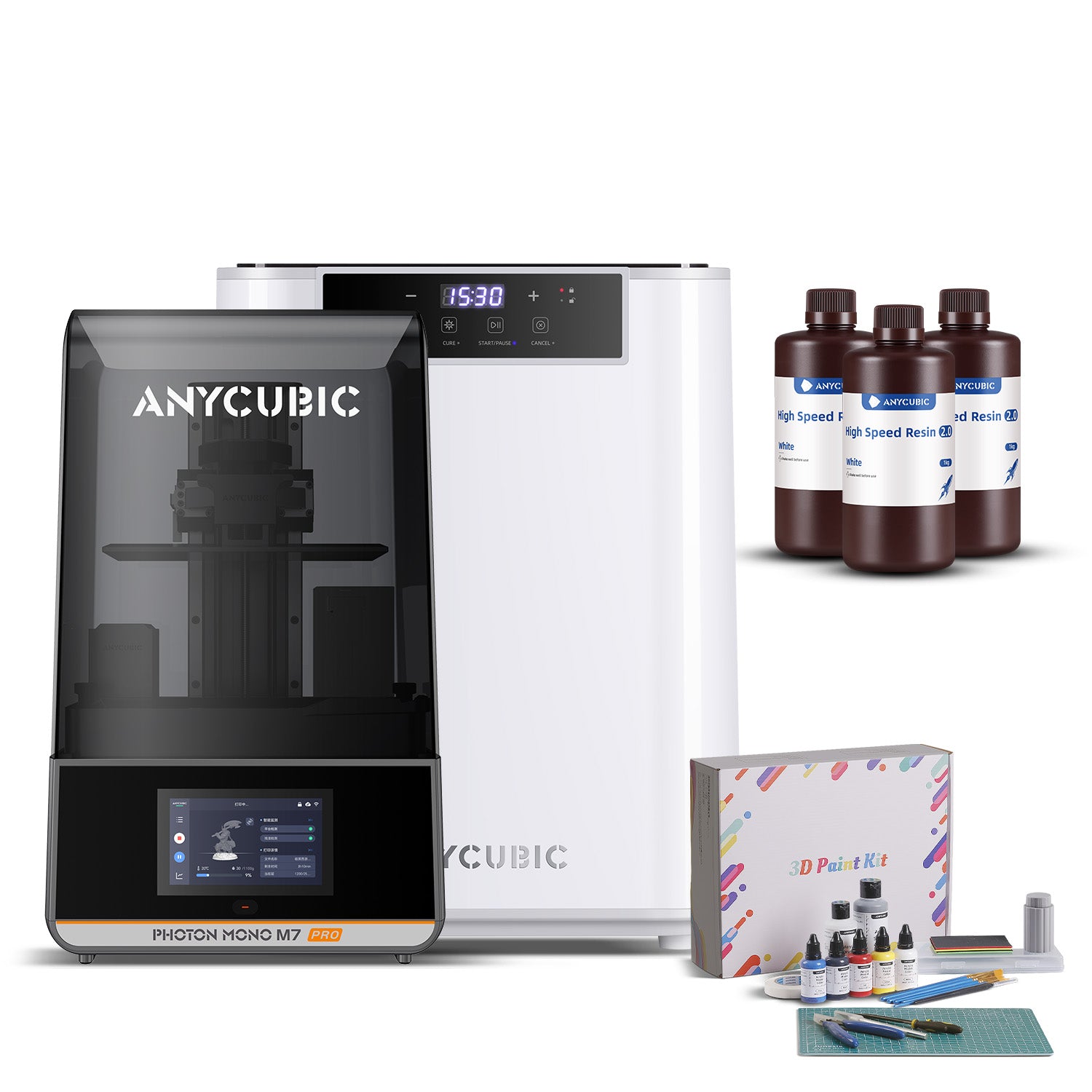

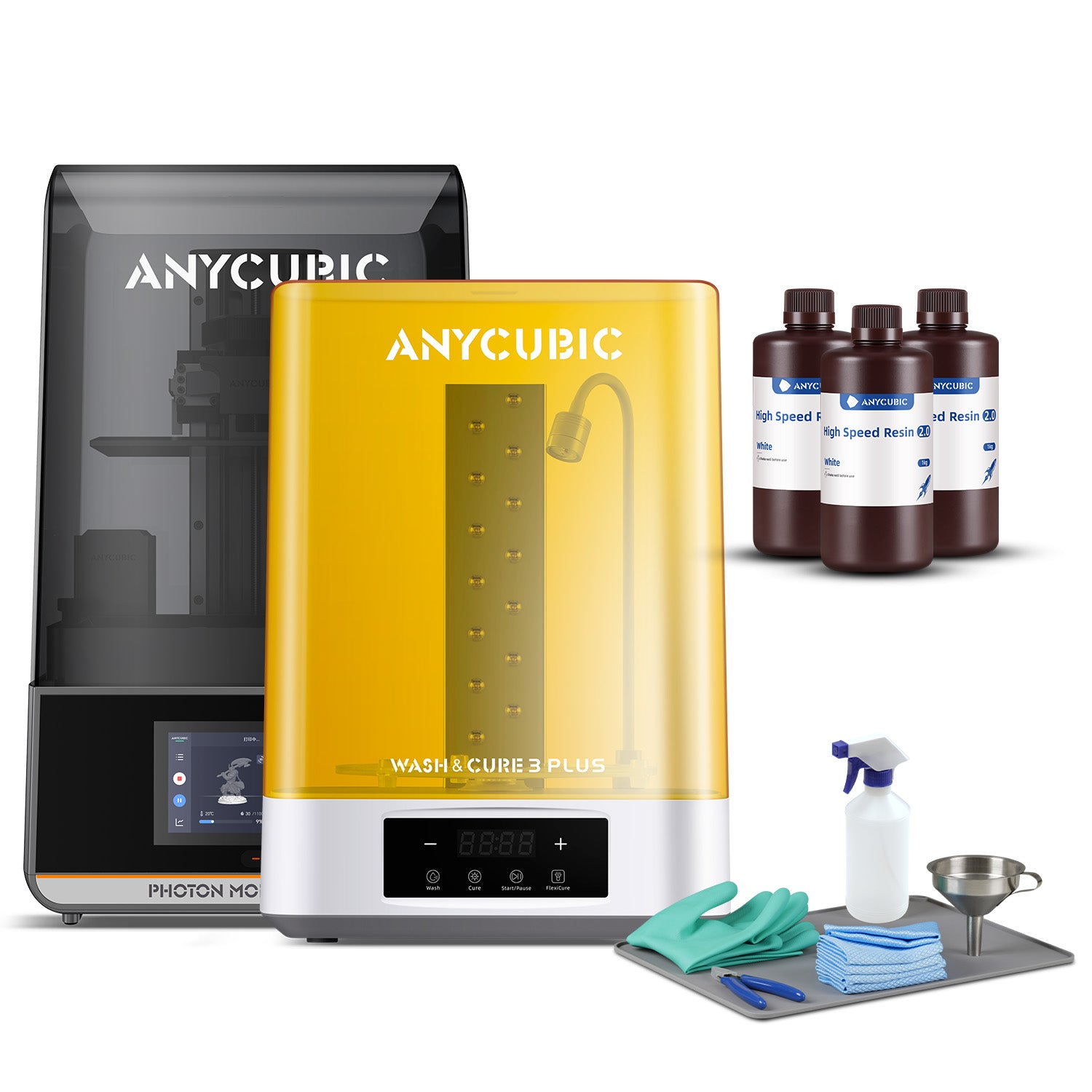

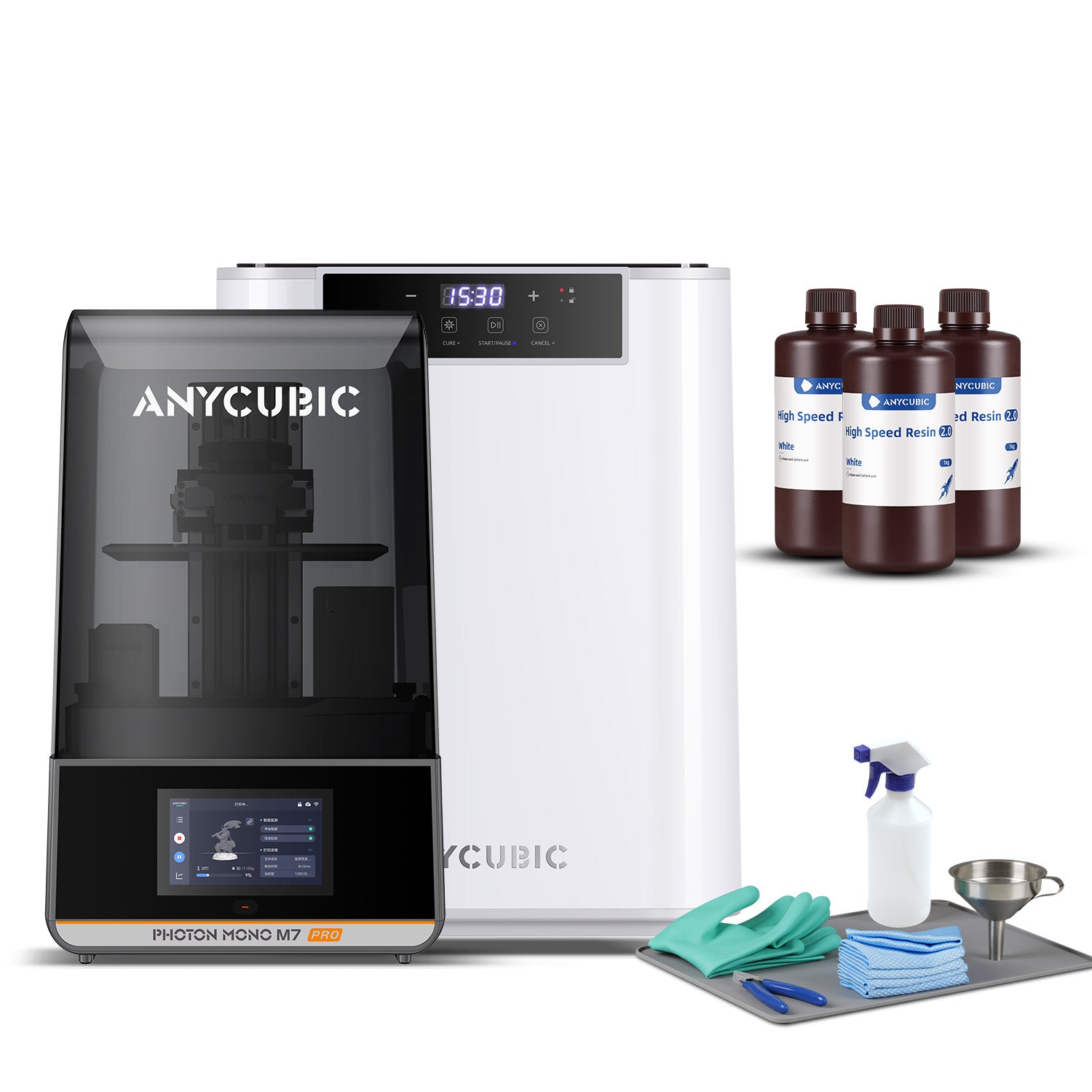

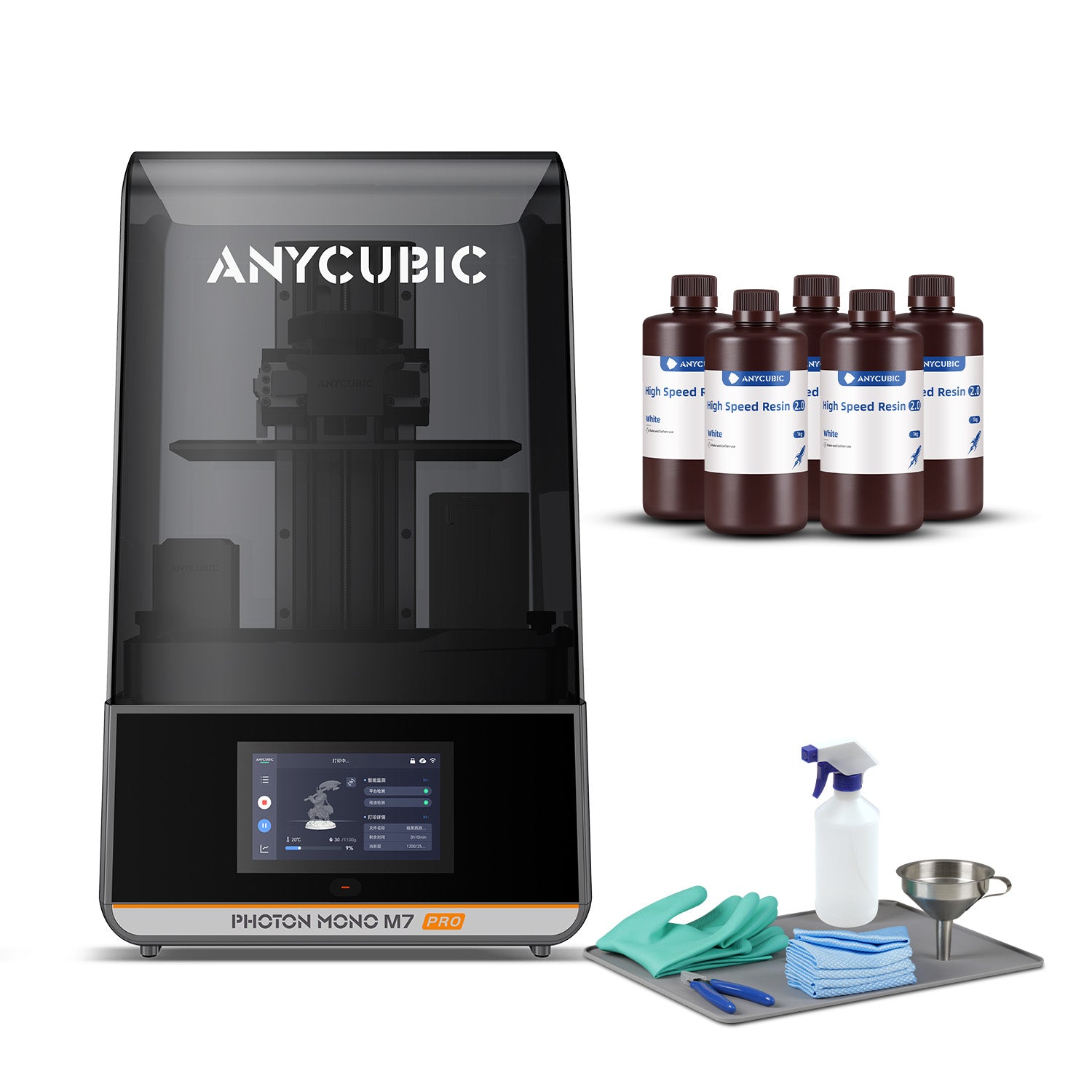

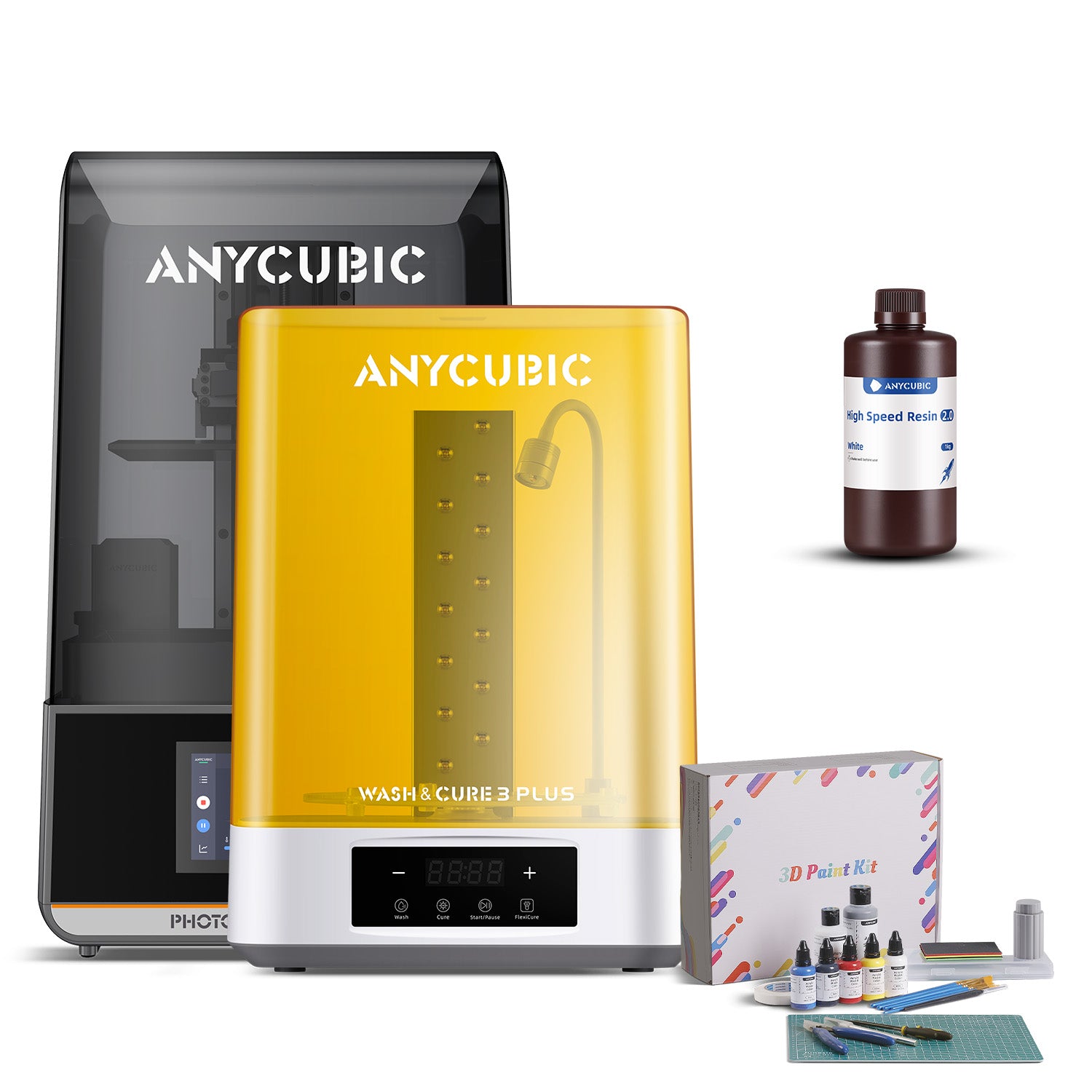

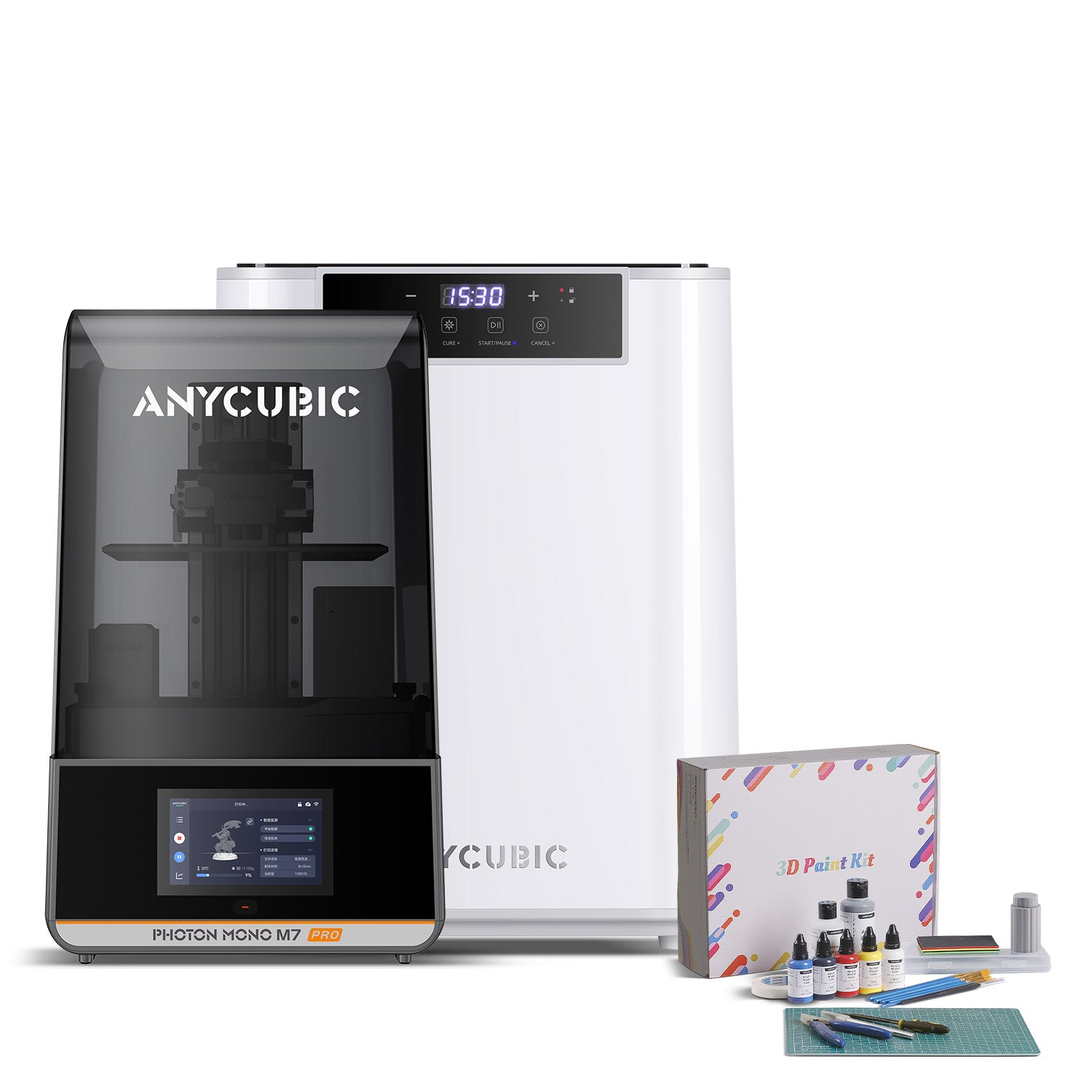

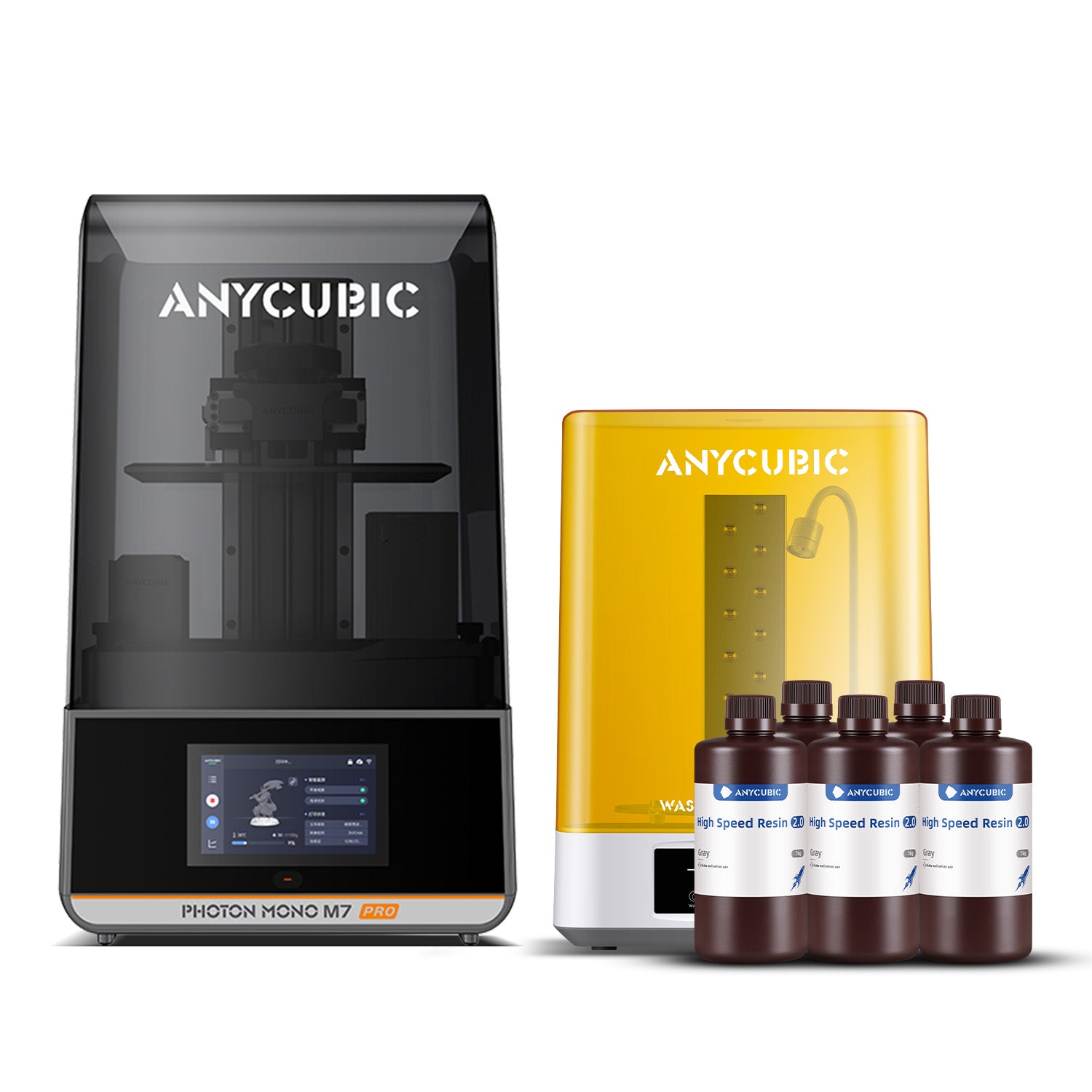

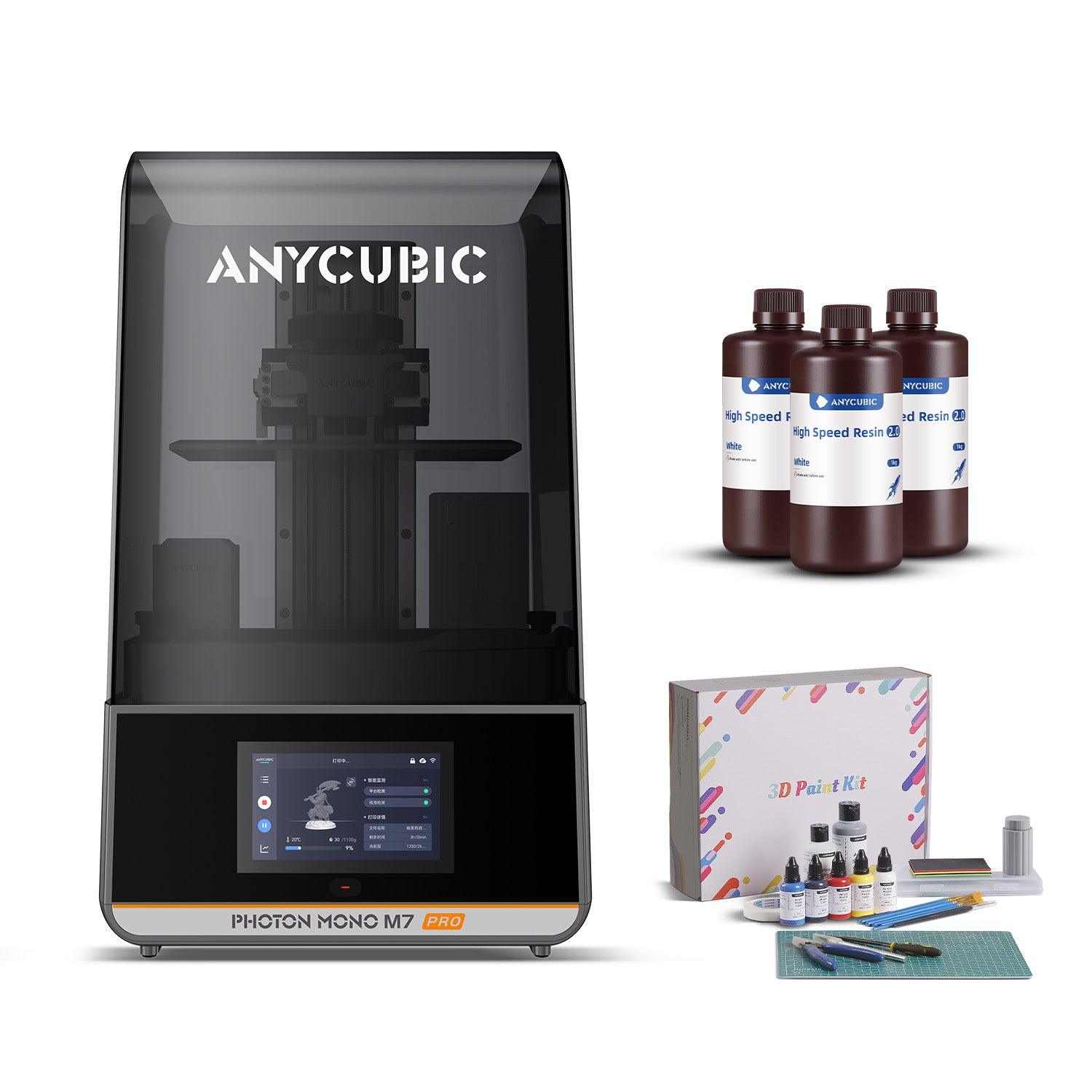

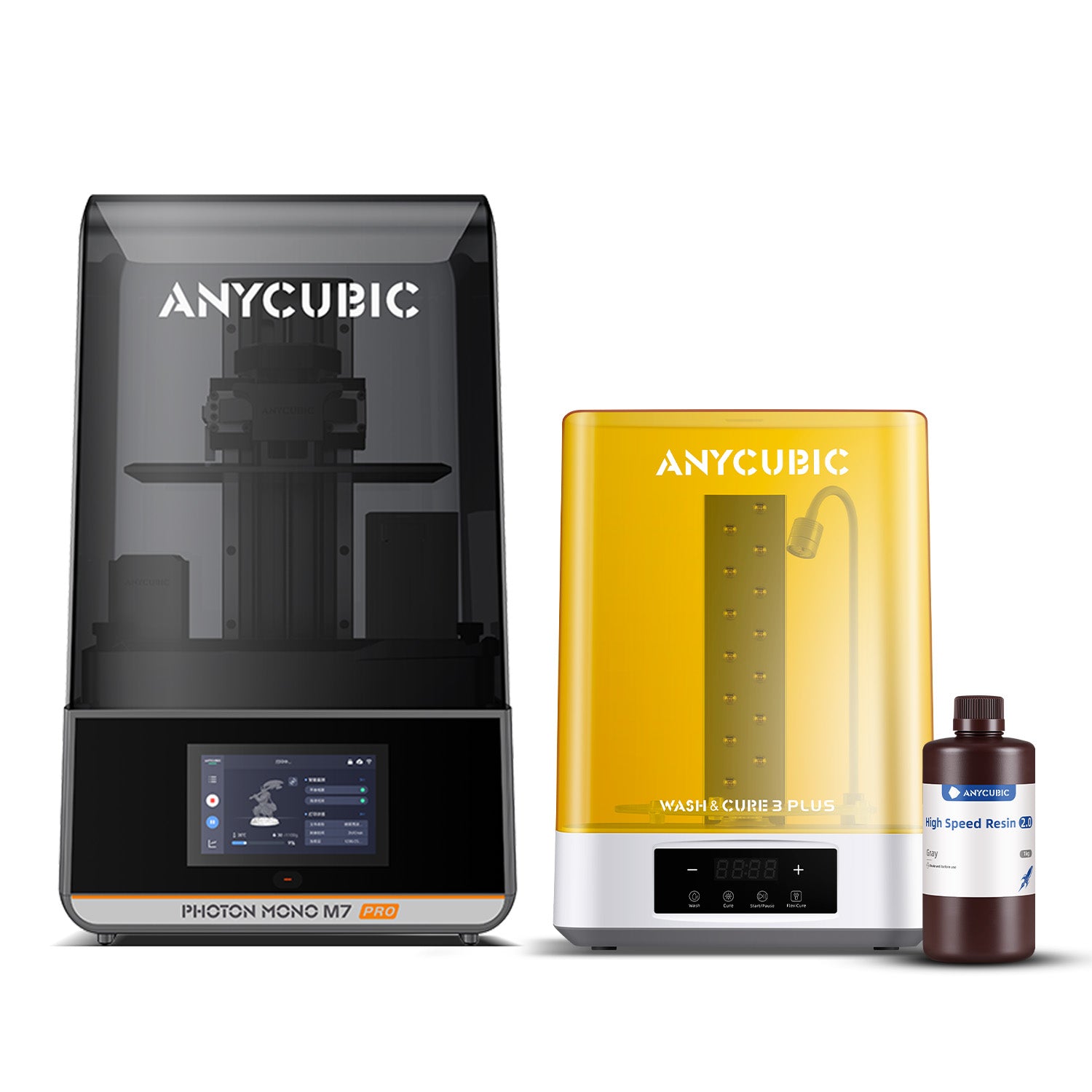

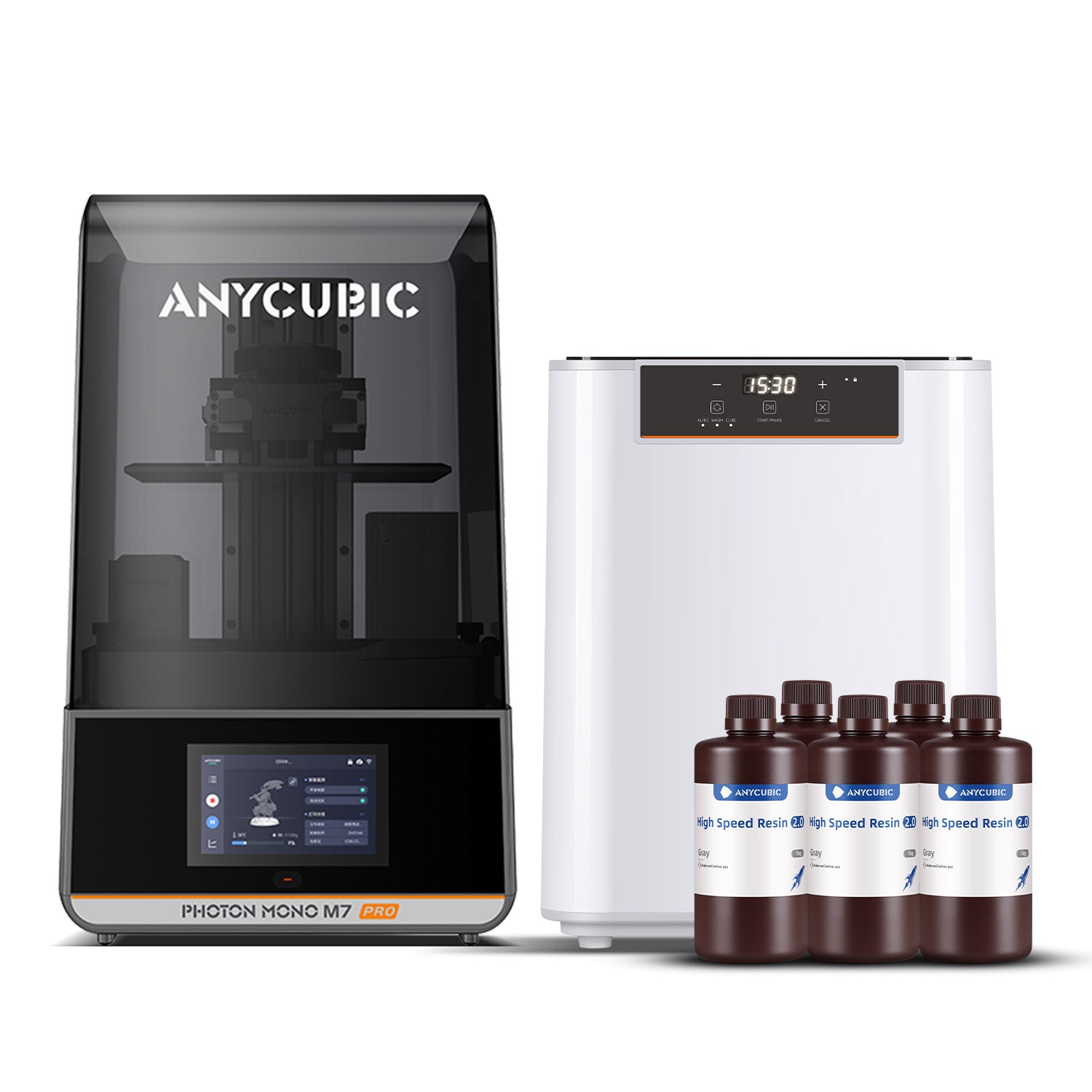

Include Wash & Cure Machine: None

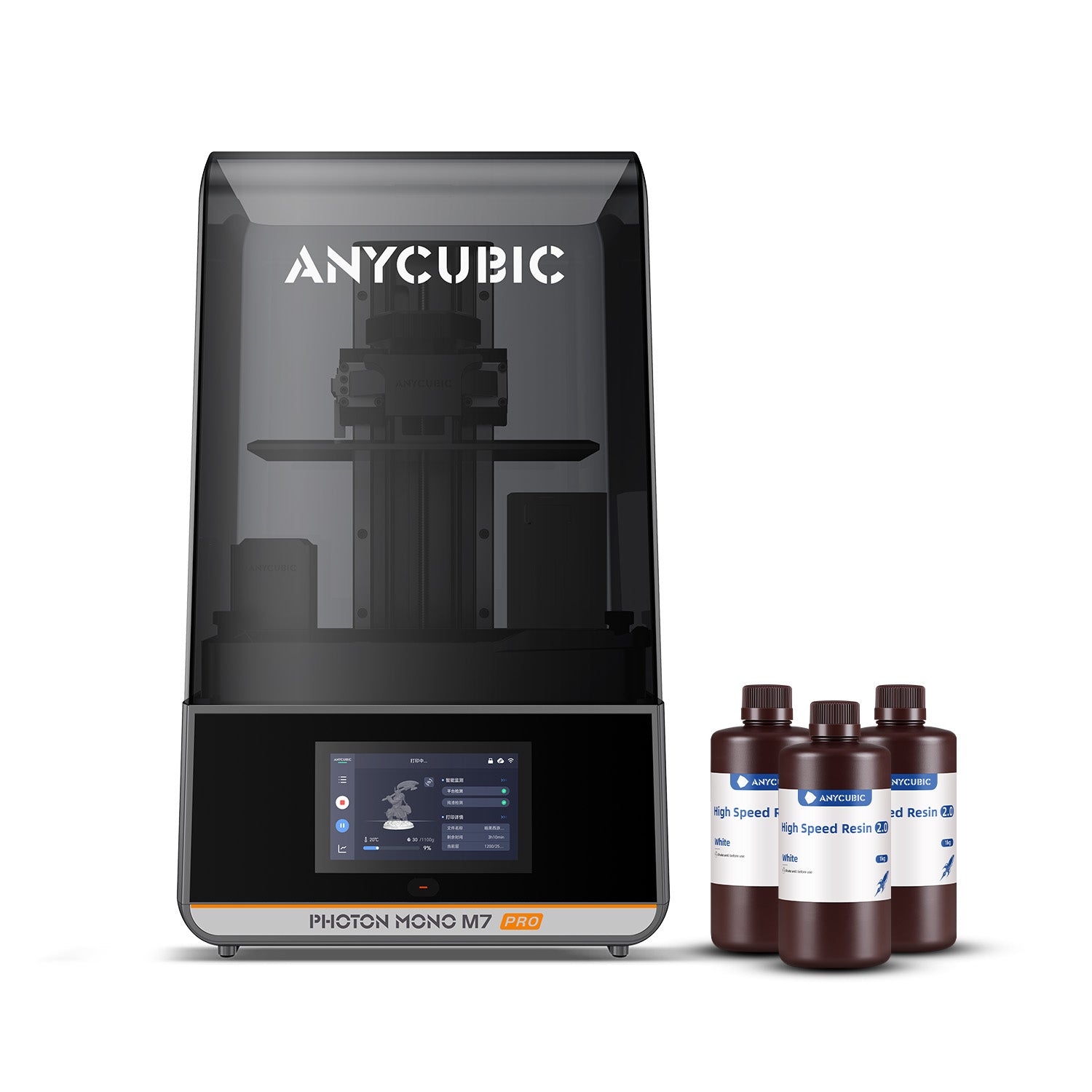

Include Resin: None
Included Accessories: None
Note:
The type and colors in the printer bundle are random, it may contain duplicate colors. Product images are for reference only.
ANYCUBIC-EU
Estimated Shipping Time
February 23rd - March 2nd
View More
ANYCUBIC-EU
Payment Methods
PayPalMastercardVisaPayPalAmerican Express Google Pay Apple Pay MaestroDiscoverDiners ClubKlarnaJCBUnion PayTrustlyBancontactBLIKTabbyLay-Buy Powered By PayPalBacs
ANYCUBIC-EU
Delivery Method
ANYCUBIC-EU ANYCUBIC-EU
ANYCUBIC-EU
Free Express Shipping
ANYCUBIC-EU
14-Day No Reason Return
ANYCUBIC-EU
30-Day After-Sales Guarantee
ANYCUBIC-EU
1-Year Warranty For 3D Printers
€429,00
€429,00 €669,00
Features Specifications In the Box Compare Reviews FAQs
€429,00
€429,00 €669,00
Add to cart
ANYCUBIC-EU
ANYCUBIC-EU
ANYCUBIC-EU
ANYCUBIC-EU

Why choose Photon Mono M7 Pro

  • Full Speed Ahead

  • Ultra-high-precision LighTurbo3.0

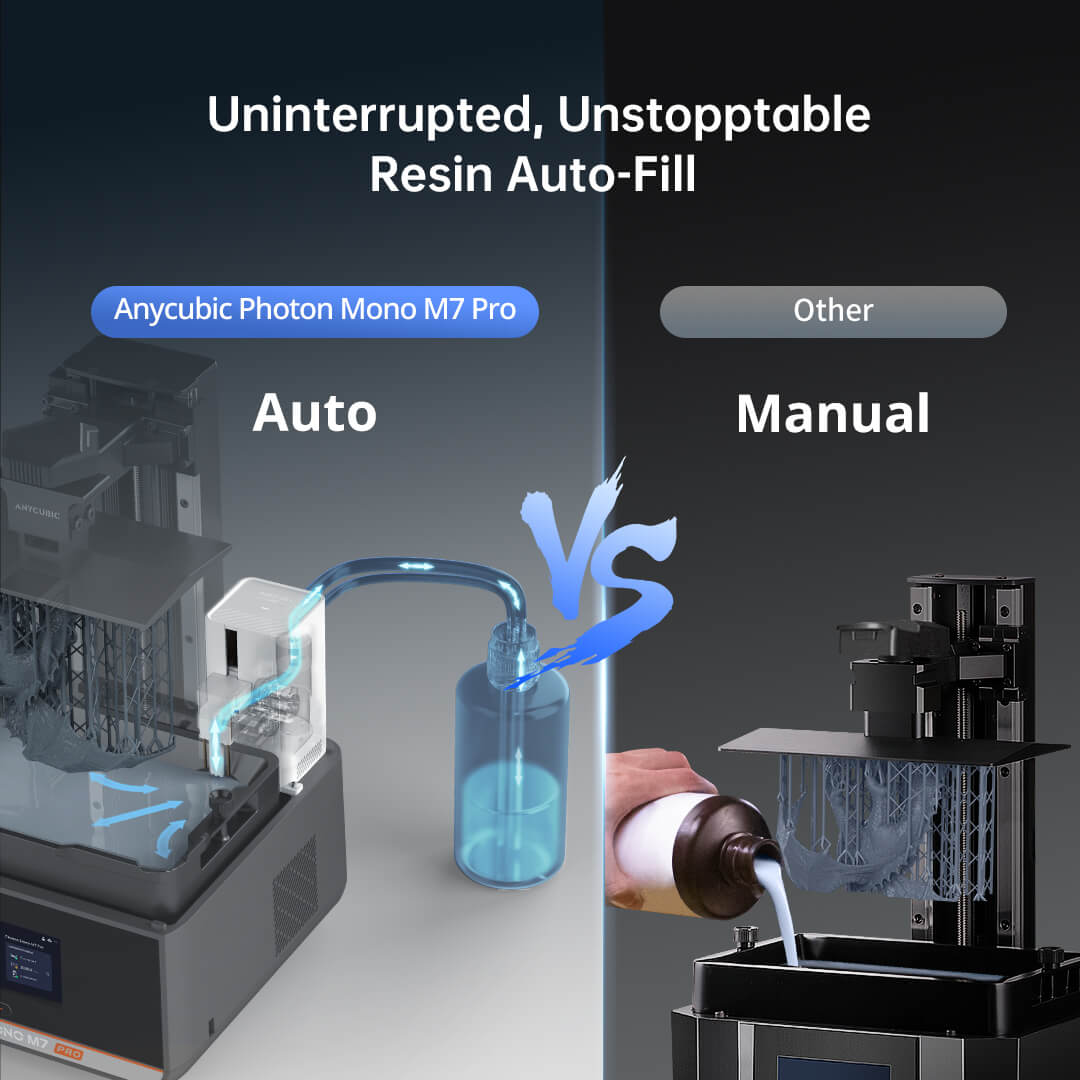

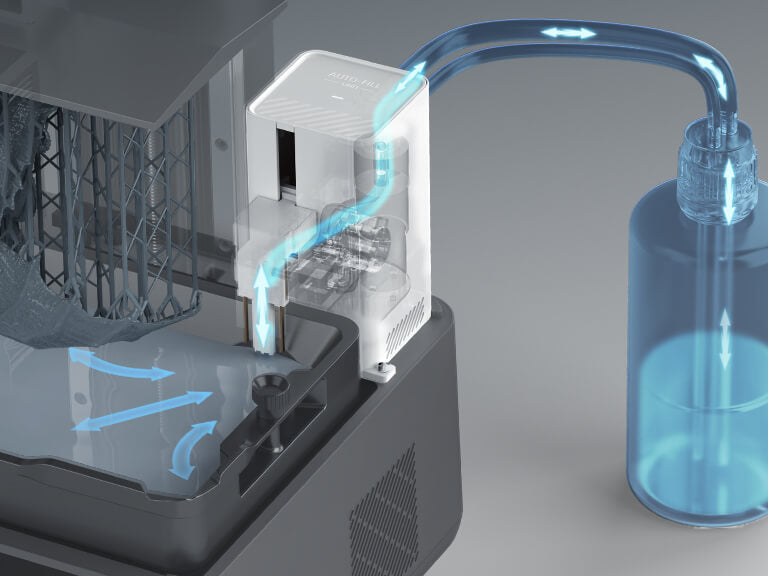

  • Resin Auto-Fill

  • Dynamic Temperature Control Resin Vat

  • Expansive Space for Your Creativity

  • A WISE Start of Your Creative Journey
ANYCUBIC-EU
ANYCUBIC-EU
ANYCUBIC-EU
Full Speed Ahead
ANYCUBIC-EUANYCUBIC-EU
170mm/h at 0.1mm① Layer Height.
ANYCUBIC-EUANYCUBIC-EU
Standard Resin 130mm/h② at 0.1mm Layer Height.
ANYCUBIC-EUANYCUBIC-EU
Multiple Technological Breakthroughs to Unleash Speed.
ANYCUBIC-EUANYCUBIC-EU
The All-New 14K Optical Sources System LighTurbo 3.0
ANYCUBIC-EUANYCUBIC-EU
The COB Light Source System, Combined with Fresnel Lenses and Front-facing Reflectors Maintain Light at ≤3°.
ANYCUBIC-EUANYCUBIC-EU
≥90% Light Uniformity on the Screen Creates ±0.01-0.05mm Tolerance.
ANYCUBIC-EUANYCUBIC-EU
Light-off Compensation Algorithm Dynamicly Adjust the Light-off Time.
ANYCUBIC-EUANYCUBIC-EU
14K Ultra-high Definition Screen.
ANYCUBIC-EUANYCUBIC-EU

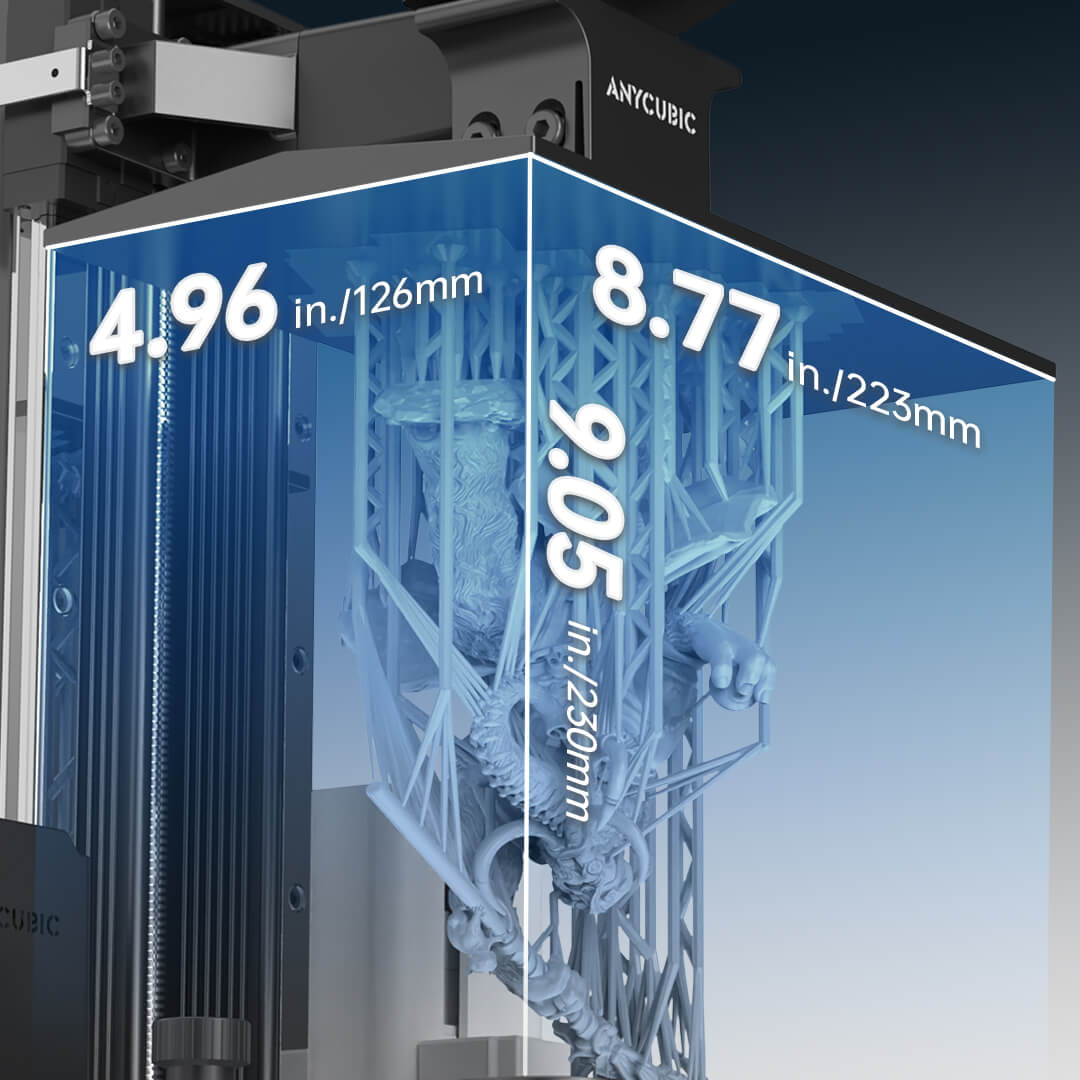

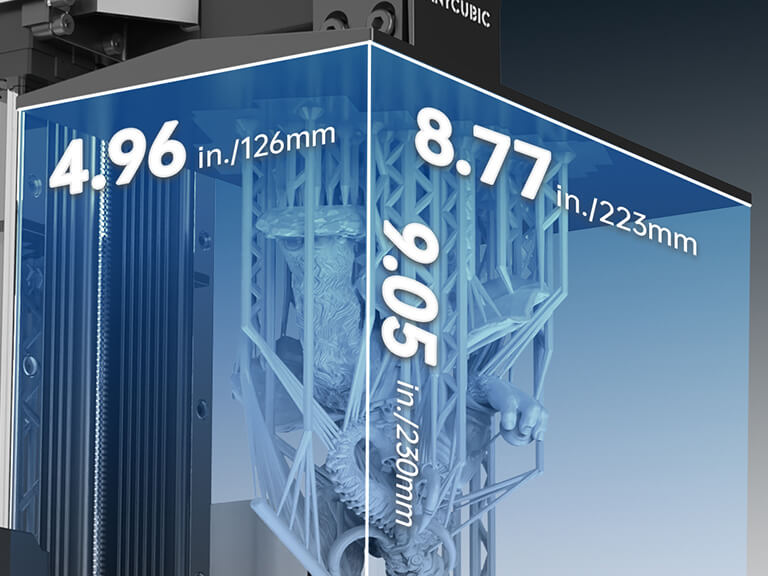

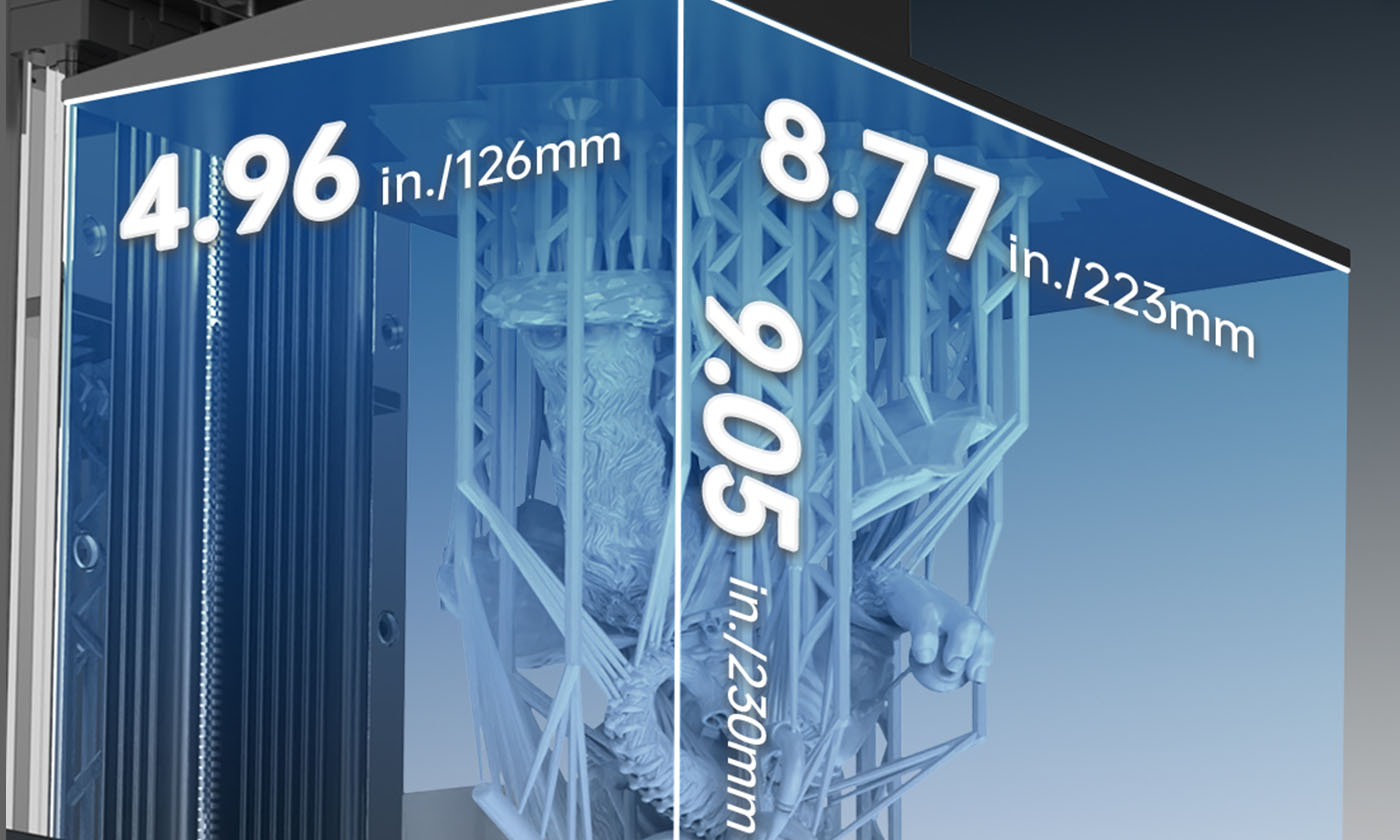

Expansive Space for Your Creativity

Photon Mono M7 Pro has a build volume of 223*126*230mm, providing ample space for your creativity.

Intelligence-Assisted Printing System

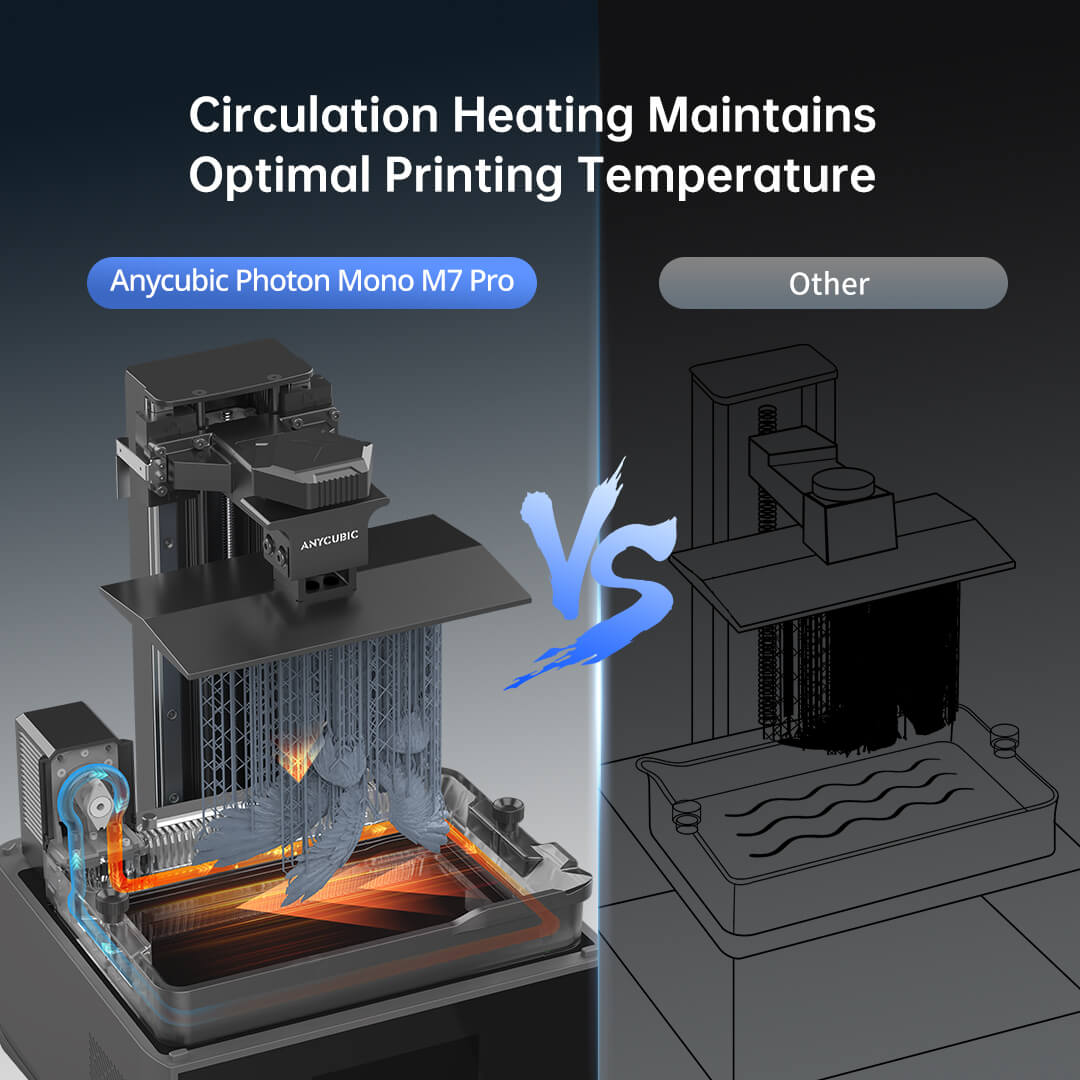

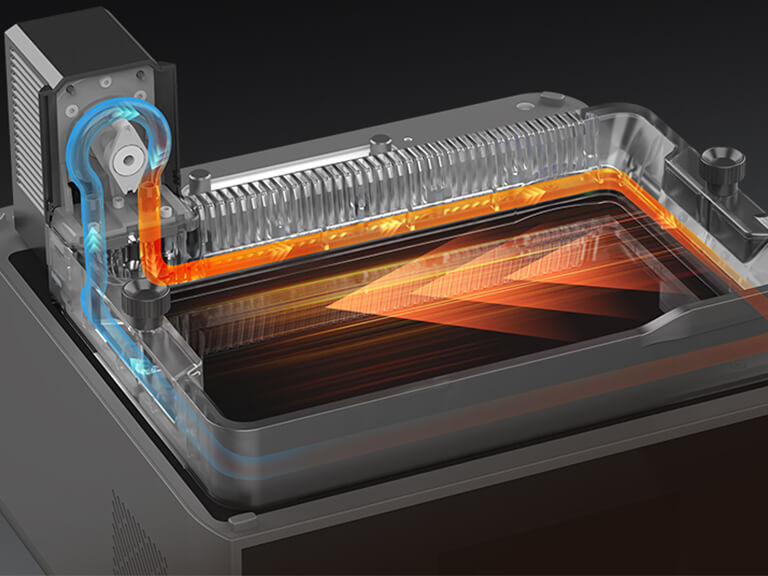

  • Dynamic Temperature Control Resin Vat Maintains Optimal Resin
  • Temperature.Automatic Resin Refill and Recycle, Cutting Costs while Boosting
  • Efficiency.Leveling-free.

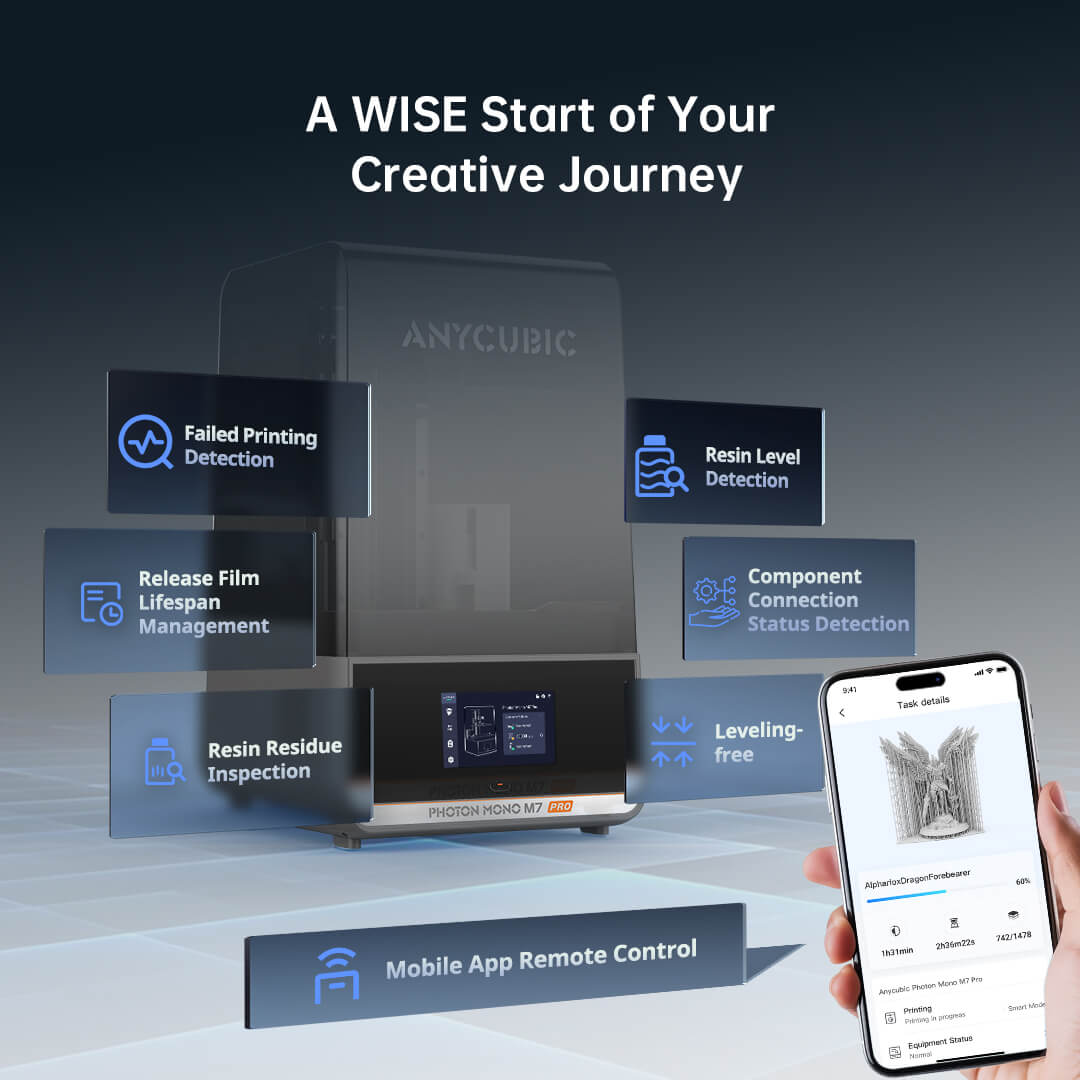

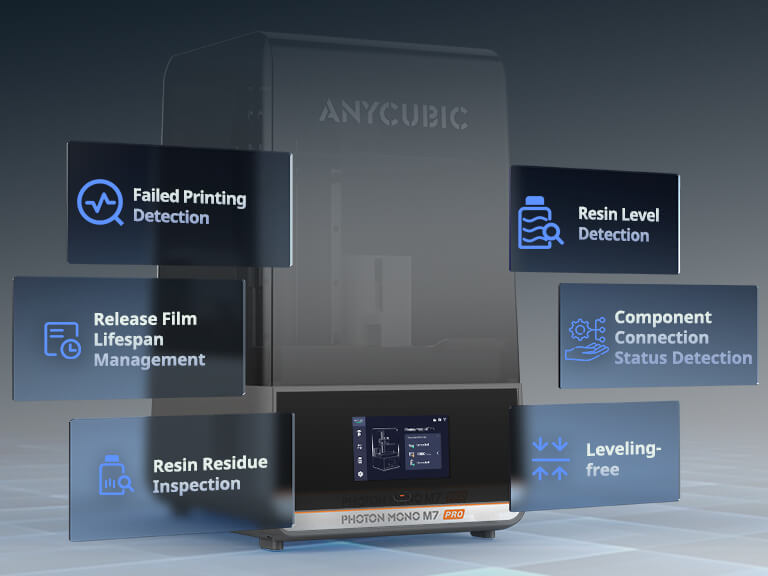

Automatic Intelligent Detections
ANYCUBIC-EUANYCUBIC-EU
Failed Print Detection, Stops Printing when Anomaly is Detected③.
ANYCUBIC-EUANYCUBIC-EU
Release Film Lifespan Management Reminder.
ANYCUBIC-EUANYCUBIC-EU
Resin Residue Detection for Screen Protection.
ANYCUBIC-EUANYCUBIC-EU
Resin Level Detection Ensures Optimal Resin Quantity for Printing.
ANYCUBIC-EUANYCUBIC-EU

A Refreshing Experience

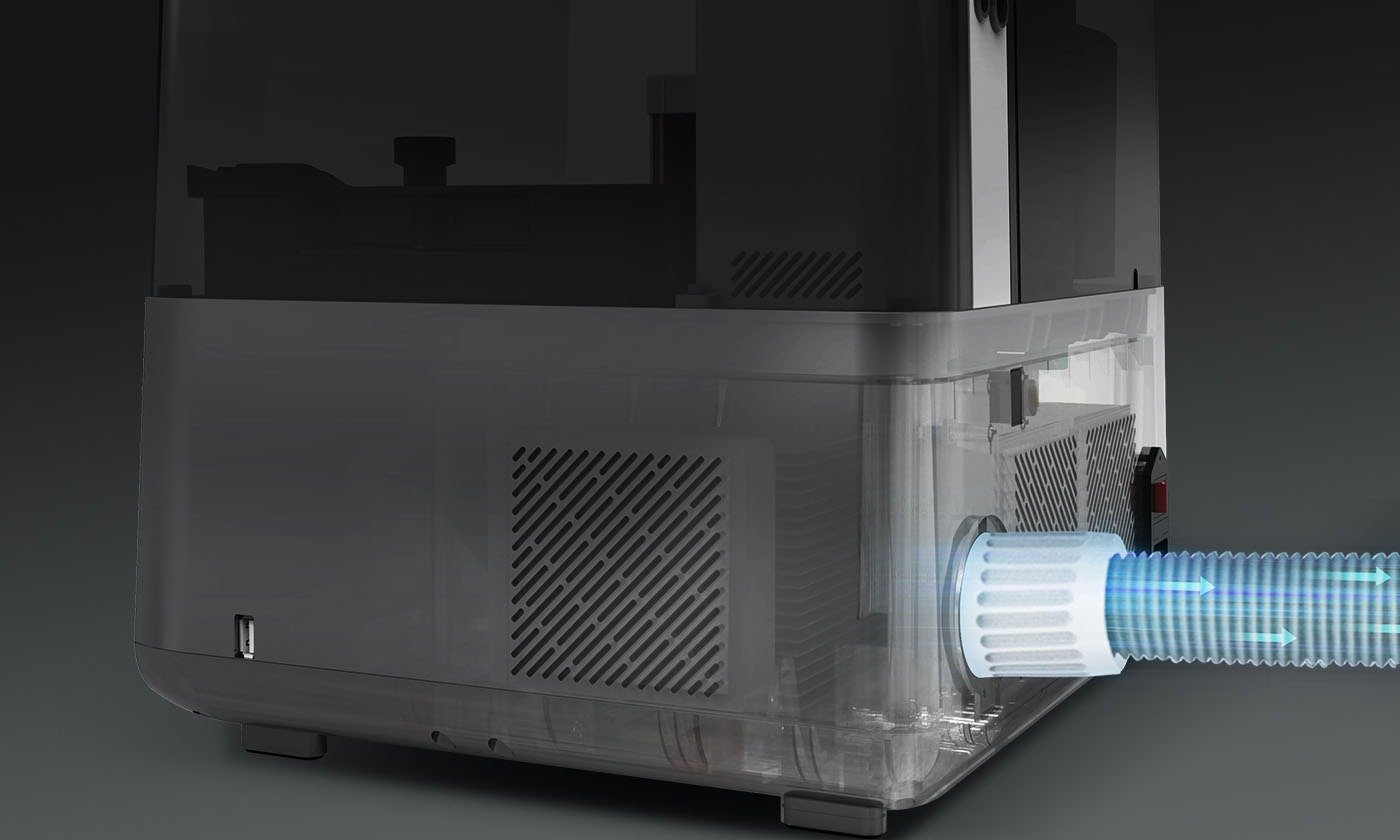

Optional ventilation hose attachmentfor reduce resin odor and improve air quality
The Anycubic Ecosystem
ANYCUBIC-EUANYCUBIC-EU
The Anycubic APP
ANYCUBIC-EUANYCUBIC-EU
The Latest Anycubic Photon WorkShop
ANYCUBIC-EUANYCUBIC-EU
Makeronline Creativity Community
ANYCUBIC-EUANYCUBIC-EU
Specifications
Core Printing Performance

Printing Volume

223*126*230mm (6.5L)

Printing Speed

Max Speed ≤130mm/h; Standard Resin (0.1mm): ≤130mm/h; High-Speed Resin (0.1mm): ≤170mm/h

Layer Height Range

0.01 – 0.15mm

X/Y Axis Resolution

16.8 × 24.8μm

Light Source

COB light source+ Fresnel lens+Light uniformity algorithm

Light Intensity

5500 ±10% μW/cm²

Material Compatibility

High-speed, water-washable, standard, ABS-like, and plant-based resins, etc
System & Mechanical Design

Build Platform

Laser-engraved build plate

Release film

Improved ACF film

Z-axis

Dual linear rails with 10 μm precision

Resin Vat

≤1L

Machine Leveling

Leveling-free

Power Loss Resume

Not supported

Power Supply

240W

Protection Film

Replaceable scratch-resistant film

Resin Auto-fill Unit

Supported

Dynamic Temperature Control Resin Vat

Supported

Slicing Software

Photon Workshop, Chitubox, LycheeSlicer (Scheduled)

File Transfer

USB/WiFi/LAN
User Experience & Features

Hinged Cover

-

Operating Screen

4.3" Touch-Control

Air Purifier

Optional accessory

LCD Screen

10.1-inch monochrome LCD, 14K resolution

Anycubic App

Supported

Multilingual Support

EN / CN / DE / FR / IT / ES / RU / JP

Machine Weight

12.8kg

Package Weight

15.2kg

Product Dimensions

312*315*520mm

Packaging Dimensions

620*395*395mm

User Manuals

User Manuals

Unboxing Video

What's In Box
ANYCUBIC-EUANYCUBIC-EU

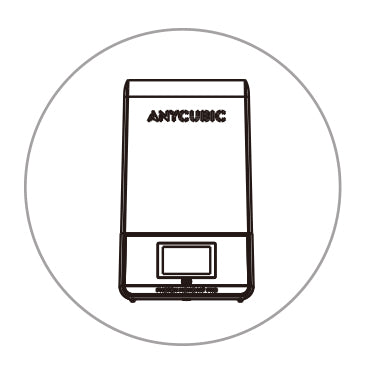

Photon Mono M7 Pro
ANYCUBIC-EUANYCUBIC-EU
Print Platform * 1
ANYCUBIC-EUANYCUBIC-EU
Resin Vat * 1
ANYCUBIC-EUANYCUBIC-EU

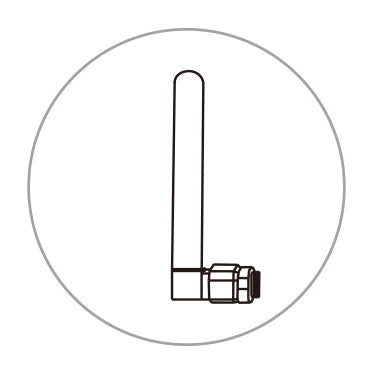

WiFi Antenna
ANYCUBIC-EUANYCUBIC-EU

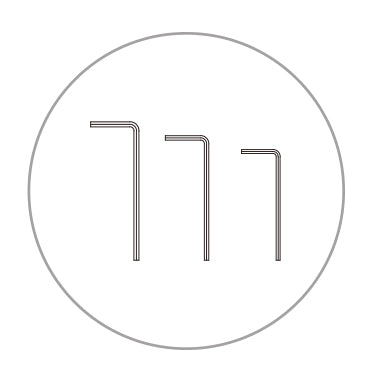

Hex Key Set
ANYCUBIC-EUANYCUBIC-EU
Protective Equipment
ANYCUBIC-EUANYCUBIC-EU
Filter *5
ANYCUBIC-EUANYCUBIC-EU

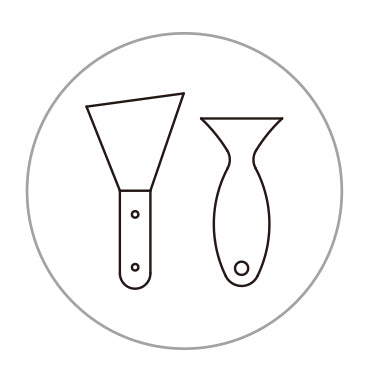

Scrapers * 2
ANYCUBIC-EUANYCUBIC-EU

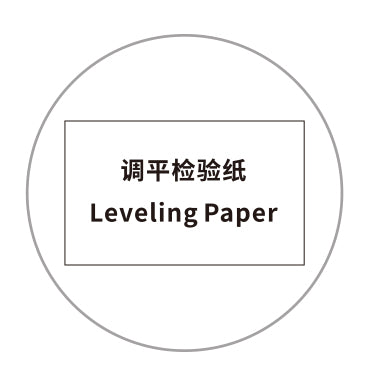

Leveling Paper
ANYCUBIC-EUANYCUBIC-EU
Manual * 1
ANYCUBIC-EUANYCUBIC-EU
USB Drive * 1
ANYCUBIC-EUANYCUBIC-EU

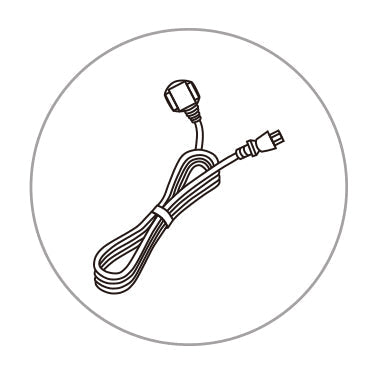

Power Cord
ANYCUBIC-EUANYCUBIC-EU

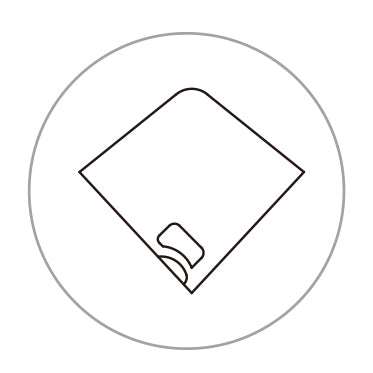

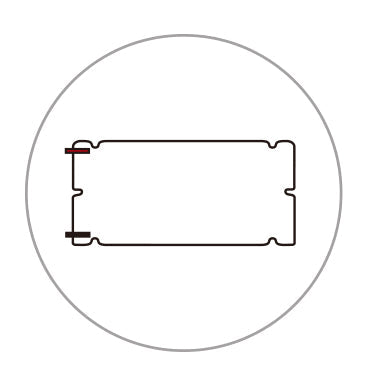

Screen Protector Kit
ANYCUBIC-EUANYCUBIC-EU

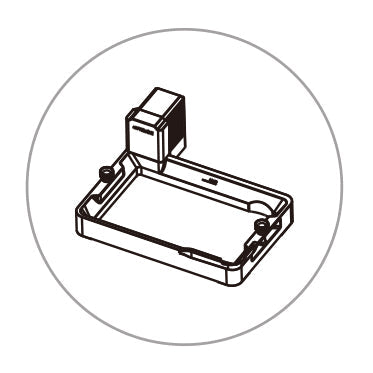

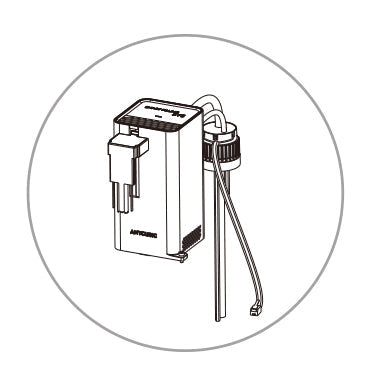

Auto-fill Unit

Photon Mono M7 Series Tech Specs

FAQs

What do the ①②③④⑤ annotations in the product details mean?

The numbered annotations on the product page correspond to the following explanations:
① The data was measured using Anycubic high speed resin and sourced from Anycubic lab.
② The data is the from Anycubic lab.
③ Millionth of a second.
④ When printing with a 0.05mm thickness in standard high-precision mode, the speed increase value may vary among different models.
⑤ Breakage and bottom dropout detection support a minimum area of 15*15mm.

What is the hottest temperature that the heater can heat the resin to? Is the temperature control adjustable?

It is adjustable.The default temperature is 25 centigrade, and can be set at 20-40 centigrade.

Can the auto fill unit be used while the cover is on?

Yes it can be used while the cover is on.

Do I need to buy high speed resin for the fast prints? Or this can print fast with the normal resin?

Photon Mono M7 Pro can support both High Speed Resin and Standard Resins. The print speed is different. Max Speed 130mm/hr, 0.1mm Layer With Standand Resin; Max Speed170mm/hr, 0.1mm Layer With High Speed Resin.

What hardware is required when using a printer to clean and cure printed parts?

To clean and cure printed parts using a printer, you will need Cleaning Kit and Wash & Cure Machine.

How about finding out what resins this machine can support and where to find the resin settings for this 3D printer?

For information on resin settings, please visit: Resin Settings for Anycubic 3D Printers.
