Standard Resin Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Max	0.05 mm	2 s	0.5 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7 Pro	0.1 mm	2.2 s	0.5 s	25 s	3	1	4 mm	15 mm/s	15 mm/s
Photon Mono M7 Pro	0.05 mm	2 s	0.5 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	2.2 s	0.5 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono 4 Ultra	0.05 mm	2.6 s	1 s	30 s	5	1	5 mm	8 mm/s	8 mm/s
Photon Mono 4	0.05 mm	2.8 s	1 s	30 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono M5s Pro	0.05 mm	3.6 s	0.5 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s	0.05 mm	2.8 s	0.5 s	25 s	5	1	5 mm	5 mm/s	6 mm/s
Photon Mono M5	0.05 mm	2.8 s	0.5 s	25 s	5	1	8 mm	5 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	2.5 s	0.5 s	20 s	5	1	8 mm	3 mm/s	4 mm/s
Photon Mono X 6K	0.05 mm	2 s	0.5 s	23 s	6	1	8 mm	2 mm/s	3 mm/s
Photon M3 Max	0.05 mm	3 s	2.5 s	50 s	6	1	10 mm	2 mm/s	3 mm/s
Photon M3 Premium	0.05 mm	2.5 s	0.5 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono 2	0.05 mm	2.5 s	1 s	25 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	2.5 s	0.5 s	20 s	5	1	8 mm	2 mm/s	3 mm/s
Photon Mono 4K	0.05 mm	2 s	0.5 s	40 s	6	1	6 mm	4 mm/s	6 mm/s

Standard Resin V2 Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Max	0.05 mm	2 s	0.5 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7 Pro	0.1 mm	2.2 s	0.5 s	25 s	3	1	4 mm	15 mm/s	15 mm/s
Photon Mono M7 Pro	0.05 mm	2 s	0.5 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	2.2 s	0.5 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono 4 Ultra	0.05 mm	2.6 s	1 s	30 s	5	1	5 mm	8 mm/s	8 mm/s
Photon Mono 4	0.05 mm	2.8 s	1 s	30 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono M5s Pro	0.05 mm	3.6 s	0.5 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s	0.1mm	3s	0.5 s	25 s	6	1	5 mm	20 mm/s	20 mm/s
Photon Mono M5s	0.05 mm	2.8 s	0.5 s	25 s	5	1	8 mm	5 mm/s	6 mm/s
Photon Mono M5	0.05 mm	2.8 s	0.5 s	25 s	5	1	8 mm	5 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	2.5 s	0.5 s	20 s	5	1	8 mm	3 mm/s	4 mm/s
Photon Mono X 6K	0.05 mm	2 s	0.5 s	23 s	6	1	8 mm	2 mm/s	3 mm/s
Photon M3 Max	0.05 mm	3 s	2.5 s	50 s	6	1	10 mm	2 mm/s	3 mm/s
Photon M3 Premium	0.05 mm	2.5 s	0.5 s	25 s	2	1	8 mm	6 mm/s	6 mm/s
Photon Mono 2	0.05 mm	2.5 s	1 s	25 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	2.5 s	0.5 s	20 s	5	1	8 mm	2 mm/s	3 mm/s
Photon Mono 4K	0.05 mm	2 s	0.5 s	40 s	6	1	6 mm	4 mm/s	6 mm/s

ABS-Like Resin Pro 2 Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Max	0.05 mm	2 s	0.5 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7 Pro	0.05 mm	2 s	1 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	2.2 s	1 s	35 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono 4 Ultra	0.05 mm	2.6 s	1 s	30 s	5	1	5 mm	8 mm/s	8 mm/s
Photon Mono 4	0.05 mm	2.8 s	1 s	30 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono M5s Pro	0.05 mm	3.6 s	1 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s	0.05 mm	3 s	0.5 s	25 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5	0.05 mm	2.8 s	0.5 s	25 s	6	1	8 mm	6 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	2.5 s	0.5 s	20 s	6	1	8 mm	2 mm/s	3 mm/s
Photon Mono X 6K	0.05 mm	2 s	0.5 s	23 s	6	1	8 mm	2 mm/s	3 mm/s
Photon M3 Max	0.05 mm	3 s	2 s	30 s	6	1	10 mm	4 mm/s	4 mm/s
Photon M3 Premium	0.05 mm	2.5 s	0.5 s	25 s	3	1	8 mm	6 mm/s	6 mm/s
Photon Mono 2	0.05 mm	2.5 s	1 s	28 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	2.5 s	0.5 s	25 s	5	1	8 mm	2 mm/s	3 mm/s
Photon Mono 4K	0.05 mm	2 s	0.5 s	40 s	6	1	6 mm	4 mm/s	6 mm/s

Water-Wash Resin 2.0 Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Max	0.05 mm	2 s	0.5 s	30 s	5	8 mm	6 mm/s	6 mm/s
Photon Mono M7 Pro	0.05 mm	2 s	0.5 s	25 s	4	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	2.5 s	1 s	35 s	4	8 mm	6 mm/s	6 mm/s
Photon Mono 4 Ultra	0.05 mm	2.6 s	1 s	30 s	5	5 mm	8 mm/s	8 mm/s
Photon Mono 4	0.05 mm	2.8 s	1 s	30 s	5	6 mm	4 mm/s	6 mm/s
Photon Mono M5s Pro	0.05 mm	3.6 s	0.5 s	30 s	5	8 mm	6 mm/s	6 mm/s
Photon Mono M5s	0.05 mm	2.8 s	0.5 s	25 s	5	8 mm	5 mm/s	6 mm/s
Photon Mono M5	0.05 mm	2.8 s	0.5 s	25 s	5	8 mm	5 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	2.5 s	0.5 s	20 s	5	8 mm	3 mm/s	4 mm/s
Photon Mono X 6K	0.05 mm	2 s	0.5 s	23 s	6	8 mm	2 mm/s	6 mm/s
Photon M3 Max	0.05 mm	3 s	2.5 s	35 s	6	10 mm	2 mm/s	3 mm/s
Photon M3 Premium	0.05 mm	2.5 s	0.5 s	25 s	4	8 mm	6 mm/s	6 mm/s
Photon M3 Plus	0.05 mm	1.5 s	0.5 s	23 s	4	6 mm	6 mm/s	6 mm/s
Photon M3	0.05 mm	2 s	0.5 s	23 s	4	6 mm	3 mm/s	4 mm/s
Photon Mono 2	0.05 mm	2.5 s	1 s	25 s	5	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	2.5 s	0.5 s	20 s	5	8 mm	2 mm/s	3 mm/s
Photon D2	0.05 mm	2.5 s	1 s	28 s	5	5 mm	2 mm/s	3 mm/s
Photon Mono SQ	0.05 mm	2.3 s	0.5 s	23 s	6	5 mm	3 mm/s	3 mm/s
Photon Mono SE	0.05 mm	1.5 s	0.5 s	30 s	6	6 mm	4 mm/s	6 mm/s
Photon Ultra	0.05 mm	2 s	1 s	35 s	4	5 mm	2 mm/s	2 mm/s
Photon Mono 4K	0.05 mm	2 s	0.5 s	40 s	6	6 mm	4 mm/s	6 mm/s
Photon Mono X	0.05 mm	2 s	0.5 s	28 s	4	8 mm	2 mm/s	6 mm/s
Photon Mono	0.05 mm	2.5 s	0.5 s	40 s	4	6 mm	4 mm/s	6 mm/s
Photon S	0.05 mm	9 s	1 s	60 s	6	6 mm	3 mm/s	3 mm/s

ABS-Like Resin 3.0 Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Max	0.05 mm	3.2 s	0.5 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7 Pro	0.05 mm	2 s	1 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	2.2 s	1 s	35 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono 4 Ultra	0.05 mm	2.6 s	1 s	30 s	5	1	5 mm	8 mm/s	8 mm/s
Photon Mono 4	0.05 mm	2.8 s	1 s	30 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono M5s Pro	0.05 mm	3.6 s	1 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s	0.05 mm	3 s	0.5 s	25 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5	0.05 mm	2.8 s	0.5 s	25 s	6	1	8 mm	6 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	2.5 s	0.5 s	20 s	6	1	8 mm	2 mm/s	3 mm/s
Photon Mono X 6K	0.05 mm	2 s	0.5 s	23 s	6	1	8 mm	2 mm/s	3 mm/s
Photon M3 Max	0.05 mm	3 s	2 s	30 s	6	1	10 mm	4 mm/s	4 mm/s
Photon M3 Premium	0.05 mm	2.5 s	0.5 s	25 s	3	1	8 mm	6 mm/s	6 mm/s
Photon Mono 2	0.05 mm	2.5 s	1 s	28 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	2.5 s	0.5 s	25 s	5	1	8 mm	2 mm/s	3 mm/s
Photon Mono 4K	0.05 mm	2 s	0.5 s	40 s	6	1	6 mm	4 mm/s	6 mm/s

High Speed Resin 2.0 Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Pro	0.01 mm	1.5 s	0.5 s	15 s	5	1	4 mm	15 mm/s	15 mm/s
Photon Mono M7	0.01 mm	1.4 s	0.5 s	15 s	5	1	4 mm	15 mm/s	15 mm/s
Photon Mono M5s Pro	0.01 mm	1.9 s	0.5 s	15 s	5	1	3 mm	20 mm/s	20 mm/s
Photon Mono M5s	0.01 mm	1.9 s	0.5 s	15 s	5	1	3 mm	20 mm/s	20 mm/s
Photon Mono M5	0.01 mm	2 s	0.5 s	15 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono X6Ks	0.01 mm	2.5 s	0.5 s	15 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono X 6K	0.01 mm	2 s	0.5 s	18 s	6	1	6 mm	4 mm/s	6 mm/s
Photon M3 Max	0.01 mm	2.8 s	0.5 s	25 s	6	1	8 mm	4 mm/s	4 mm/s
Photon M3 Premium	0.01 mm	2.5 s	0.5 s	25 s	5	1	6 mm	6 mm/s	6 mm/s
Photon Mono 2	0.01 mm	2.5 s	0.5 s	18 s	5	1	5 mm	4 mm/s	6 mm/s
Photon Mono X2	0.01 mm	2.5 s	0.5 s	18 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono 4K	0.01 mm	2 s	0.5 s	25 s	6	1	5 mm	4 mm/s	6 mm/s

High Clear Resin Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Pro	0.05 mm	4 s	0.5 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	4 s	1 s	35 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s Pro	0.05 mm	4 s	0.5 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s	0.05 mm	4 s	0.5 s	25 s	5	1	8 mm	5 mm/s	6 mm/s
Photon Mono M5	0.05 mm	4 s	0.5 s	25 s	5	1	8 mm	5 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	4 s	0.5 s	20 s	5	1	8 mm	3 mm/s	4 mm/s
Photon Mono X 6K	0.05 mm	4 s	0.5 s	28 s	6	1	8 mm	2 mm/s	3 mm/s
Photon M3 Max	0.05 mm	4.5 s	2.5 s	30 s	6	1	10 mm	2 mm/s	3 mm/s
Photon M3 Premium	0.05 mm	4 s	0.5 s	25 s	3	1	8 mm	6 mm/s	6 mm/s
Photon Mono 2	0.05 mm	4 s	1 s	25 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	4 s	0.5 s	25 s	5	1	8 mm	2 mm/s	3 mm/s
Photon Mono 4K	0.05 mm	4 s	0.5 s	40 s	6	1	6 mm	4 mm/s	6 mm/s

Tough Resin 2.0 Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Max	0.05 mm	2 s	0.5 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7 Pro	0.05 mm	2 s	2 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	2.2 s	1 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono 4 Ultra	0.05 mm	2.8 s	1 s	30 s	5	1	5 mm	8 mm/s	8 mm/s
Photon Mono 4	0.05 mm	2.6 s	1 s	30 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono M5s Pro	0.05 mm	3.6 s	1 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s	0.1 mm	3 s	1 s	25 s	6	1	5 mm	20 mm	20 mm
Photon Mono M5s	0.05 mm	2.8 s	1 s	25 s	6	1	8 mm	5 mm/s	6 mm/s
Photon Mono M5	0.05 mm	2.8 s	1 s	25 s	6	1	8 mm	5 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	2.5 s	1 s	20 s	6	1	8 mm	3 mm/s	4 mm/s
Photon Mono X 6K	0.05 mm	2 s	1 s	28 s	6	1	8 mm	2 mm/s	3 mm/s
Photon M3 Max	0.05 mm	3 s	2 s	35 s	6	1	10 mm	2 mm/s	3 mm/s
Photon M3 Premium	0.05 mm	2.5 s	1 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono 2	0.05 mm	2.5 s	1 s	25 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	2.5 s	1 s	20 s	5	1	8 mm	2 mm/s	3 mm/s
Photon Mono 4K	0.05 mm	2 s	1 s	40 s	6	1	6 mm	4 mm/s	6 mm/s

14K Texture Resin Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Max	0.05 mm	2 s	0.5 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7 Pro	0.05 mm	2 s	1 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	2.2 s	0.5 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono 4 Ultra	0.05 mm	3 s	1 s	35 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono 4	0.05 mm	2.4 s	1 s	30 s	5	1	5 mm	8 mm/s	8 mm/s
Photon Mono M5s Pro	0.05 mm	3.2 s	1 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s	0.05 mm	2.8 s	1 s	30 s	5	1	8 mm	5 mm/s	6 mm/s
Photon Mono M5	0.05 mm	2.8 s	1 s	30 s	5	1	8 mm	5 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	2.5 s	1 s	20 s	5	1	8 mm	3 mm/s	4 mm/s
Photon Mono X 6K	0.05 mm	2 s	1 s	30 s	6	1	8 mm	2 mm/s	3 mm/s
Photon M3 Max	0.05 mm	3 s	2 s	35 s	6	1	10 mm	4 mm/s	4 mm/s
Photon M3 Premium	0.05 mm	2.5 s	1 s	35 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono 2	0.05 mm	2.5 s	1 s	25 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	2.5 s	1 s	25 s	5	1	8 mm	4 mm/s	4 mm/s
Photon Mono 4K	0.05 mm	2 s	1 s	40 s	6	1	6 mm	4 mm/s	6 mm/s

DIY Color Mixing Resin Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Pro	0.05 mm	2 s	0.5 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	2.5 s	1 s	35 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono 4 Ultra	0.05 mm	3 s	1 s	35 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono 4	0.05 mm	2.4 s	1 s	30 s	5	1	5 mm	8 mm/s	8 mm/s
Photon Mono M5s Pro	0.05 mm	3.6 s	0.5 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s	0.05 mm	2.8 s	0.5 s	25 s	5	1	8 mm	5 mm/s	6 mm/s
Photon Mono M5	0.05 mm	2.8 s	0.5 s	25 s	5	1	8 mm	5 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	2.5 s	0.5 s	20 s	5	1	8 mm	3 mm/s	4 mm/s
Photon Mono X 6K	0.05 mm	2 s	0.5 s	23 s	6	1	8 mm	2 mm/s	3 mm/s
Photon M3 Max	0.05 mm	3 s	2.5 s	35 s	6	1	10 mm	2 mm/s	3 mm/s
Photon M3 Premium	0.05 mm	2.5 s	0.5 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono 2	0.05 mm	2.5 s	1 s	25 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	2.5 s	0.5 s	20 s	5	1	8 mm	2 mm/s	3 mm/s
Photon Mono 4K	0.05 mm	2 s	0.5 s	40 s	6	1	6 mm	4 mm/s	6 mm/s

Water-Wash ABS-like Resin V2 Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Max	0.05 mm	2 s	0.5 s	30 s	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7 Pro	0.05 mm	1.8 s	0.5 s	25 s	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7 Pro	0.1 mm	3.6 s	0.5 s	35 s	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	2.2 s	1 s	35 s	1	8 mm	6 mm/s	6 mm/s
Photon Mono 4 Ultra	0.05 mm	2.6 s	1s	30 s	1	5 mm	8 mm/s	8 mm/s
Photon Mono 4	0.05 mm	2.8 s	1 s	30 s	1	6 mm	4 mm/s	6 mm/s
Photon Mono M5s Pro	0.05 mm	4.2 s	0.5 s	35 s	1	5 mm	20 mm/s	20 mm/s
Photon Mono M5s	0.05 mm	2.8 s	0.5 s	25 s	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s	0.1 mm	3.2 s	0.5 s	25 s	1	5 mm	20 mm/s	20 mm/s
Photon Mono M5	0.05 mm	2.8 s	0.5 s	25 s	1	8 mm	6 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	2.5 s	0.5 s	20 s	1	8 mm	2 mm/s	3 mm/s
Photon Mono X 6K	0.05 mm	2 s	0.5 s	23 s	1	8 mm	2 mm/s	3 mm/s
Photon M3 Max	0.05 mm	3 s	2 s	30 s	1	10 mm	4 mm/s	4 mm/s
Photon M3 Premium	0.05 mm	2.5 s	0.5 s	25 s	1	8 mm	6 mm/s	6 mm/s
Photon Mono 2	0.05 mm	2.5 s	1 s	25 s	1	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	2.5 s	0.5 s	25 s	1	8 mm	2 mm/s	3 mm/s
Photon Mono 4K	0.05 mm	2 s	0.5 s	40 s	1	6 mm	4 mm/s	6 mm/s

DLP Craftsman Resin Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon M3 Premium	0.05 mm	2.5 s	0.5 s	25 s	2	1	8 mm	6 mm/s	6 mm/s
Photon M3 Max	0.05 mm	2 s	2.5 s	35 s	6	1	8 mm	3 mm/s	4 mm/s
Photon M3 Plus	0.05 mm	2 s	0.1 s	23 s	3	1	8 mm	2 mm/s	3 mm/s
Photon M3	0.05 mm	2 s	0.5 s	23 s	4	1	6 mm	3 mm/s	4 mm/s
Photon D2	0.05 mm	2.5 s	1 s	28 s	5	16	5 mm	2 mm/s	3 mm/s
Photon Ultra	0.05 mm	2 s	1 s	35 s	4	4	6 mm	5 mm/s	2 mm/s
Photon Mono X 6K	0.05 mm	2.5 s	0.5 s	40 s	8	1	8 mm	2 mm/s	3 mm/s
Photon Mono 4K	0.05 mm	2 s	0.5 s	40 s	6	1	6 mm	4 mm/s	6 mm/s
Photon Mono X	0.05 mm	2 s	0.5 s	30 s	8	1	8 mm	4 mm/s	4 mm/s
Photon Mono	0.05 mm	2.5 s	0.5 s	40 s	6	1	6 mm	4 mm/s	6 mm/s

Plant-Based UV Resin 2.0 Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Max	0.05 mm	2 s	0.5 s	30 s	5	8 mm	6 mm/s	6 mm/s
Photon Mono M7 Pro	0.05 mm	2 s	0.5 s	25 s	4	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	2.5 s	1 s	35 s	4	8 mm	6 mm/s	6 mm/s
Photon Mono 4 Ultra	0.05 mm	2.6 s	1 s	30 s	5	5 mm	8 mm/s	8 mm/s
Photon Mono 4	0.05 mm	2.8 s	1 s	30 s	5	6 mm	4 mm/s	6 mm/s
Photon Mono M5s Pro	0.05 mm	3.6 s	0.5 s	30 s	5	8 mm	6 mm/s	6 mm/s
Photon Mono M5s	0.05 mm	2.8 s	0.5 s	25 s	5	8 mm	5 mm/s	6 mm/s
Photon Mono M5	0.05 mm	2.8 s	0.5 s	25 s	5	8 mm	5 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	2.5 s	0.5 s	20 s	5	8 mm	3 mm/s	4 mm/s
Photon M3 Premium	0.05 mm	2.5 s	0.5 s	25 s	4	8 mm	6 mm/s	6 mm/s
Photon M3 Max	0.05 mm	3 s	2.5 s	35 s	6	10 mm	2 mm/s	3 mm/s
Photon M3 Plus	0.05 mm	1.5 s	0.5 s	23 s	4	6 mm	6 mm/s	6 mm/s
Photon M3	0.05 mm	2 s	0.5 s	23 s	4	6 mm	3 mm/s	4 mm/s
Photon Mono 2	0.05 mm	2.5 s	1 s	25 s	5	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	2.5 s	0.5 s	20 s	5	8 mm	2 mm/s	3 mm/s
Photon D2	0.05 mm	2.5 s	1 s	28 s	5	5 mm	2 mm/s	3 mm/s

Tough Resin Ultra Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Pro	0.05 mm	2 s	2 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	2.2 s	1 s	25 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s Pro	0.05 mm	3.6 s	1 s	30 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s	0.1 mm	3 s	1 s	25 s	6	1	5 mm	20 mm/s	20 mm/s
Photon Mono M5s	0.05 mm	2.8 s	1 s	25 s	5	1	8 mm	5 mm/s	6 mm/s
Photon Mono M5	0.05 mm	2.8 s	1 s	25 s	5	1	8 mm	5 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	2.5 s	1 s	20 s	5	1	8 mm	3 mm/s	4 mm/s
Photon Mono X 6K	0.05 mm	2 s	1 s	28 s	6	1	8 mm	2 mm/s	3 mm/s
Photon M3 Max	0.05 mm	3 s	2 s	35 s	6	1	10 mm	2 mm/s	3 mm/s
Photon M3 Premium	0.05 mm	2.5 s	1 s	25 s	2	1	8 mm	6 mm/s	6 mm/s
Photon Mono 2	0.05 mm	2.5 s	1 s	25 s	5	1	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	2.5 s	1 s	20 s	5	1	8 mm	2 mm/s	3 mm/s
Photon Mono 4K	0.05 mm	2 s	1 s	40 s	6	1	6 mm	4 mm/s	3 mm/s

Bio Resin Ultra Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layers	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Pro	0.1 mm	2.2 s	2 s	35 s	4	1	4 mm	15 mm/s	15 mm/s
Photon Mono M7 Pro	0.05 mm	2 s	1 s	25 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono M7	0.05 mm	2.2 s	1 s	35 s	4	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s Pro	0.05 mm	3.2 s	1 s	35 s	6	1	8 mm	6 mm/s	6 mm/s
Photon Mono M5s Pro	0.1 mm	3.8 s	1 s	35 s	6	1	5 mm	20 mm/s	20 mm/s
Photon Mono M5s	0.05 mm	2.8 s	1 s	35 s	6	1	8 mm	5 mm/s	6 mm/s
Photon Mono M5s	0.1 mm	3 s	1 s	35 s	6	1	5 mm	20 mm/s	20 mm/s
Photon Mono M5	0.05 mm	2.8 s	1 s	35 s	6	1	8 mm	5 mm/s	6 mm/s
Photon Mono X6Ks	0.05 mm	2.5 s	1 s	20 s	6	1	8 mm	3 mm/s	4 mm/s
Photon Mono X 6K	0.05 mm	2 s	1 s	30 s	6	1	8 mm	2 mm/s	3 mm/s
Photon M3 Max	0.05 mm	3 s	2 s	35 s	6	1	10 mm	4 mm/s	4 mm/s
Photon M3 Premium	0.05 mm	2.5 s	1 s	35 s	5	1	8 mm	6 mm/s	6 mm/s
Photon Mono 2	0.05 mm	2.5 s	1 s	25 s	6	1	6 mm	4 mm/s	6 mm/s
Photon Mono X2	0.05 mm	2.5 s	1 s	25 s	5	1	8 mm	4 mm/s	4 mm/s
Photon Mono 4K	0.05 mm	2 s	1 s	40 s	6	1	6 mm	4 mm/s	6 mm/s

Explore More Materials

View all

PLA Basic
Black
White
Texture Grey
Brown
Bronze
+15
Regular price €16,19

Sale price €16,19 Regular price ~~€22,99~~
Unit price per
Flash Sale
--: --: --: --

- €5,60 Flash Sale
Standard Resin
Gray
White
Black
HD Gray
Clear
+8
Regular price €15,99

Sale price €15,99 Regular price ~~€21,59~~
Unit price per
PLA+ Filament
Black
Texture Gray
White
Green Flash
Orange
+16
Regular price €17,09

Sale price €17,09 Regular price ~~€29,99~~
Unit price per
ABS-Like Resin Pro 2
Black
White
Gray
HD Gray
Clear
+8
Regular price €24,99

Sale price €24,99 Regular price ~~€38,99~~
Unit price per
PLA Basic Refill
Black
Texture Grey
White
Red
Pink
+5
Regular price €14,49

Sale price €14,49 Regular price ~~€19,99~~
Unit price per
PLA High Speed
Gray
Black
White
Orange
Blue
+5
Regular price €17,09

Sale price €17,09 Regular price ~~€27,99~~
Unit price per
Water-Wash Resin 2.0
Gray
HD Gray
White
Black
Clear
+6
Regular price €24,29

Sale price €24,29 Regular price ~~€35,99~~
Unit price per
PETG
Texture Grey
White
Black
Orange
Purple
+15
Regular price €15,29

Sale price €15,29 Regular price ~~€24,99~~
Unit price per
Flash Sale
--: --: --: --

- €7 Flash Sale
ABS Filament
Milky White
Gray
Black
Regular price €15,99

Sale price €15,99 Regular price ~~€22,99~~
Unit price per
Flash Sale
--: --: --: --

- €15,40 Flash Sale
Tough Resin Ultra
Gray
Black
White
Clear
Regular price €25,99

Sale price €25,99 Regular price ~~€41,39~~
Unit price per
PLA Special
Peach Pink
Tropical Turquoise
Interstellar Violet
Spring Leaf
Regular price €16,19

Sale price €16,19 Regular price ~~€29,99~~
Unit price per
Flash Sale
--: --: --: --

- €13 Flash Sale
Tough Resin 2.0
Gray
Black
White
Cool Gray
Clear
+1
Regular price €22,99

Sale price €22,99 Regular price ~~€35,99~~
Unit price per
Standard Resin V2
Black
White
Gray
HD Gray
Clear
+6
Regular price €22,59

Sale price €22,59 Regular price ~~€34,99~~
Unit price per
PETG Translucent
Clear
Translucent Blue
Translucent Grey
Translucent Pink
Translucent Olive
+4
Regular price €15,29

Sale price €15,29 Regular price ~~€24,99~~
Unit price per

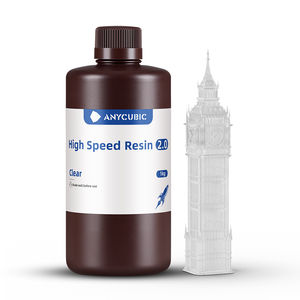

High Speed Resin 2.0
Gray
Black
White
Clear
Regular price €32,39

Sale price €32,39 Regular price ~~€45,99~~
Unit price per
Flash Sale
--: --: --: --

- €13 Flash Sale
High Clear Resin
Clear
Regular price €22,99

Sale price €22,99 Regular price ~~€35,99~~
Unit price per
