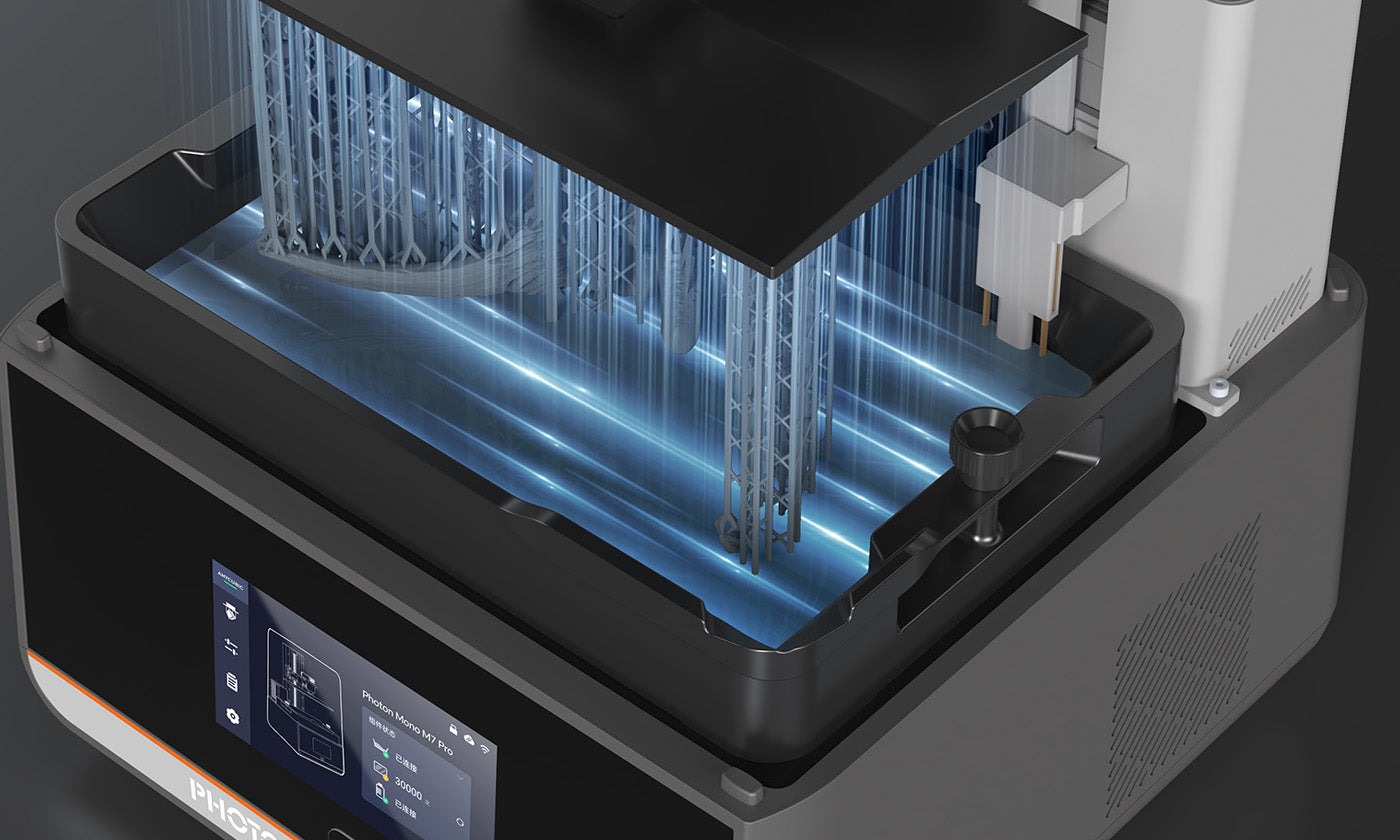

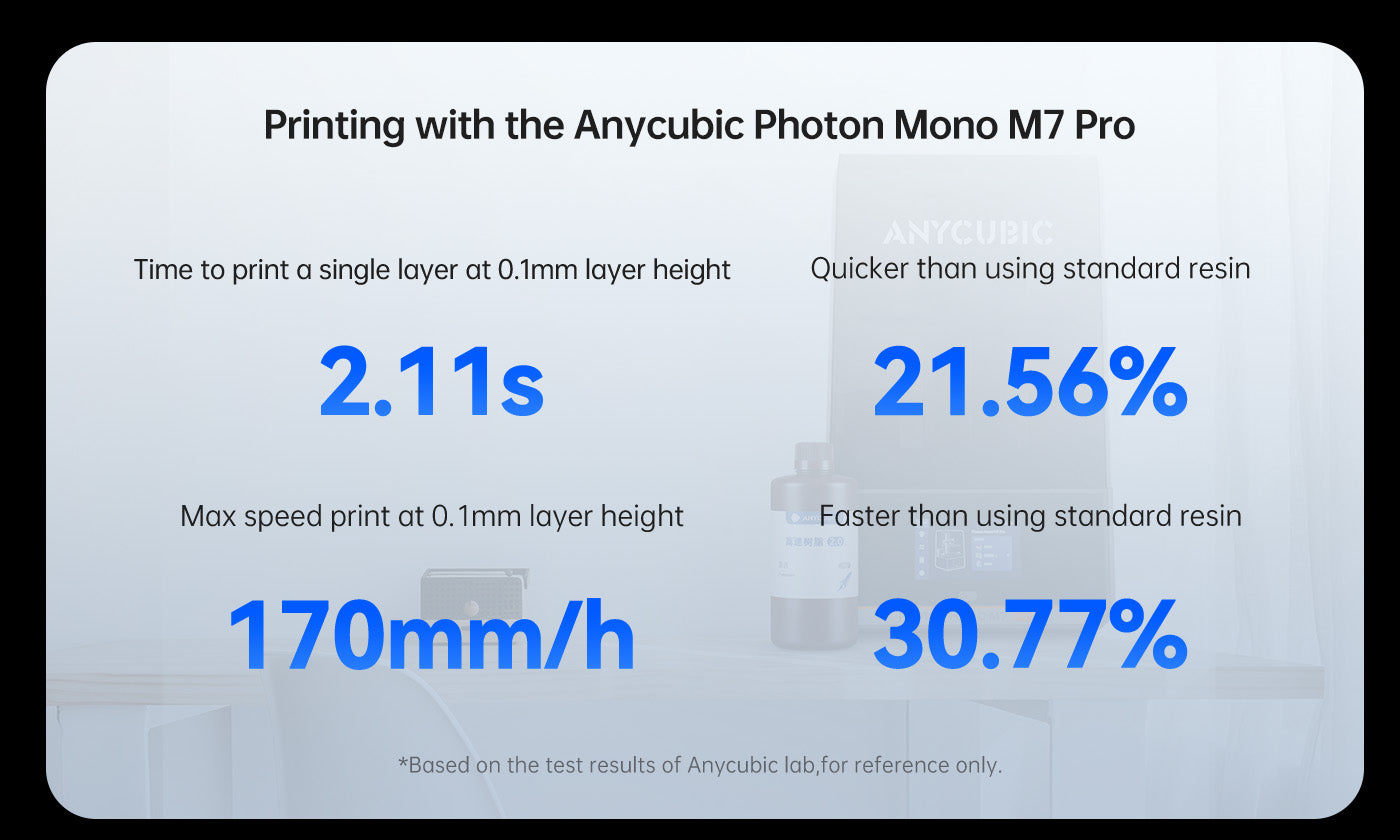

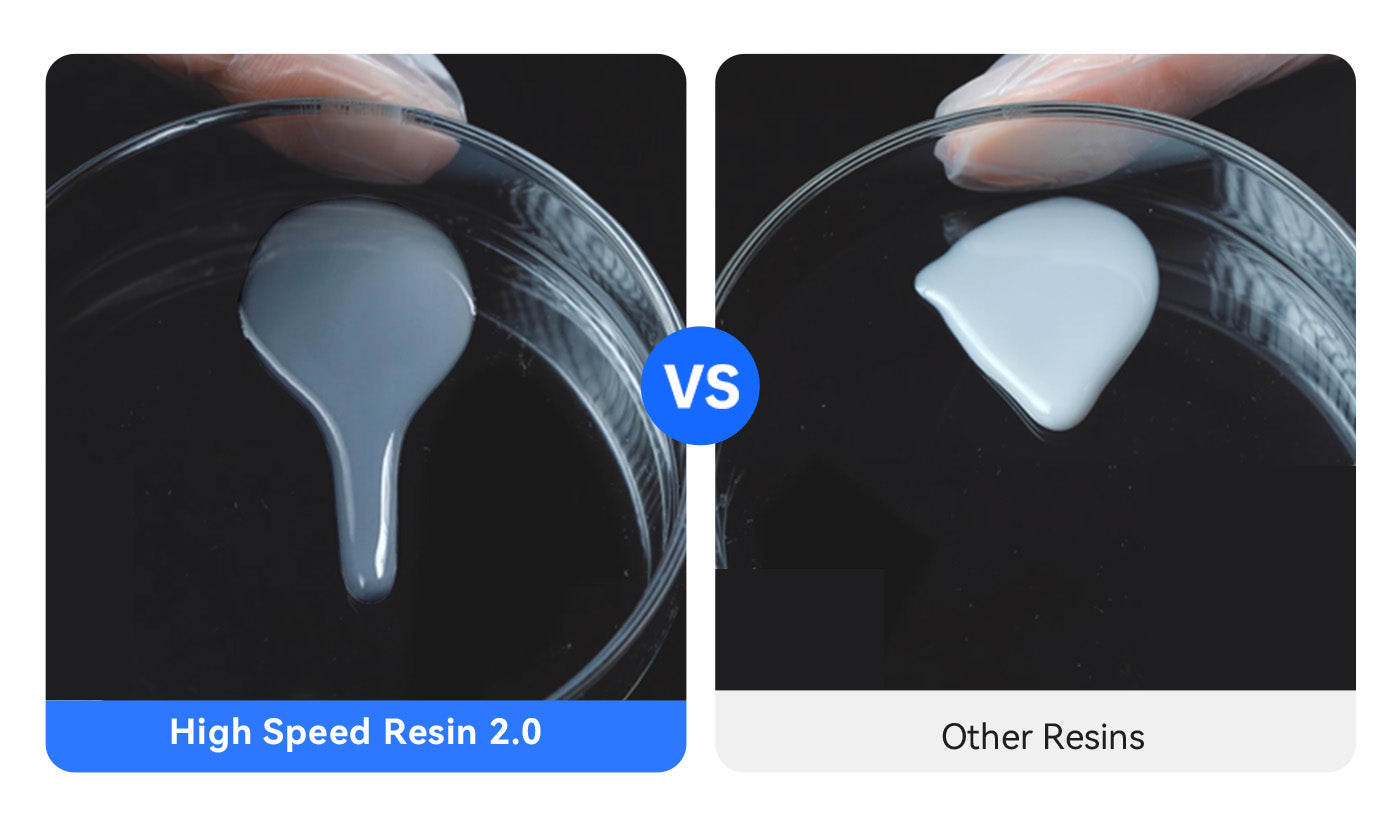

Anycubic High Speed Resin 2.0 features a 50% reduction in viscosity compared to standard resins. Its lower viscosity enhances flowability, effectively dissipating heat to prevent localized overheating while enabling rapid resin backflow. This significantly boosts printing speed, particularly saving considerable time when printing large-scale models.

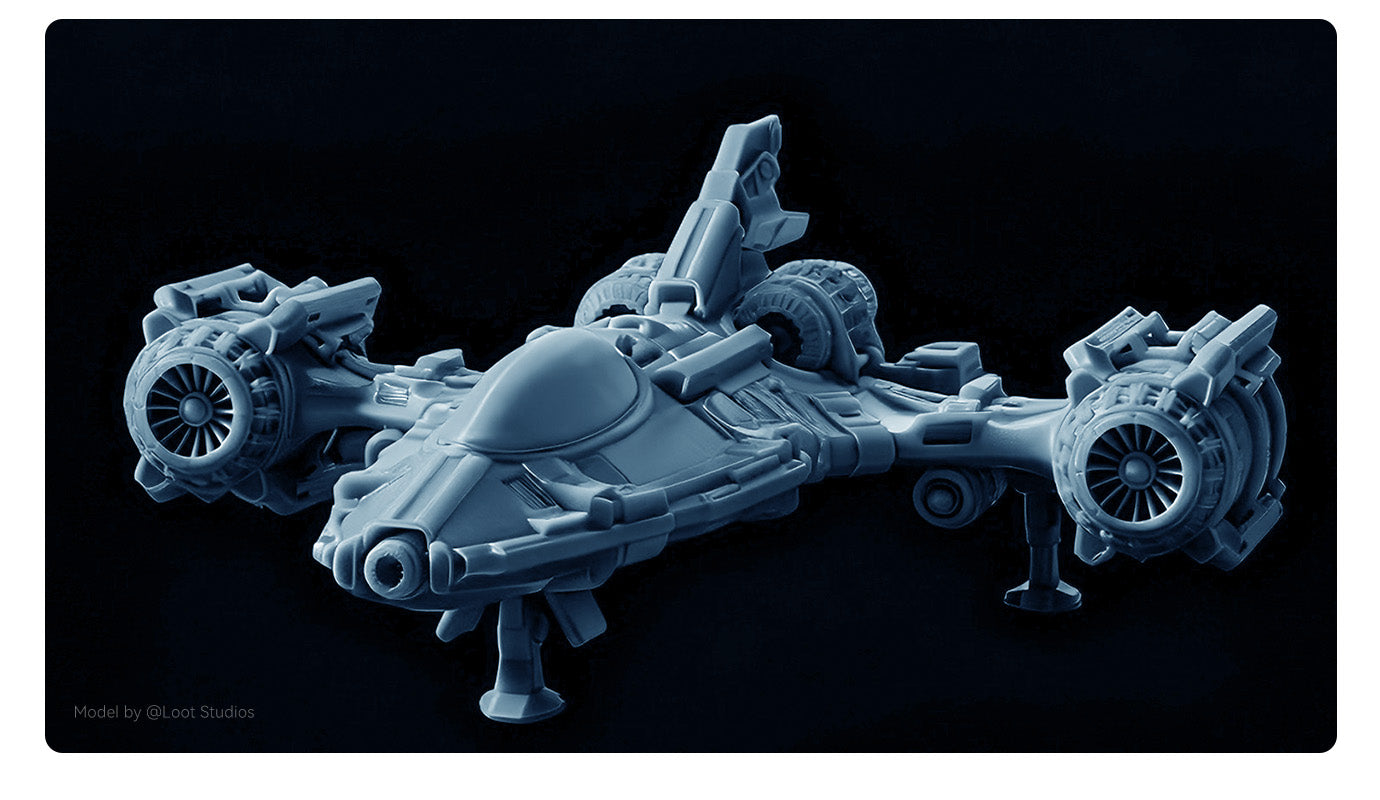

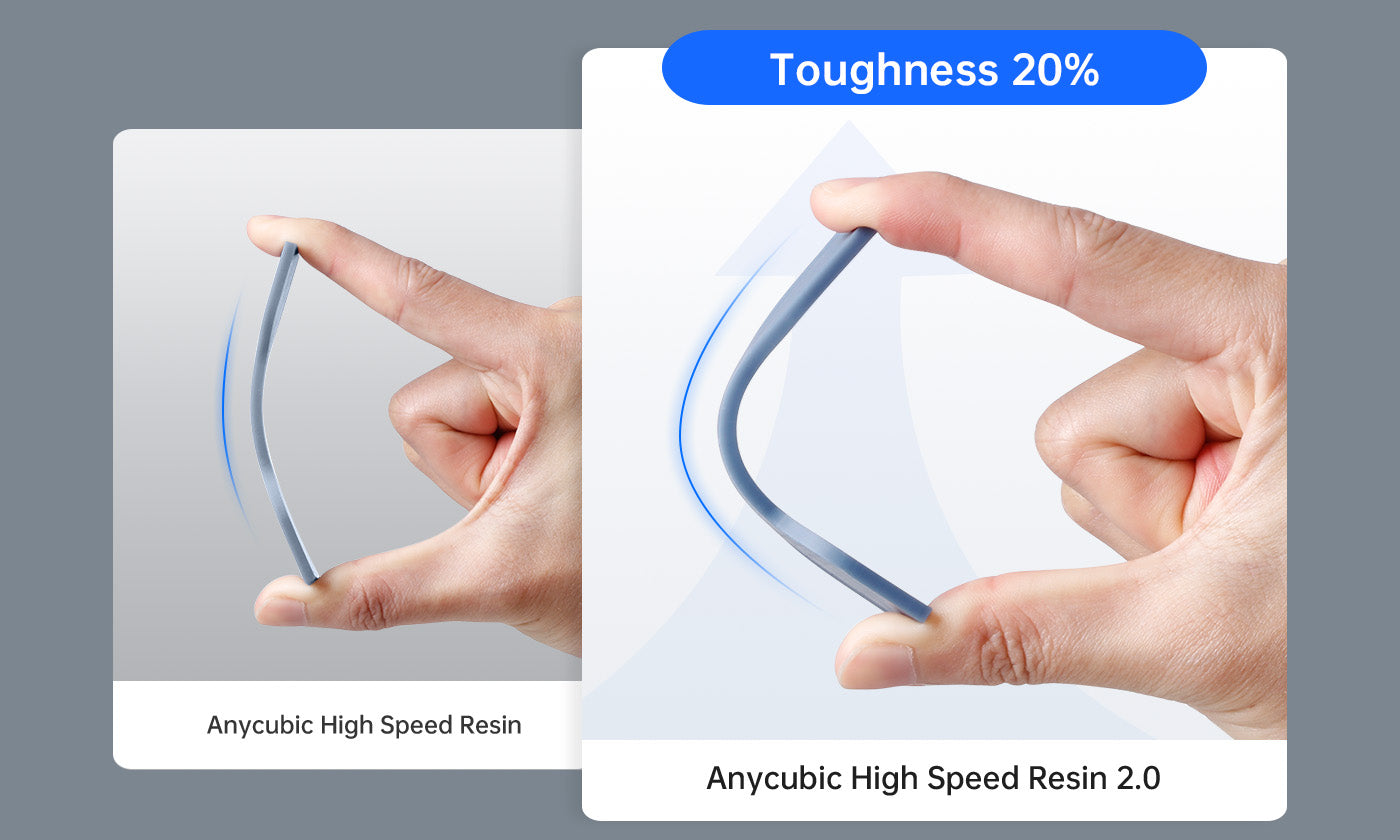

Anycubic High-Speed Resin 2.0, with its optimized formulation, delivers a 20% increase in toughness compared to the previous generation high-speed resin. This significantly enhances impact resistance while ensuring outstanding molding results that effectively prevent cracking and breakage.

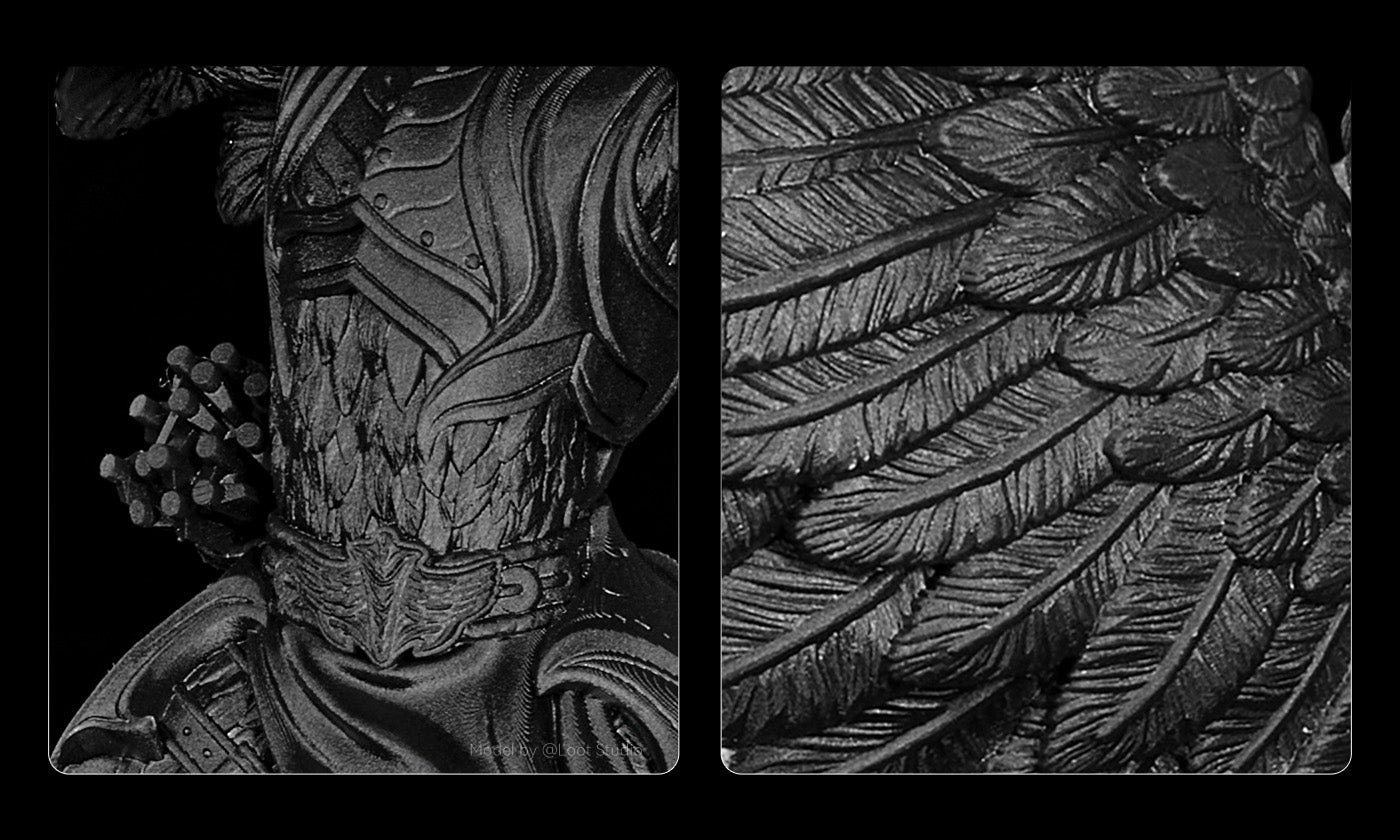

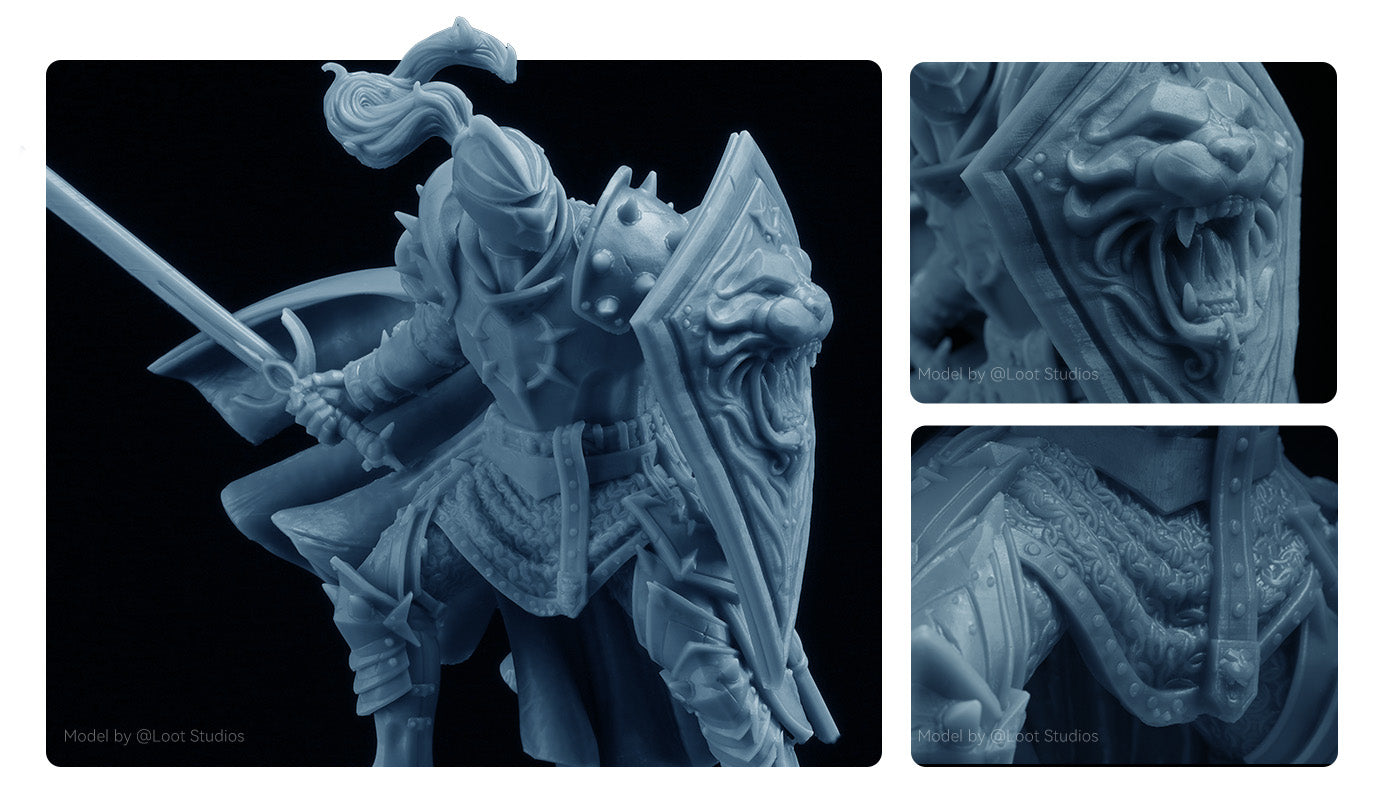

Anycubic High Speed Resin 2.0 achieves rapid and precise curing with its low shrinkage rate and high fluidity, making it especially suitable for batch production and large format printing. Additionally, it maintains dimensional accuracy during the curing process and delivers models with clear surface details and a long-lasting texture.

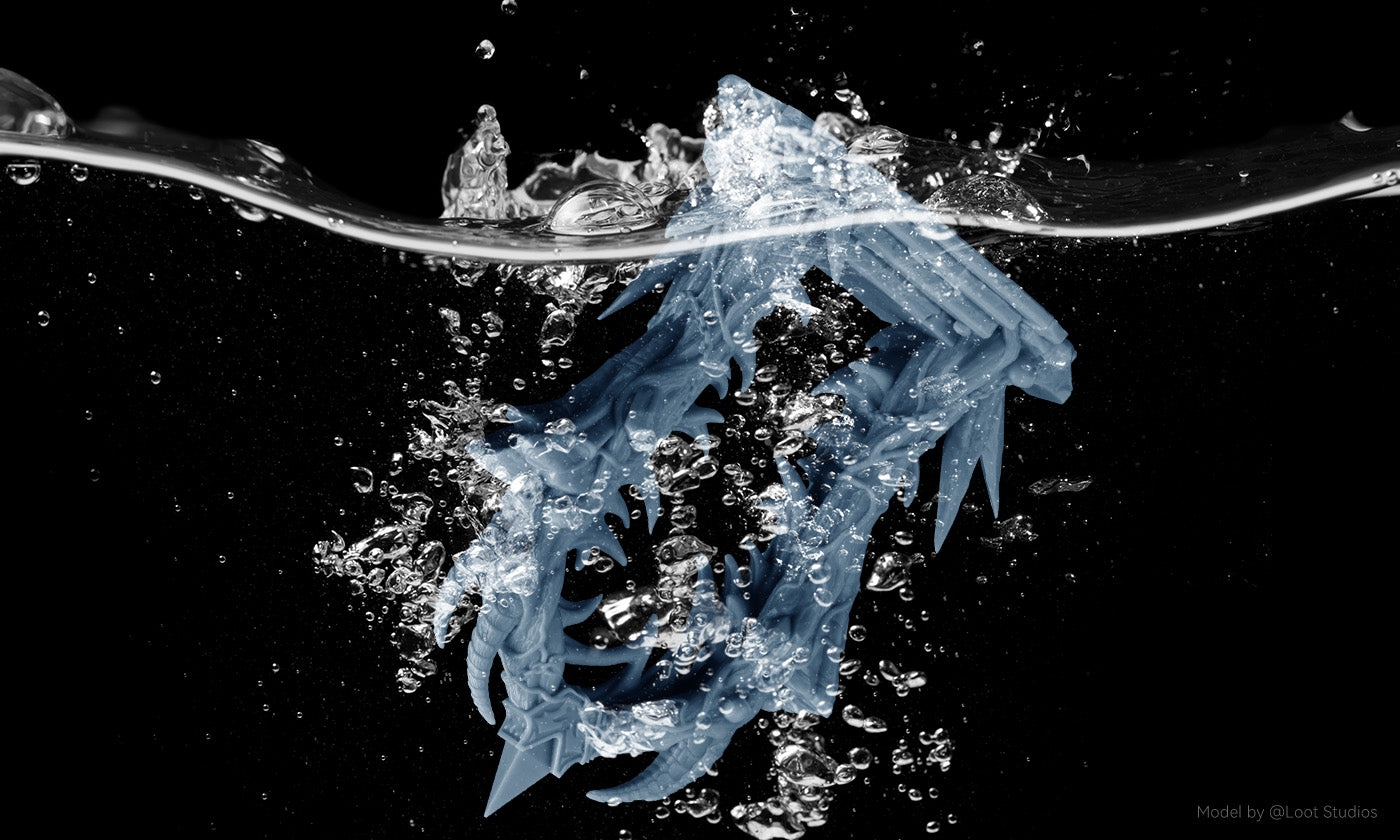

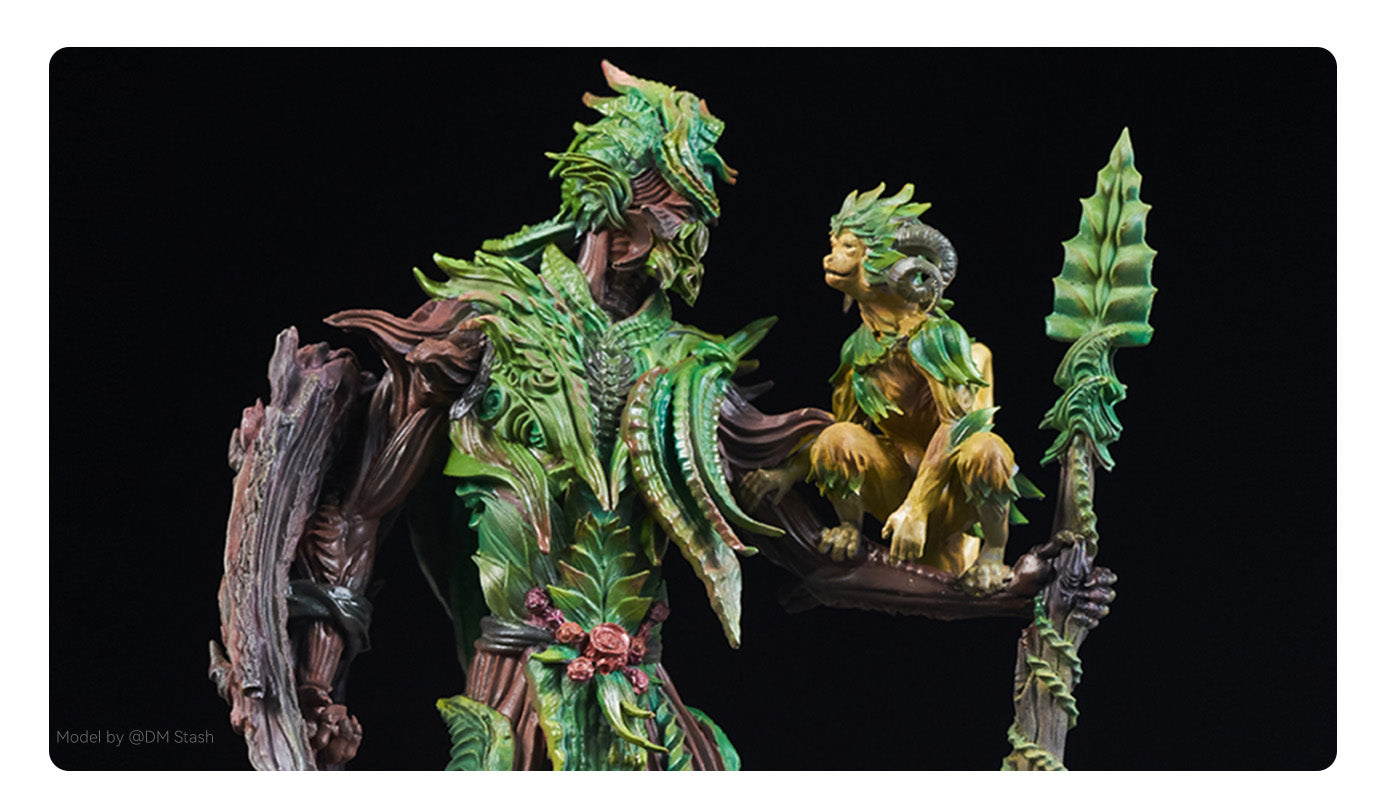

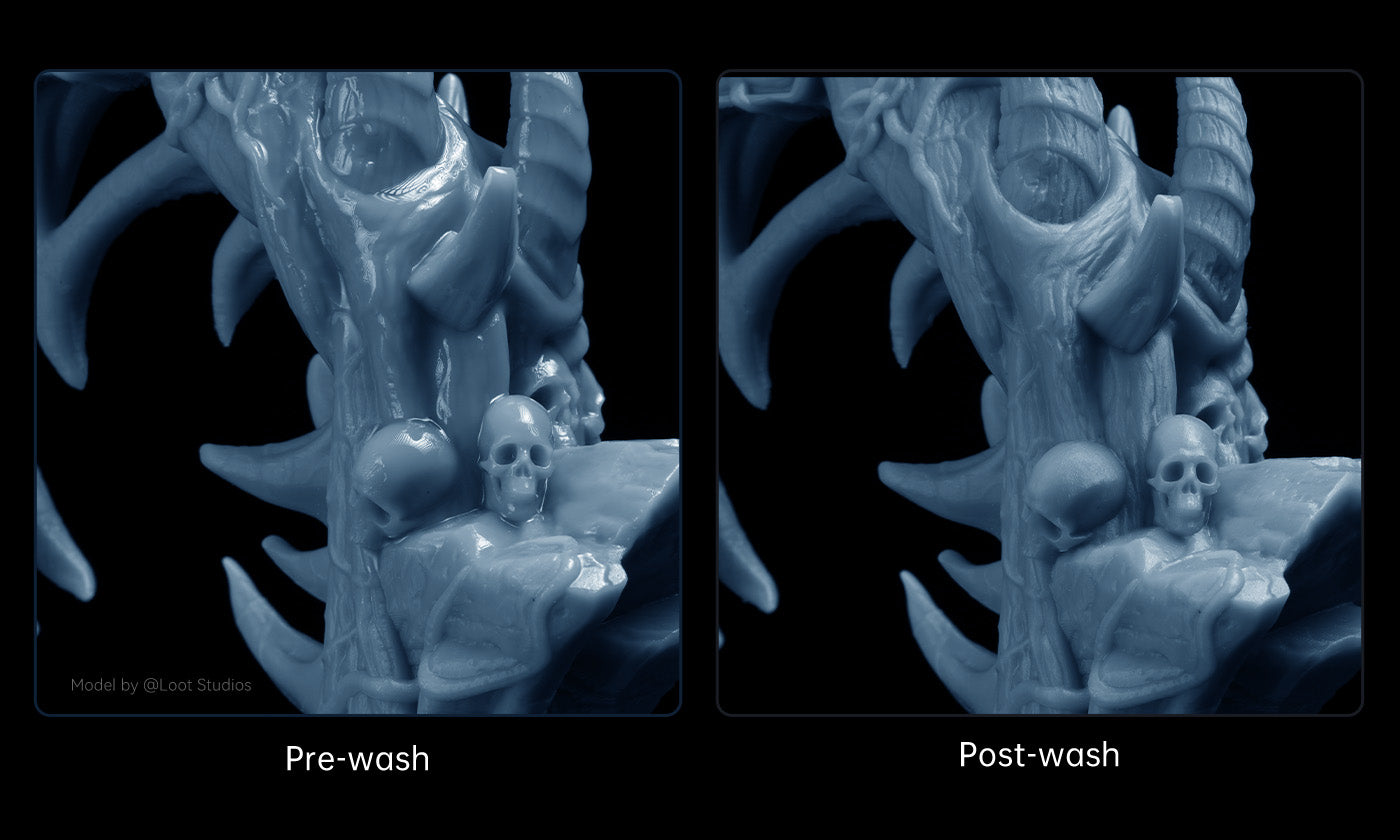

Low viscosity enables effortless washing with alcohol, leaves the surface free of residue, and ease of post-process coloring.
Anycubic resin features a specially engineered low-odor formulation, delivering zero irritation for a pleasant, comfortable printing experience.
It is compatible with all LCD/DLP printers that use 405nm UV light curing technology and works best with Anycubic LCD printers.
| Printer Model | Layer Thickness | Exposure Time | Light-Off Time | Bottom Exposure Time | Bottom Layers | Anti-Aliasing Level | Z Lift Distance | Z Lift Speed | Z Retract Speed |
| Photon P1 | 0.05 mm | 1.5 s | 2 s | 15 s | 1 | 4 | 5 mm | 3 mm/s | 3 mm/s |
| Photon Mono M7 | 0.1 mm | 1.4 s | 0.5 s | 15 s | 5 | 1 | 4 mm | 15 mm/s | 15 mm/s |
| Photon Mono M7 Pro | 0.1 mm | 1.4 s | 0.5 s | 15 s | 5 | 1 | 4 mm | 15 mm/s | 15 mm/s |
| Photon Mono M7 Max | 0.1 mm | 1.8 s | 0.5 s | 30 s | 5 | 1 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono M5 | 0.1 mm | 2 s | 0.5 s | 25 s | 5 | 1 | 8 mm | 5 mm/s | 6 mm/s |
| Photon Mono M5s | 0.1 mm | 2.8 s | 0.5 s | 25 s | 5 | 1 | 8 mm | 5 mm/s | 6 mm/s |
| Photon Mono M5s Pro | 0.1 mm | 3.6 s | 0.5 s | 30 s | 5 | 1 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono 4 | 0.1 mm | 2.2 s | 1 s | 30 s | 5 | 1 | 6 mm | 4 mm/s | 6 mm/s |
| Photon Mono 4K | 0.1 mm | 2 s | 0.5 s | 25 s | 6 | 1 | 5 mm | 4 mm/s | 6 mm/s |
| Photon Mono 4 Ultra | 0.1 mm | 2 s | 1 s | 30 s | 5 | 1 | 5 mm | 8 mm/s | 8 mm/s |
| Photon Mono 2 | 0.1 mm | 2.5 s | 0.5 s | 18 s | 5 | 1 | 5 mm | 4 mm/s | 6 mm/s |
| Photon Mono X2 | 0.1 mm | 2.5 s | 0.5 s | 18 s | 5 | 1 | 6 mm | 2 mm/s | 6 mm/s |
| Photon Mono X 6K | 0.1 mm | 2 s | 0.5 s | 18 s | 6 | 1 | 6 mm | 4 mm/s | 6 mm/s |
| Photon Mono X6Ks | 0.1 mm | 2.5 s | 0.5 s | 15 s | 5 | 1 | 6 mm | 4 mm/s | 6 mm/s |
| ANYCUBIC Photon M3 Max | 0.1 mm | 2 s | 0.5 s | 18 s | 5 | 1 | 5 mm | 4 mm/s | 6 mm/s |
| ANYCUBIC Photon M3 Premium | 0.1 mm | 1.5 s | 0.5 s | 18 s | 5 | 1 | 6 mm | 6 mm/s | 6 mm/s |
1. Before using:
(1) Shake the liquid resin before use.
(2) Clean the resin vat and the build plate.
(3) Ensure the tank bottom remains highly transparent.
(4) Confirm the release film is undamaged.
(5) Verify correct print parameter settings.
(6) Recommended printing environment: 20-35 °C (to prevent temperature-related failures).
2. When using:
(1) Unscrew the bottle cap and remove the sealing film.
(2) Pour resin into the tank without exceeding the max fill line.
3. After printing:
Use the included tools for post-processing:
Scraper/Flush cutters/Tweezers/Gloves/≥95% IPA cleaning solution.
4. Post-processing steps:
(1) Remove models from the build plate using the scraper; remove the supports.
(2) Clean models in the Anycubic Wash & Cure machine for ~10 minutes (use ≥95% alcohol or cleaner).
(3) Dry models: Air-dry, blow-dry, or use a drying chamber (prevents water absorption/cracking).
(4) Secondary curing: Cure models for 3-5 minutes.
(5) Resin recycling: Filter through a 100-mesh sieve.
⚠️Additional Notes: Material properties may vary based on printing equipment, post-curing methods, or testing equipment.
For safety data/certifications (e.g., MSDS, REACH, RoHS, EAN, TDS), refer to product documentation.
