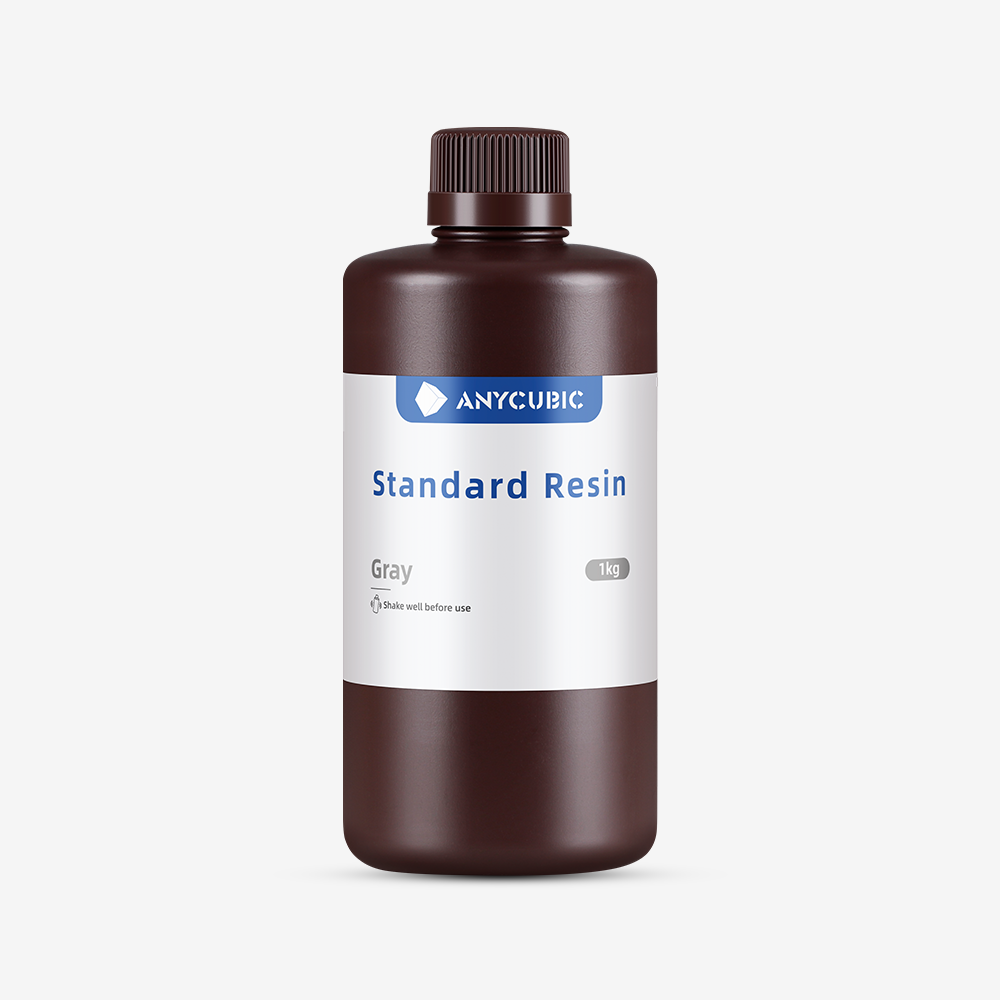

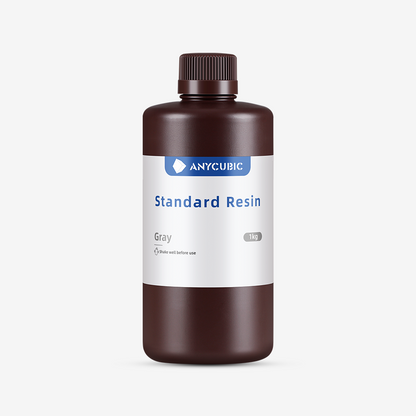

As the best-selling resin, Standard Resin delivers balanced performance in terms of printing success rate, stickiness with print bed, model details, printing precision, hardness, resilience, smell, fluidity and ease in cleaning.
Standard Resin can satisfy users' requirements regarding the material performance of general resin, as it delivers balanced performance in terms of stiffness, hardness, resilience and details.

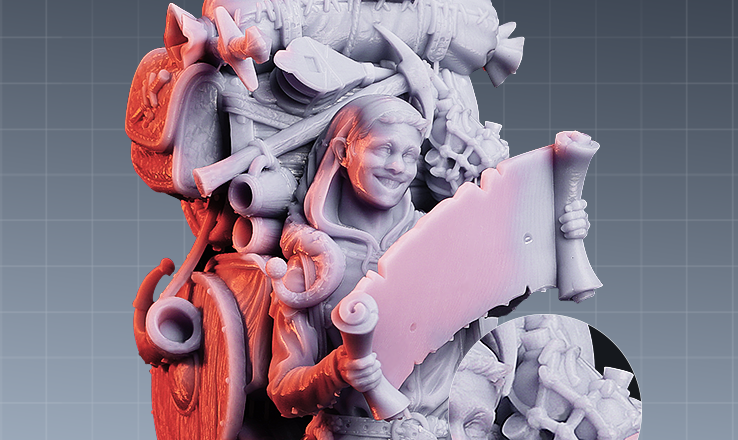

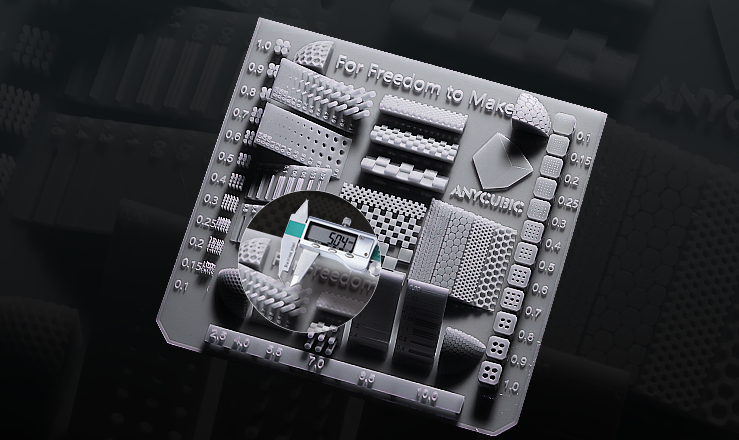

Molding precision is within +0.2mm. Based on energy uniformity of equipment, the molding precision can be controlled within ±0.1mm, so as to deliver good details, characteristic detail and sound hole effect.

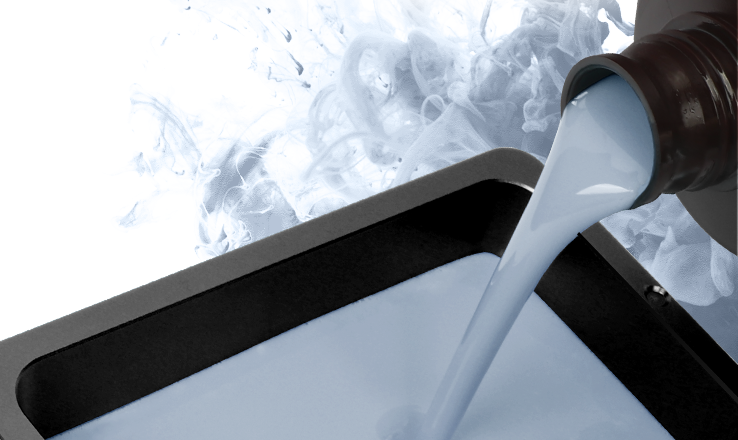

Good fluidity of resin shortens printing process and allows
faster molding. Along with the rise of monochrome screen,
molding speed for LCD equipment has increased significantly.

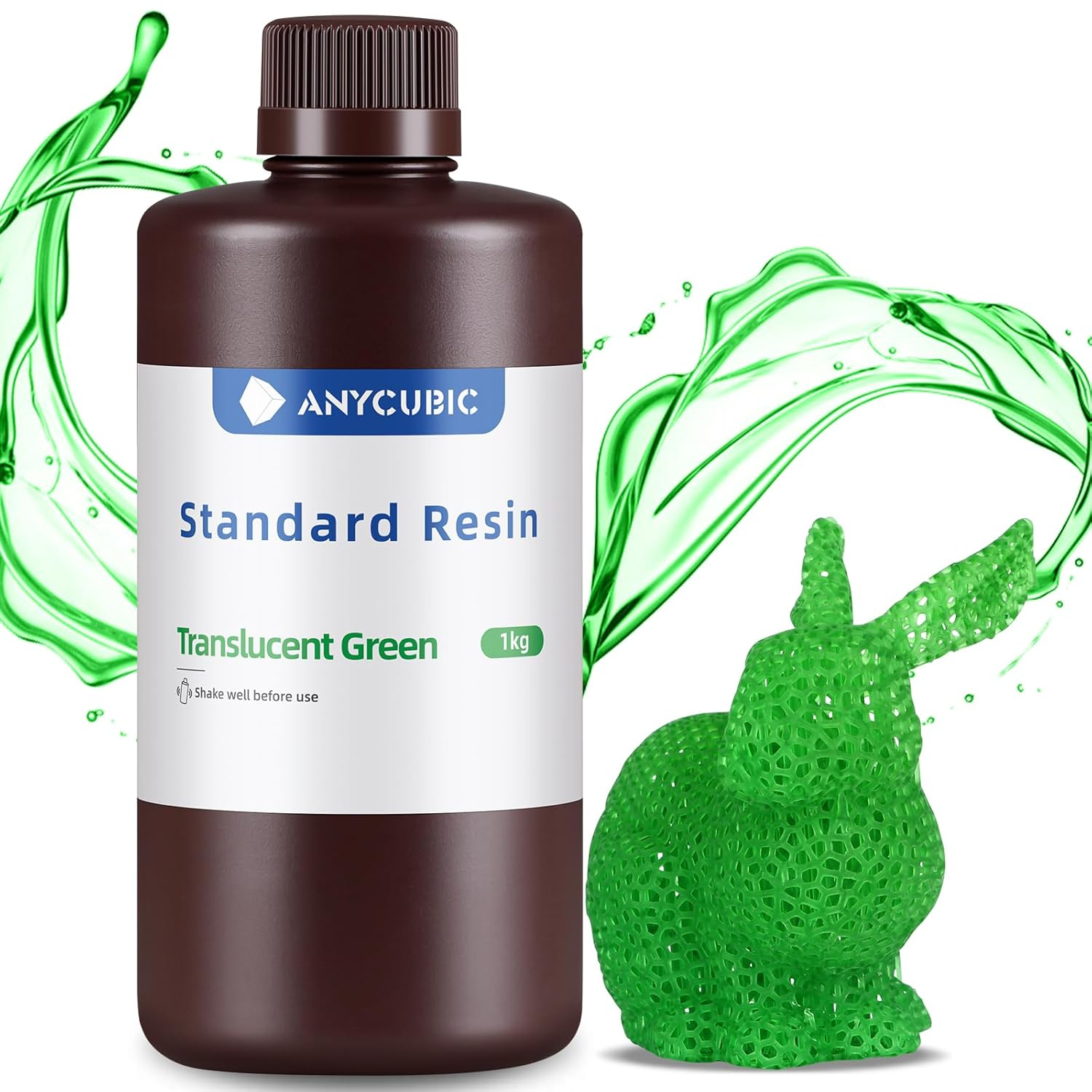

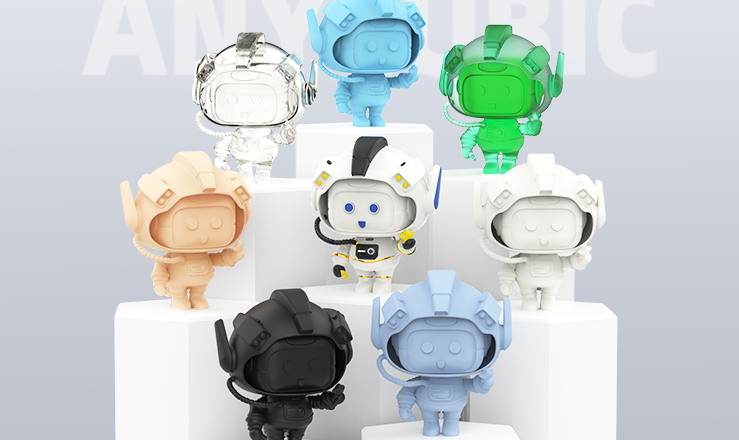

Including popular colors in the market, pure molding colors, and good late-stage coloring effect.

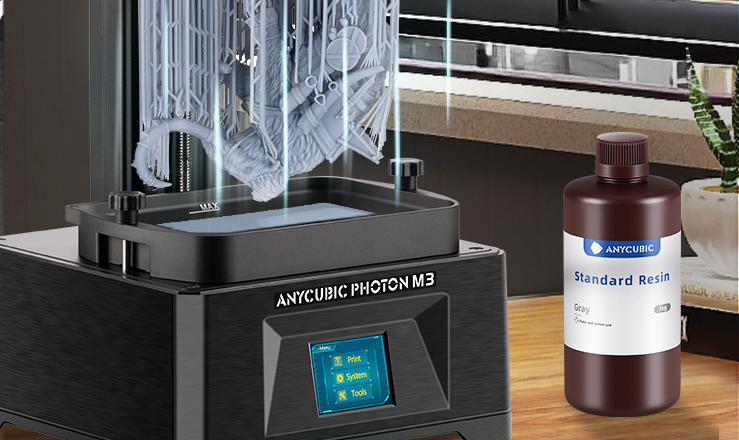

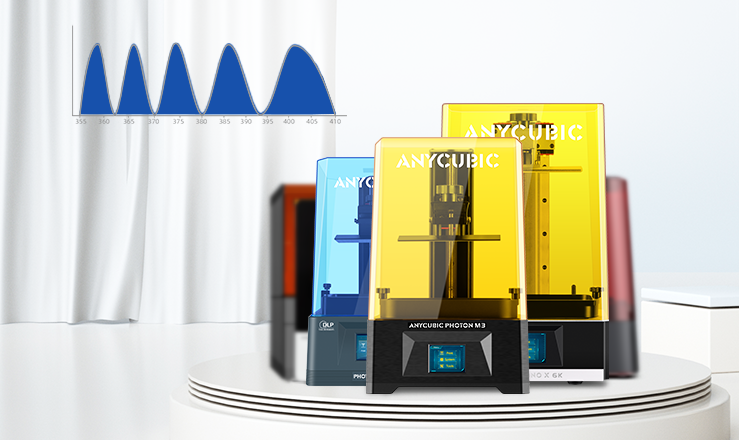

As a pioneer in global desktop LCD 3D printer and desktop DLP 3D printer, Anycubic has taken into account the compatibility with LCD and DLP technologies at the initial stage of the research and development of standard resin, making Anycubic standard resin compatible with mainstream LCD 3D printer and DLP 3D printer.
Printer Model | Layer Thickness | Exposure Time | Light-Off Time | Bottom Exposure Time | Bottom Layers | Anti-Aliasing Level | Z Lift Distance | Z Lift Speed | Z Retract Speed |
Photon Mono M7 Max | 0.05 mm | 2 s | 0.5 s | 30 s | 5 | 1 | 8 mm | 6 mm/s | 6 mm/s |
Photon Mono M7 Pro | 0.1 mm | 2.2 s | 0.5 s | 25 s | 3 | 1 | 4 mm | 15 mm/s | 15 mm/s |
Photon Mono M7 Pro | 0.05 mm | 2 s | 0.5 s | 25 s | 4 | 1 | 8 mm | 6 mm/s | 6 mm/s |
Photon Mono M7 | 0.05 mm | 2.2 s | 0.5 s | 25 s | 4 | 1 | 8 mm | 6 mm/s | 6 mm/s |
Photon Mono 4 Ultra | 0.05 mm | 2.6 s | 1 s | 30 s | 5 | 1 | 5 mm | 8 mm/s | 8 mm/s |
Photon Mono 4 | 0.05 mm | 2.8 s | 1 s | 30 s | 5 | 1 | 6 mm | 4 mm/s | 6 mm/s |
Photon Mono M5s Pro | 0.05 mm | 3.6 s | 0.5 s | 30 s | 5 | 1 | 8 mm | 6 mm/s | 6 mm/s |
Photon Mono M5s | 0.05 mm | 2.8 s | 0.5 s | 25 s | 5 | 1 | 5 mm | 5 mm/s | 6 mm/s |
Photon Mono M5 | 0.05 mm | 2.8 s | 0.5 s | 25 s | 5 | 1 | 8 mm | 5 mm/s | 6 mm/s |
Photon Mono X6Ks | 0.05 mm | 2.5 s | 0.5 s | 20 s | 5 | 1 | 8 mm | 3 mm/s | 4 mm/s |
Photon Mono X 6K | 0.05 mm | 2 s | 0.5 s | 23 s | 6 | 1 | 8 mm | 2 mm/s | 3 mm/s |
Photon M3 Max | 0.05 mm | 3 s | 2.5 s | 50 s | 6 | 1 | 10 mm | 2 mm/s | 3 mm/s |
Photon M3 Premium | 0.05 mm | 2.5 s | 0.5 s | 25 s | 4 | 1 | 8 mm | 6 mm/s | 6 mm/s |
Photon Mono 2 | 0.05 mm | 2.5 s | 1 s | 25 s | 5 | 1 | 6 mm | 4 mm/s | 6 mm/s |
Photon Mono X2 | 0.05 mm | 2.5 s | 0.5 s | 20 s | 5 | 1 | 8 mm | 2 mm/s | 3 mm/s |
Photon Mono 4K | 0.05 mm | 2 s | 0.5 s | 40 s | 6 | 1 | 6 mm | 4 mm/s | 6 mm/s |
(1) Before use:
Shake the liquid resin before use;
Clean the resin tank and the molding platform to keep the bottom of the resin tank in good condition for light transmission.
(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements;
Select the correct print parameters and settings for printing.
(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonal pliers, tweezers, containers, gloves; ethanol(≥95%), lactate or isopropyl alcohol cleaning solution;
(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade;
B. Submerge the model in the cleaning solution, rinsed or ultrasonically washed, then take out and drained; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C. Proper processing, such as removing support, polishing, coloring, etc.
